HAAS - SL-40DE-TUR-HAA-2008-00001

Name: HAAS SL-40
Brand: HAAS
SKU: DE-TUR-HAA-2008-00001
Price: 35000 EUR
Availability: InStock

35,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

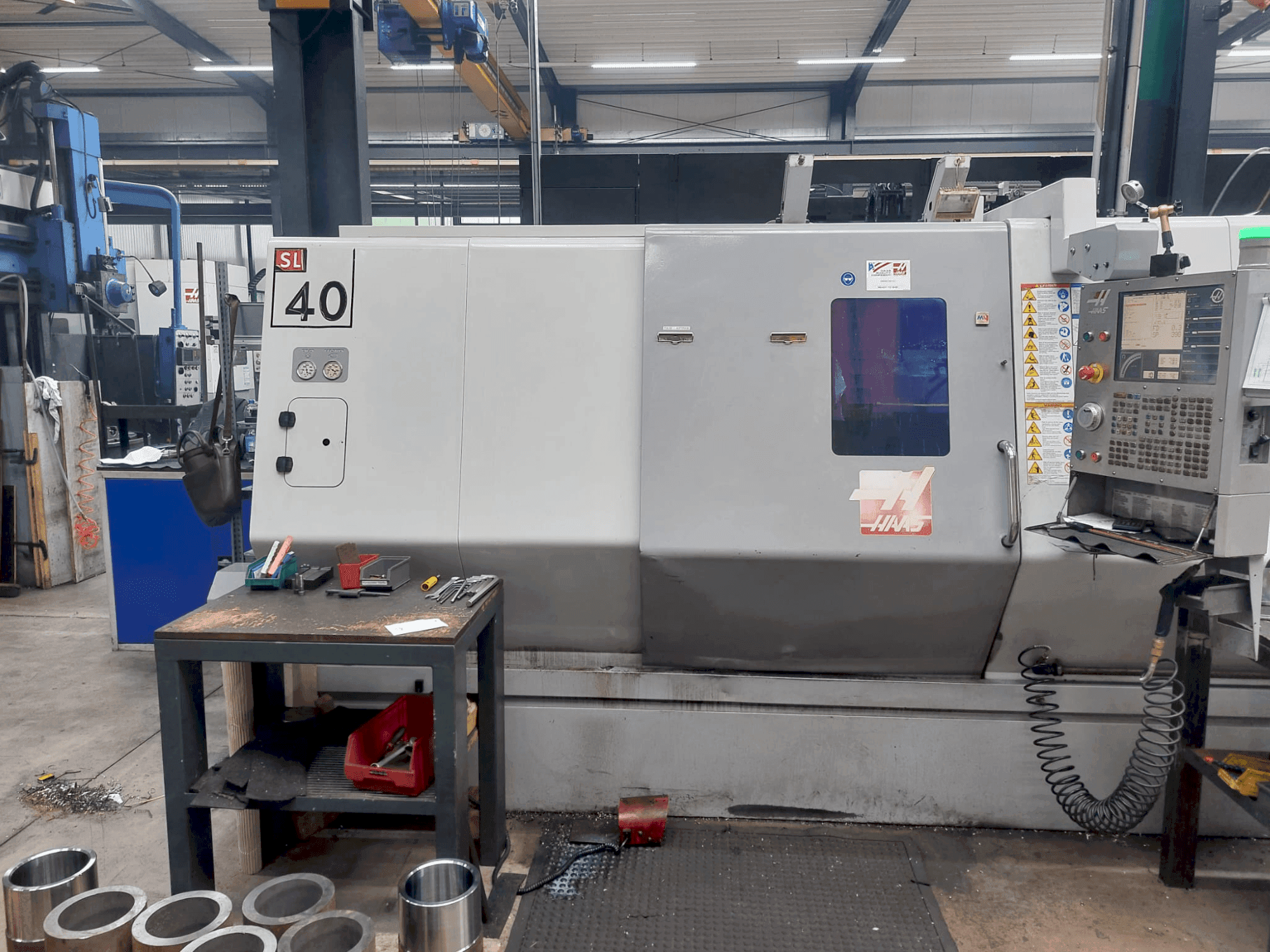

➤ Used HAAS SL-40 Horizontal Lathe For Sale | gindumac.com

Show in original language

This 3-axis HAAS SL-40 was manufactured in 2008. A robust horizontal turning machine, it features a maximum turning dimension of 635 x 1,117 mm and a swing diameter of 1,016 mm. Equipped with a powerful 29.8 kW spindle, it offers a speed range up to 2,400 RPM and a 10-station turret. Additional highlights include a programmable hydraulic tailstock and a chip conveyor. Ideal for precision machining, the HAAS SL-40 machine we have for sale. Contact us for further details.

Overview

brand: HAAS
year: 2008
MODEL: SL-40
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - HAAS SL-40

Main drive

Number of spindles: 1
Spindle speed range: 2400 rpm 1/MIN
Spindle motor power: 29.8 kW
Tool taper: A2-8
Number of axis: 3

Workpiece

Workpiece drm over bed: 1016 mm
Workpiece drm: 635 mm
Workpiece x: 1117 mm

Media

Chip conveyor: Yes

Additional Equipment

- Internal transformer
- Export packaging
- Tool measuring arm
- Macro programming
- Visual Quick Code
- Synchronized thread cutting
- Spindle orientation
- High-intensity lighting (two external halogen lamps with door switch)
- Chip conveyor system (belt type) for SL-40H
- IPS-L Inductive Programming for SLxx lathes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum turning dimensions: 635 x 1117 mm
- - Gearbox: 2-stage
- - Chuck diameter: 380 mm
- - Memory: 1 mb
- - Tailstock: programmable hydraulic
- - Storage device: 3. 5" floppy disk drive
- - Turret type: botkit40mhe (metric)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
