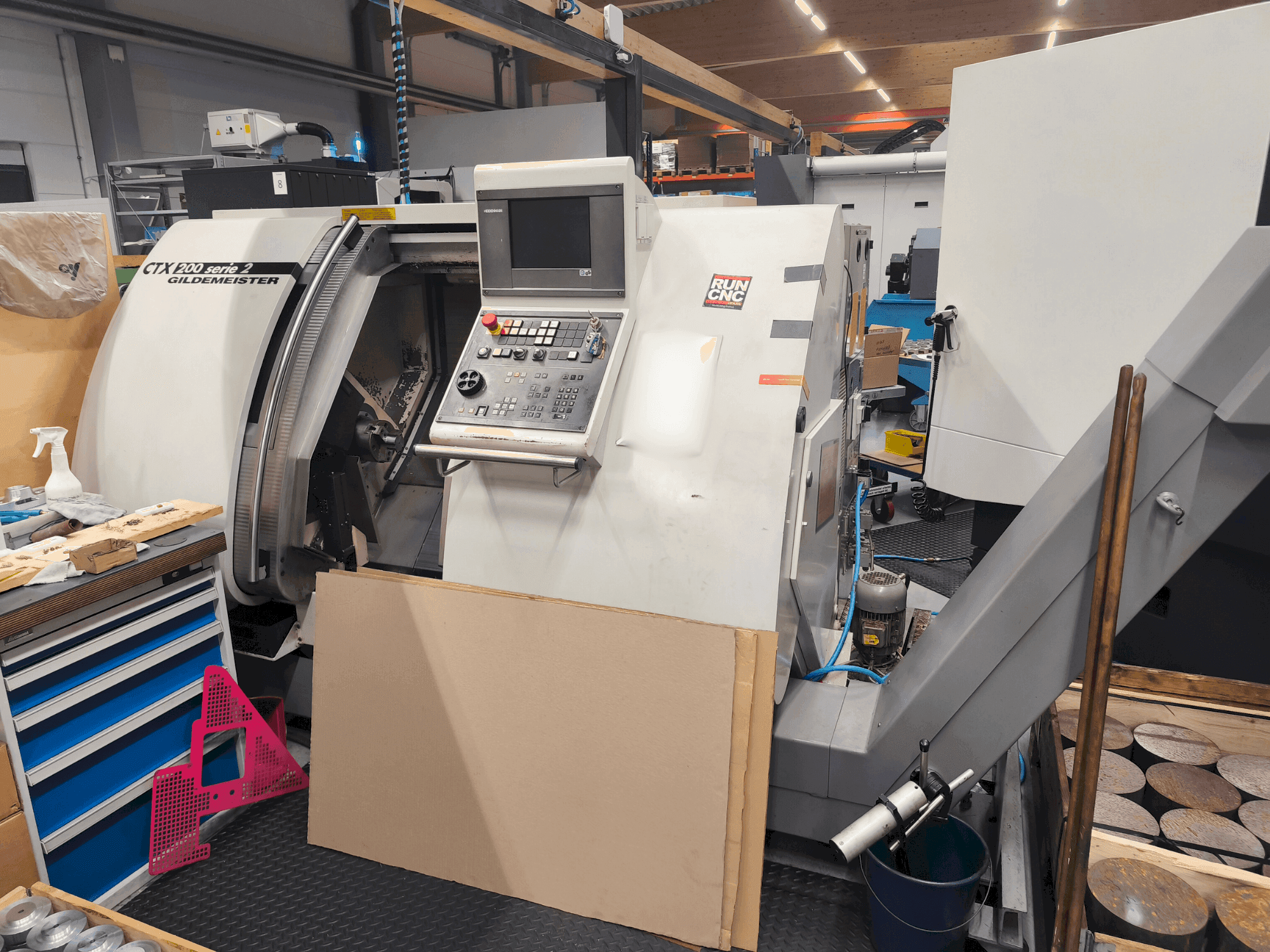

Front view of Gildemeister CTX 200 Serie 2  machine

Gildemeister - CTX 200 Serie 2DE-TUR-GIL-2001-00005

12,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Gildemeister CTX 200 Serie 2 was manufactured in 2001. A horizontal turning machine, it's ideal for those looking to enhance their machining capabilities. Contact us for more information.

Overview

  • brand: Gildemeister
  • year: 2001
  • MODEL: CTX 200 Serie 2
  • production hours: 28890
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • availability: Immediately

Technical Information - Gildemeister CTX 200 Serie 2

General Data

  • Measurements width: 1651 MM
  • Measurements depth: 2800 MM
  • Measurements height: 1777 MM
  • Machine weight: 2900 KG

Main drive

  • Spindle speed range: 25-5000 1/MIN

Movement

  • X-AXIS Feed Force: 2 kN
  • X-AXIS Rapid traverse: 20 m/min
  • Z-AXIS Feed Force: 3 kN
  • Z-AXIS Rapid traverse: 30 m/min

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Coolant pump
    • - Tailstock
    • - Includes 3 jaw chucks and various holders for turning tools

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Circumferential Ø over bed guide cover: 440 mm
        • - Circumferential Ø over face guide cover: 210 mm
        • - Face path: 160 mm
        • - Longitudinal travel: 350 mm
        • - Spindle head Ø: 120 mm
        • - Spindle head Ø in front bearing: 85 mm
        • - Spindle bore: 56 mm
        • - Chuck Ø: 140 mm
        • - Drive power 100% ed: 9 kw
        • - Max. Torque: 84 nm
      • Qualitative Machine Benefits:
        • - Ball screw x/z: 25x10 mm
        • - Universal disc-type turret (automatic indexing with directional logic and fixed tool pull)
        • - Tool holders: din 69880 20mm
        • - Max. Driven tools: 12
        • - Max. Clamping diameter of the driven tools: 13 mm
        • - Tailstock diameter in the front area: 80 mm
        • - Tailstock travel: 350 mm
        • - Tailstock reception: mk 3
        • - Tailstock force min. /max. : 3 kn
        • - Has no driven tools

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
