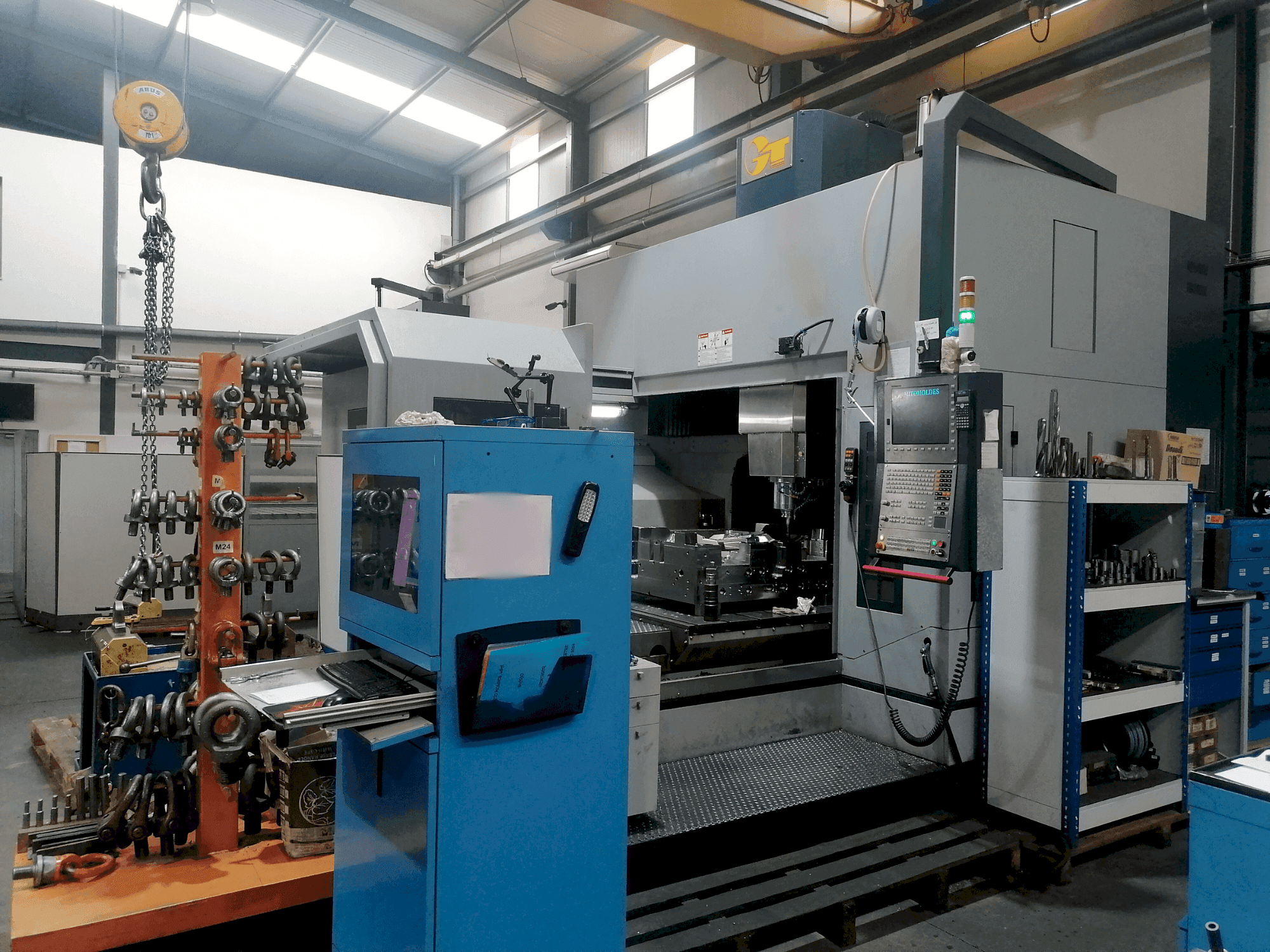

This 3-axis GENTIGER GT1614V vertical machining centre was manufactured in 2017. It features a robust table area of 1,500 x 1,600 mm, a maximum spindle speed of 10,000 rpm, and a direct drive spindle motor rated at 22 kW. The machine supports a maximum load of 5,000 kg and includes a 20-tool ATC capacity. Ideal for heavy-duty machining, the GENTIGER GT1614V represents a significant asset for any production line. Contact us for further details regarding this vertical machining centre.
Overview
- brand: GENTIGER
- year: 2017
- MODEL: GT1614V
- application type: Milling
- Location: Portugal
- machine type: Machining centers (universal)
- availability: Immediately
- control unit brand: siemens
Technical Information - GENTIGER GT1614V
General Data
- Measurements width: 4285 MM
- Measurements depth: 4665 MM
- Measurements height: 3830 MM
- Machine weight: 25200 KG
Control Unit
- Brand: siemens
Main drive
- Spindle speed range: 10,000 1/MIN
- Spindle motor power: 22 kw
- Tool taper: BT / BBT-50
Movement
- X-AXIS Movement: 1400 mm
- X-AXIS Working Feed: 20 m/min
- X-AXIS Rapid traverse: 20 m/min
- Y-AXIS Movement: 1600 mm
- Y-AXIS Working Feed: 18 m/min
- Y-AXIS Rapid traverse: 18 m/min
- Z-AXIS Movement: 700 mm
- Z-AXIS Working Feed: 20 m/min
- Z-AXIS Rapid traverse: 20 m/min
Workpiece
- Workpiece x: 1600 mm
- Workpiece y: 1800 mm
- Workpiece z: 850 mm
Table
- Outer length: 1500 mm
- Outer width: 1600 mm
- TSlots size: 22 x 200 x 8 mm
- Min distance between vertical spindle and table: 320 mmm
- Max distance between vertical spindle and table: 1020 mm
- Table load: 5000 kg
Tools
- Max weight: 15 kg
- Max tool diameter: 133 mm
- Max tool length: 300 mm
Additional Equipment
- - ATC with 20 tools
- - Coolant tank capacity: 400 liters
Additional Information
- Technical Machine Benefits:
- - Spindle bearing ins. Diameter: 90 mm
- - Total power consumption (max. ): 58 kw
- - Servo motor for 3 axes: x: 15. 7 kw / y: 7 kw / z: 10 kw
- - Packing dimension: 5,350 x 4,000 x 3,700 mm
- - High spindle speed, direct drive motor, rapid feedrates.
- Qualitative Machine Benefits:
- - Grease lubrication, oil-cooling system, high table load capacity.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
