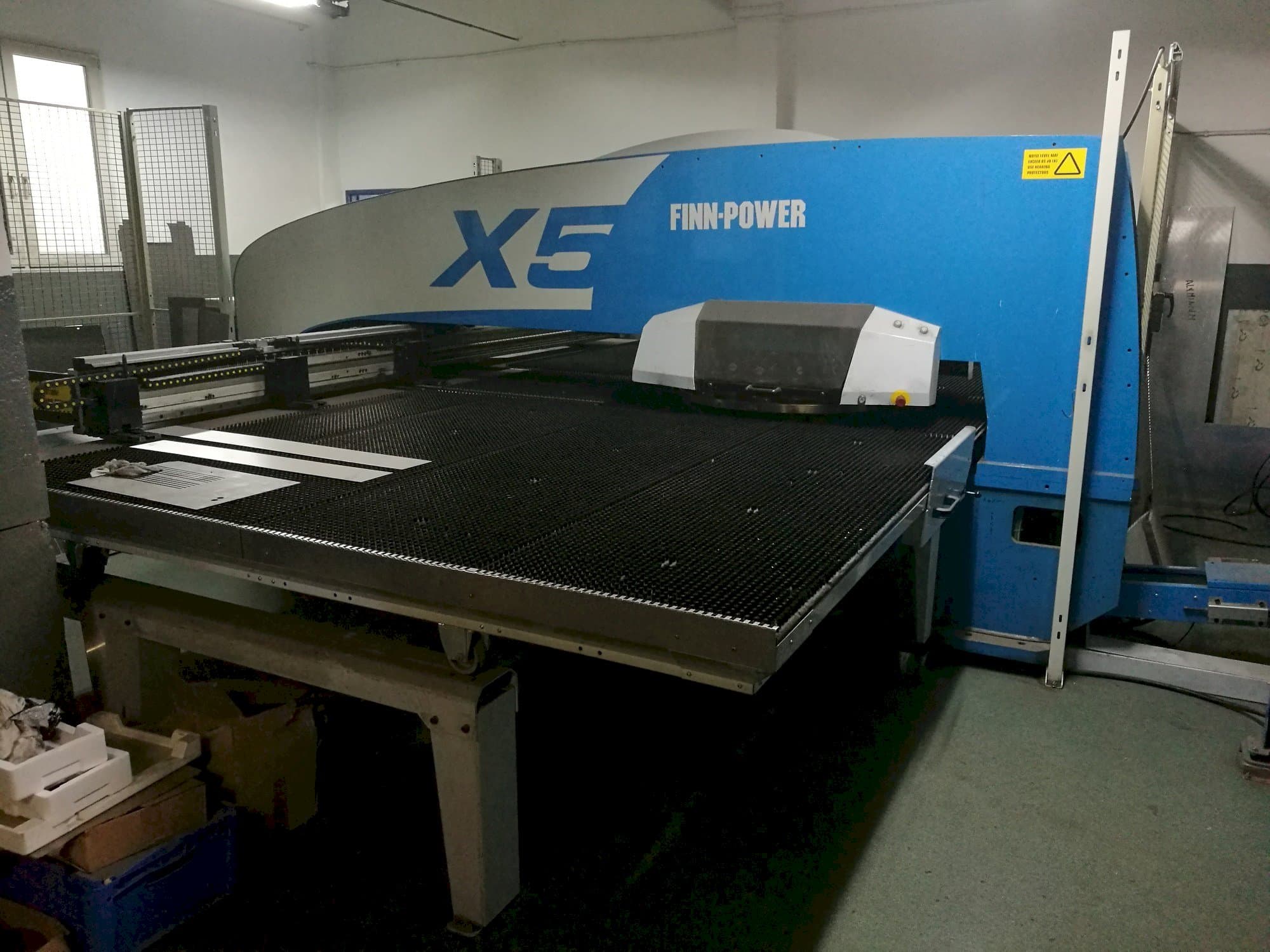

Finn-Power X5 12 06 Punching Machine

Show in original language

This Finn-Power X5 12 06 Punching Machine was manufactured in 2008 in Finland and has been working for only 3683 hours. Equipped with a FANUC Series Oi-PC Control unit, this machine can operate with a punching force of 230 kN.

Overview

brand: Finn-Power
year: 2008
MODEL: X5 12 06
production hours: 3683
application type: Punching
Location: Poland
machine type: Turret Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - Finn-Power X5 12 06

General Data

Measurements width: 5200 mm
Measurements depth: 6900 mm
Measurements height: 2500 mm
Machine weight: 10500 kg

Control Unit

Model: Series Oi-PC
Brand: FANUC

Main drive

Punching force: 230 kN

Movement

X-AXIS Movement: 2584 mm
Y-AXIS Movement: 1317 mm

Workpiece

Workpiece x: 2530 mm
Workpiece y: 1270 mm
Workpiece weight: 200 kg

Tools

Number of index: 6

Max Material thickness

Steel: 8 mm

Media

Main electronic connection: 3x400V / 50Hz
Power consumption: 20.5 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Galvanized ms
material thickness: 2 mm

Machine Benefits

Technical Machine Benefits:
- - Reposition for longer parts and material
- - Exner tool grinder
- - Software licence nc express
Qualitative Machine Benefits:
- - Machine was inspected yearly basis by prima power service

Extra information

- Very good condition and very extensive equipment, a huge list of punching tools, 2 x Multitool stations Additional equipement included in the price: Scrap conveyor, Automatic setting and clamping material, Individual setting of each of the clamp, Tool lubrication system, Photocells safety system, Network card, Working chute under the punching table.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
