- Finn-Power E5 Punching Machine

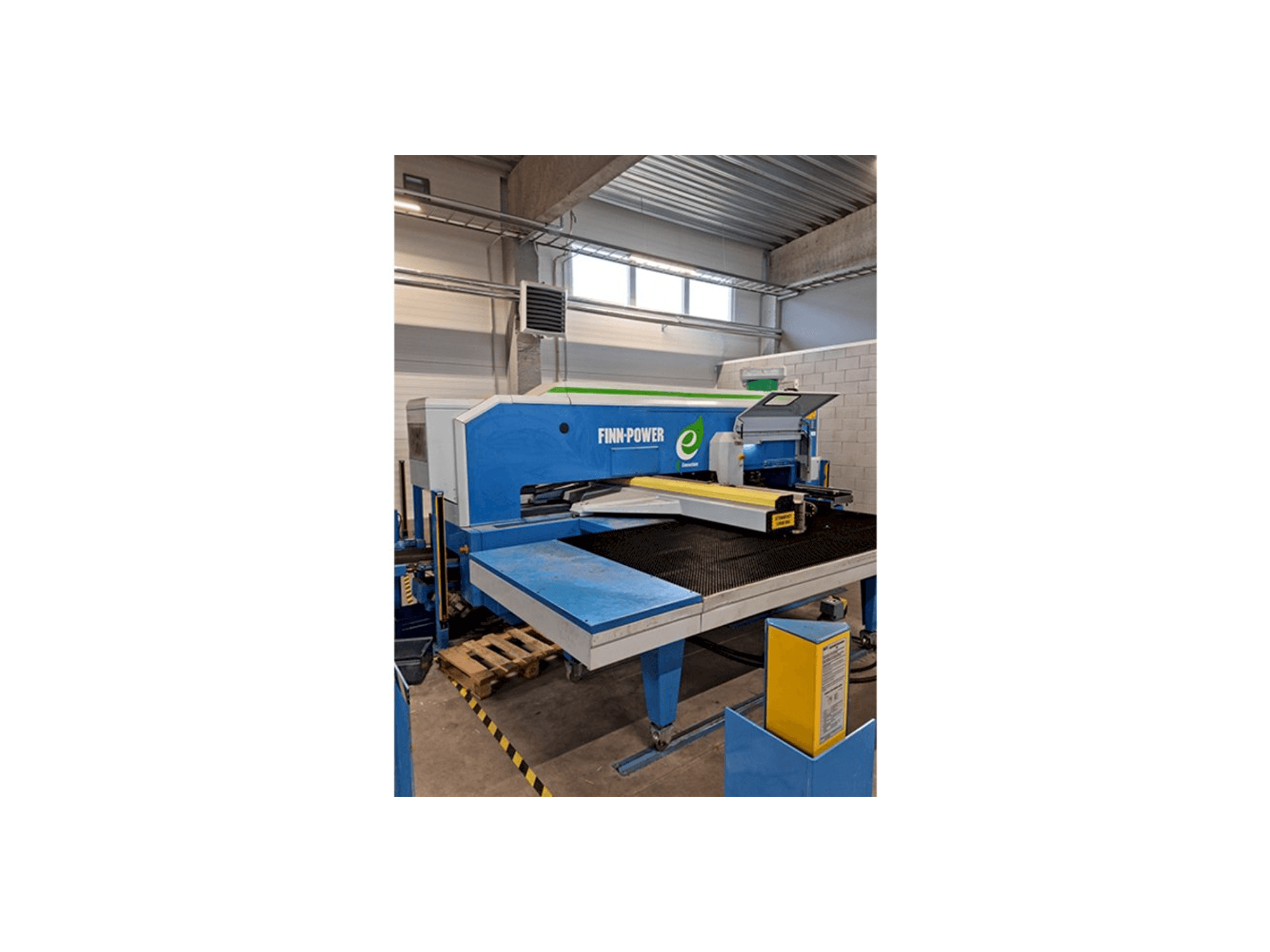

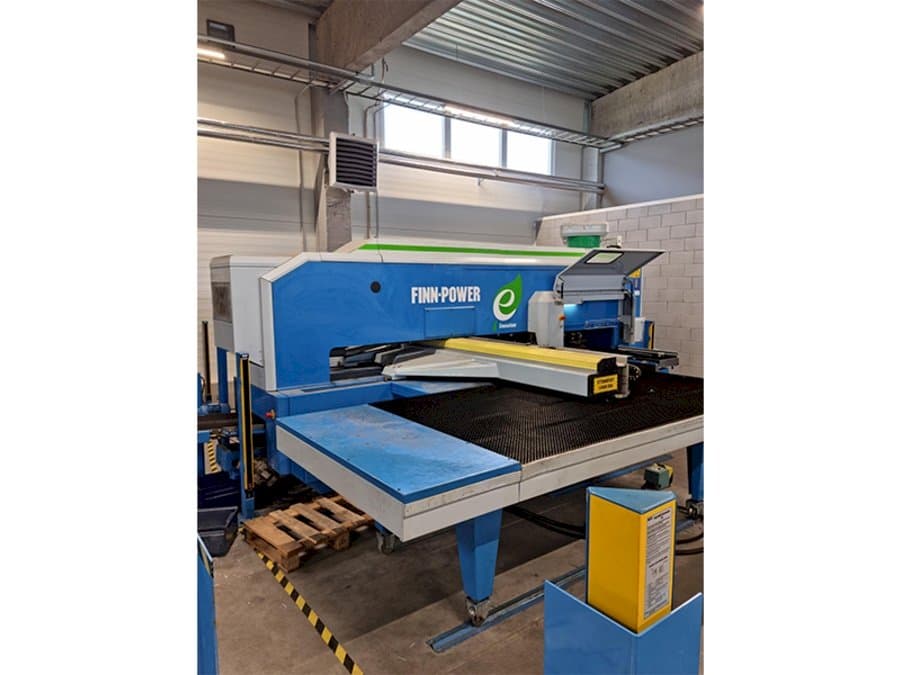

This Finn-Power E5 Punching Machine was manufactured in the year 2007. It has been working for approximately 36000 hours. It is operated through a Siemens Sinumeric 840D control unit. This punching machine can work with a punching force 200 kN and a punching diameter 89 mm.
Overview
- brand: Finn-Power
- year: 2007
- MODEL: E5
- production hours: 36000
- application type: Bending & Punching
- Location: Estonia
- machine type: CNC Punch Press
- availability: Sold
- control unit brand: Siemens
Technical Information - Finn-Power E5
General Data
- Machine weight: 14000 kg
Control Unit
- Brand: Siemens
- Model: Sinumeric 840D
Main drive
- Punching force: 200 kN
Movement
- X-AXIS Movement: 2584 mm
- X-AXIS Rapid traverse: 90 m/min
- Y-AXIS Movement: 1317 mm
- Y-AXIS Rapid traverse: 60 m/min
Table
- Outer length: 2530 mm
- Outer width: 1270 mm
- Table load: 200 kg
Media
- Power consumption: 11 kVA
Additional Information
- Technical Machine Benefits:
- - Max punching diameter: 89 mm
- - Max tool rotation: 166 r/min
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
