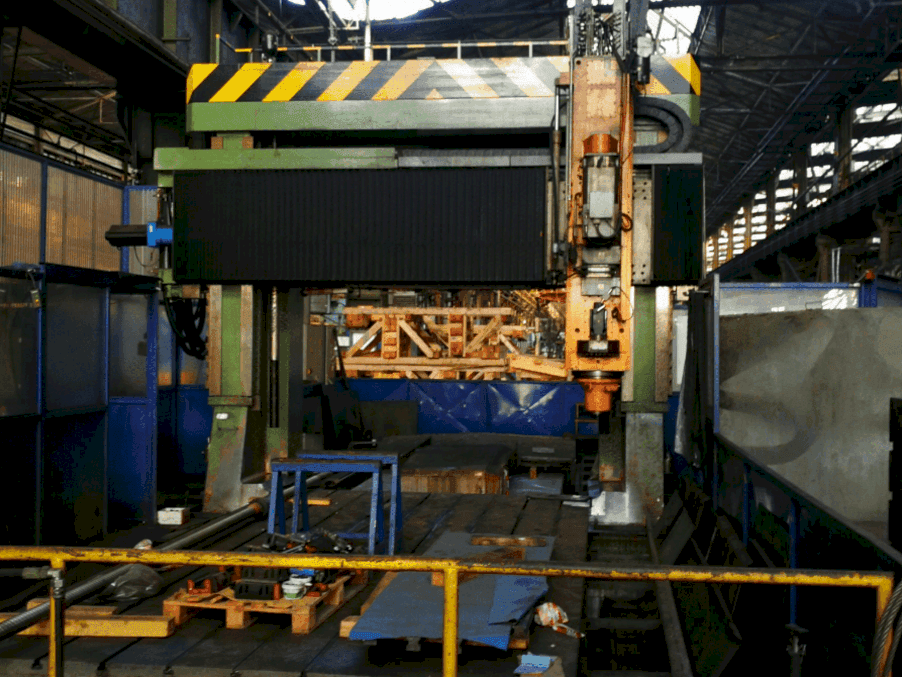

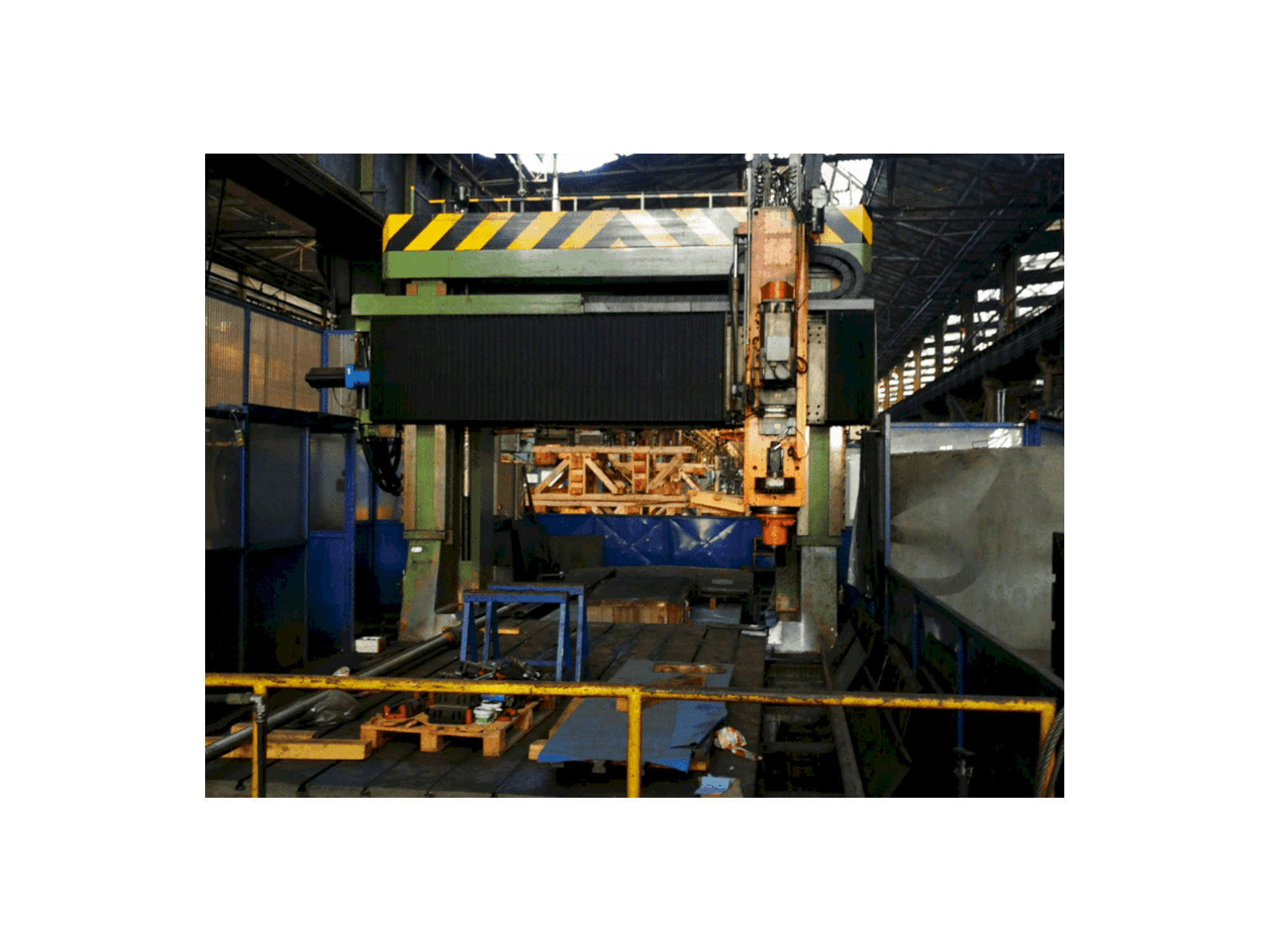

FFZ 30-60 Milling Machine

Show in original language

This FFZ 30-60 Milling Machine was manufactured in 2005. This 5 axis machine is operated through a Heidenhain 430 control unit. Its spindle speed goes up to 5000 rpm. It has a hinge belt conveyor with integrated overload protection along with many essential features.

Overview

brand: FFZ
year: 2005
MODEL: 30-60
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - FFZ 30-60

General Data

Measurements width: 6000mm
Measurements depth: 13200mm
Measurements height: 9800mm

Control Unit

Model: 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 50 kW

Movement

X-AXIS Movement: 6000mm
X-AXIS Feed Force: 20000 mm/min
Y-AXIS Feed Force: 20000 mm/min
Z-AXIS Movement: 2000mm
Z-AXIS Feed Force: 20000 mm/min
A-AXIS Feed Force: 2160°/min
C-AXIS Feed Force: 1980°/min

Workpiece

Workpiece weight: 6400 kg

Table

Outer length: 6000 mm
Outer width: 3000 mm

Media

Chip conveyor: Yes

Additional Equipment

- Paint RAL-7035

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Portal passage: height x width 3200 x 3370 mm
- - Distance between clamping surface and bottom edge of milling head min. /max. [mm] 0000 / 2500
- - X-axis travel machine table [mm] +/-6000
- - Y-axis travel milling unit [mm] 4 100
- - Z-axis pestle [mm] 1 500
- - Cross beam adjustment [mm] 1 500
- - Machine bed: total length approx. [mm] 13,000
- - Machine frame 2 stands, beams, traverse
- - Cross beams height-adjustable
- - Machine bed 1
Qualitative Machine Benefits:
- - Tool changer, number of tools [pc] 30
- - Fork milling head, c-axis, a-axis 2 axes controlled
- - Electrical equipment 3x400 v, 50 hz
- - Main motor for milling spindle, siemens [kw] 50
- - Servomotors x-,y-,z-axis, siemens
- - Servo motors for tool changers, siemens
- - Electric cabinet air-conditioned
- - Coolant device
- - Belt filter system with high-pressure pump
- - Hinge belt conveyor [stk] 2

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
