➤ Used FFG DMC DL 25SY For Sale | gindumac.com

Show in original language

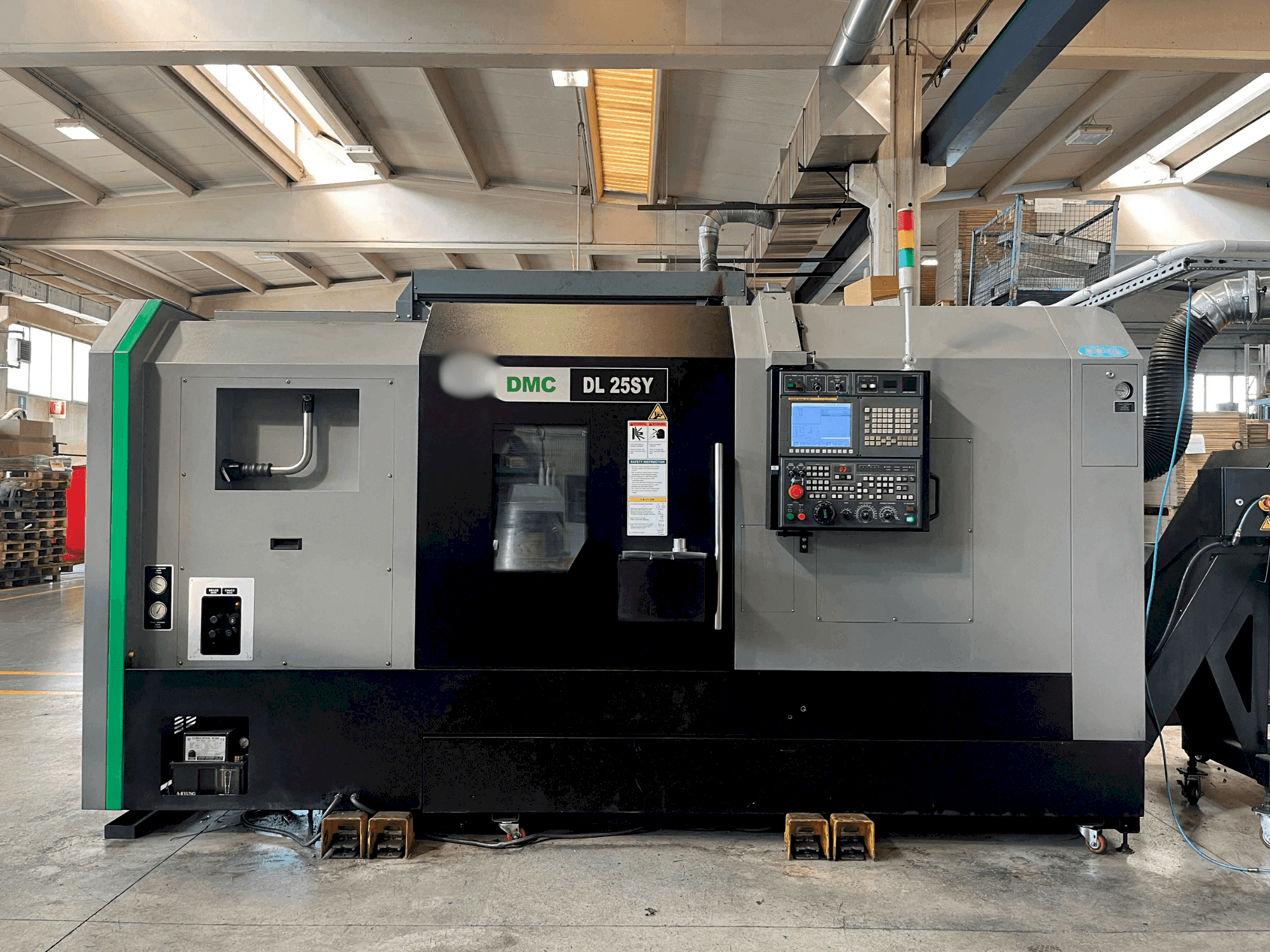

This 4-axis FFG DMC DL 25SY horizontal turning machine was manufactured in 2019. It features a FANUC 0i-TF control, a swing diameter of 710 mm, and a maximum turning diameter of 400 mm. The main spindle supports a 10" chuck, complemented by a sub-spindle with an 8" chuck. It includes a 12-position servo-driven turret and a chip conveyor. If you are looking to get high-quality turning capabilities, consider the FFG DMC DL 25SY machine we have for sale. Contact us for more information.

Overview

brand: FFG
year: 2019
MODEL: DMC DL 25SY
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - FFG DMC DL 25SY

Control Unit

Brand: FANUC
Model: Series 0i TF

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 18/22 kW
Tool taper: ASA A2-8
Number of axis: 4

Media

Chip conveyor: Yes

Additional Equipment

- Tool presetter
- Auto shutdown
- High pressure coolant pump 50 bar
- Part catcher with parts discharge belt
- Sub-spindle part ejector
- Bar feeder interface
- Electric automatic door
- Robot interface

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle chuck: 10"
- - Sub-spindle: speed - 4000 rpm, asa a2-6, chuck - 8", power - 11/15 kw
- - Max torque: 754 nm
- - Max turning diameter: 400 mm
- - Max turning length: 1000 mm
- - Type: 12-position servo-driven, motorized turret bmt55

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
