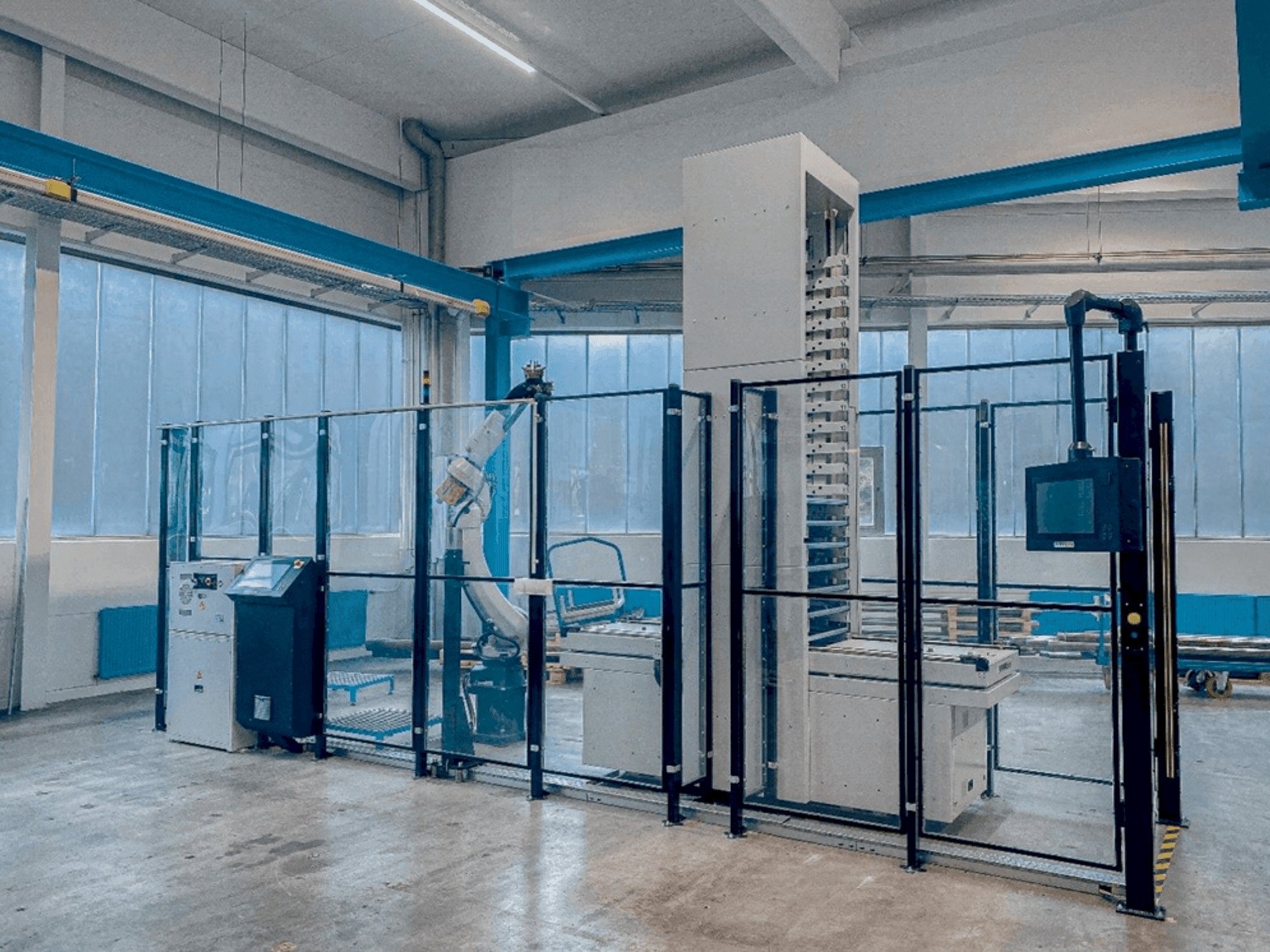

FANUC - ARC Mate 120iD/35, M-20iD/35DE-ROB-FAN-2024-00001

Additional Equipment

• - Control Panel and Console: 15° touchscreen design for compact and flexible integration.
• - RoboJob Device Interface: Configurable interface between robot and CNC machine.
• - Automatic Messenger (Email): Sends "error" and "cycle end" notifications via email.
• - Worknumber Search: Uses API for program adjustments based on workpiece lengths.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Set of 3 adjustable external grippers for diameters from Ø 23 to Ø 180 mm, height: 32 mm
  • - 2x schunk three-point grippers arranged at 90°, mounted on robojob touchanger
  • - Tower double lift 3. 5m: industrial workpiece storage for up to 4560 kg of material, total height: 3500 mm, tower footprint: 1. 4 m², storage capacity footprint: 6. 3 m². Includes 19 drawers, each with a load capacity of 240 kg and an effective workpiece area of 575x575x104 mm.
  • - Inlay tower 600x600 discs: surface 550 x 550 mm, capacity for various diameters from 170 mm to 540 mm.
  • - Inlay tower 600x600 shafts: surface 550 x 550 mm, capacity for diameters 10 mm to 20 mm with various shaft lengths.
  • - Turning station pallet-load disk: automatic backside processing with a 180° repositioning station.
  • - Shaft length laser scanner: determines the shaft end position with max diameter 110 mm.
  • - Software package tower workpiece handling essential: manages workpiece, drawer inlay, and gripper parameters.
  • - Software expansion n. L. O. Ejection: cnc signals out-of-tolerance workpieces to the system.

Extra information

• - Gripper Finger Set: For shaft diameters from Ø 10 to Ø 80 mm, width: 16 mm, height: 49 mm. Clamping Pressure Control: Manual control for raw and finished part grippers on robot with 35 kg payload.
