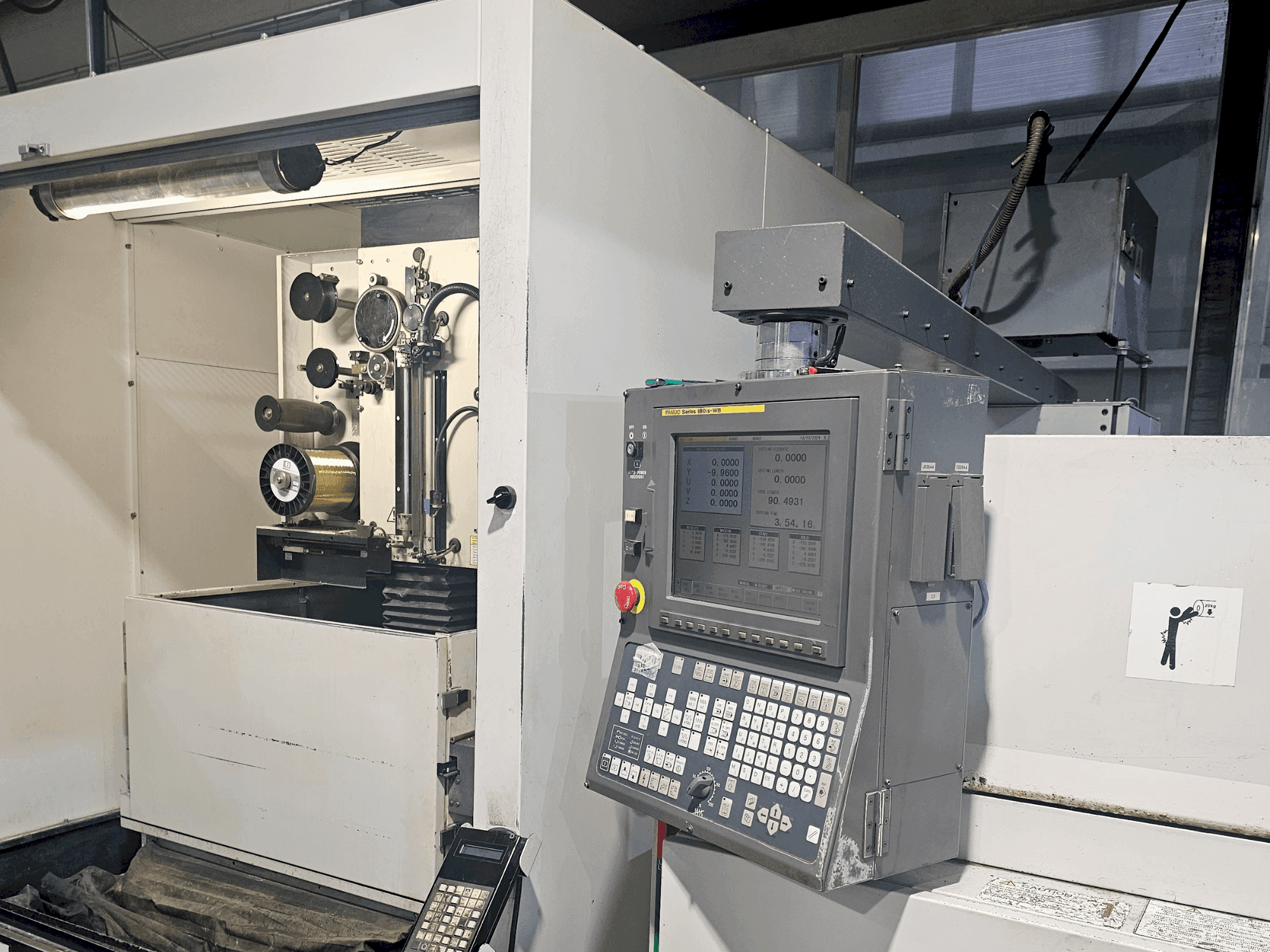

This 5-axis FANUC alpha 1iC wire EDM machine was manufactured in 2006. It features a working area of 820 × 730 × 300 mm, a maximum taper angle of 11°, and can handle a workpiece mass up to 1,000 kg. Ideal for precision cutting, it supports wire diameters from 0.1 to 0.3 mm. If you are looking to get high-quality EDM capabilities, consider the FANUC alpha 1iC machine we have for sale. Contact us for more information.
Overview
- brand: FANUC
- year: 2006
- MODEL: alpha 1iC
- application type: EDM
- Location: Slovenia
- machine type: Wire EDM Machine
- availability: Immediately
- control unit brand: FANUC
Technical Information - FANUC alpha 1iC
General Data
- Measurements width: 130 mm
- Measurements depth: 1000 mm
- Measurements height: 300 mm
- Machine weight: 3000 kg
Control Unit
- Brand: FANUC
- Model: series 180is-VB
Main drive
- Number of axis: 5
Movement
- Z-AXIS Movement: 10 mm
- U/V Movement: 180 mm
Workpiece
- Workpiece weight: 1000 kg
Additional Information
- Technical Machine Benefits:
- - Maximum taper angle: 11°
- - Workpiece height: standard: 180 mm; option: 255 mm
- - Table travel: 550 × 370 mm (optional)
- - Wire diameter: standard: 0. 1–0. 3 mm; option: 0. 05–0. 3 mm
- - Maximum wire mass: 76 kg
- - Maximum cutting speed: 330 mm/min (using 0. 3 mm brass wire with ac cutting)
- - Working area: 820 × 730 × 300 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
