➤ Used Euromac MTX Flex 12 Hybrid - Punching Machine

Show in original language

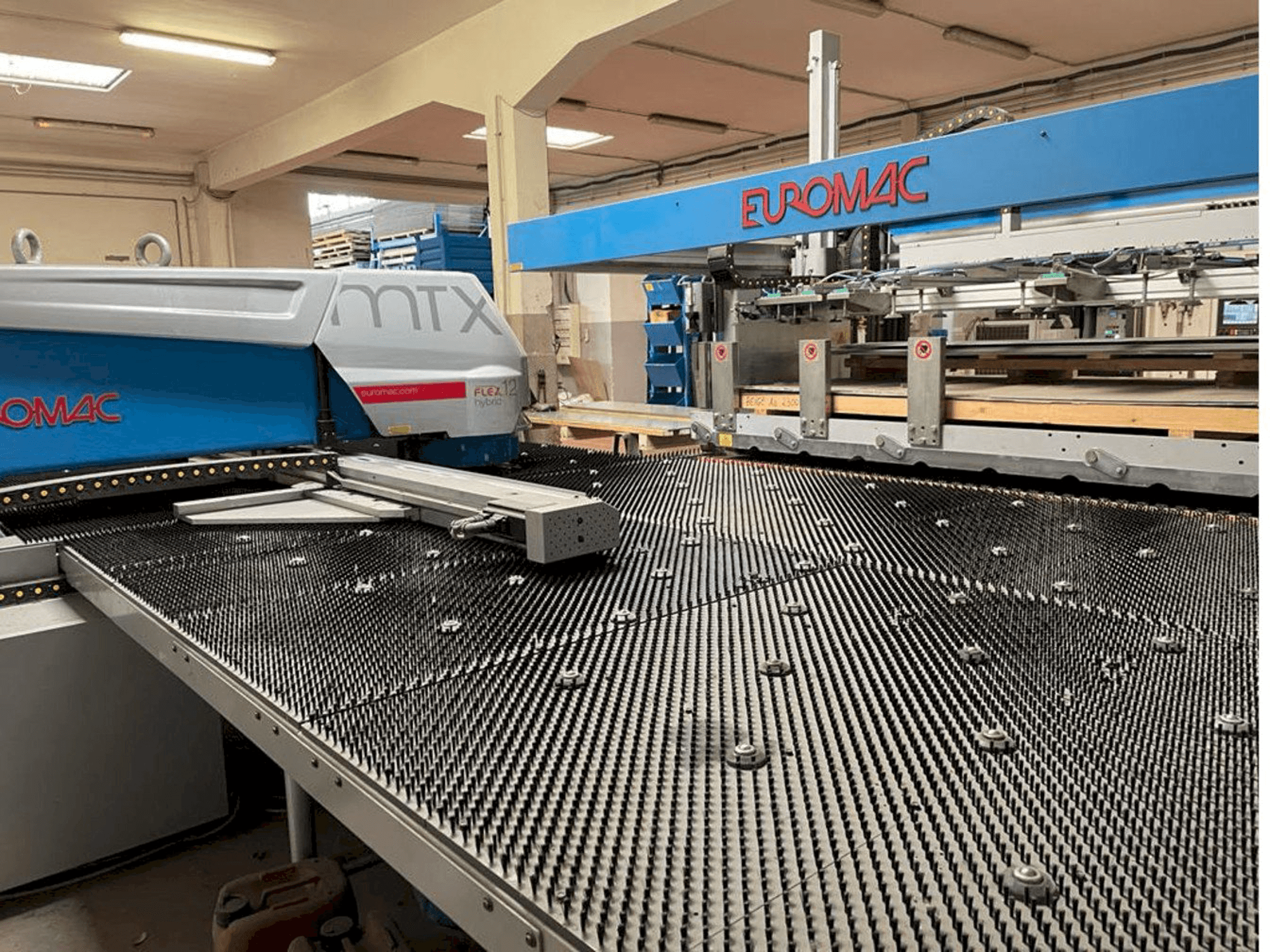

This Euromac MTX Flex 12 Hybrid Punching machine was manufactured in the year 2014 in Italy and has 6200 hours. It is controlled by a Euromac control unit. The machine has a punching force of 300 kN, and several tools are included as additional equipment. The machine comes with sheets loading and unloading system included in the price.

Overview

brand: Euromac
year: 2014
MODEL: MTX Flex 12 Hybrid
production hours: 6200
application type: Bending & Punching
Location: Italy
machine type: Turret Punch Press
availability: Sold
control unit brand: Euromac

Technical Information - Euromac MTX Flex 12 Hybrid

Control Unit

Brand: Euromac

Main drive

Punching force: 300 kN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Additional Equipment

- Several tools included
- The machine comes with sheets loading and unloading system included in the price

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Y axis with multitool /monopunch (mm) y = 1250
- - Automatic repositioning in x (mm) up to 10000
- - Numerically control stroke depht (mm) from 0. 1 to 31
- - Hydraulic servomotor controlled system standard
- - Position accuracy (mm) +/- 0. 05
- - Precision in forming repeatability (mm) +/- 0. 1
- - Bidirectional autoindex stations: 3
- - Opening of clamps (mm): 11
- - Automatic positioning clamps: 2
- - Punching with 20 mm pitch: 375
Qualitative Machine Benefits:
- - Nibbling with 1 mm pitch: 1000
- - Marking: 2000 thickness range (mm): 0. 6 - 6
- - Max. Sheet metal weight at reduced axle speed (kg): 150
- - Usb port: 6
- - Installed power (kw): 8. 5
- - Average consumption (kw/h): 4. 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
