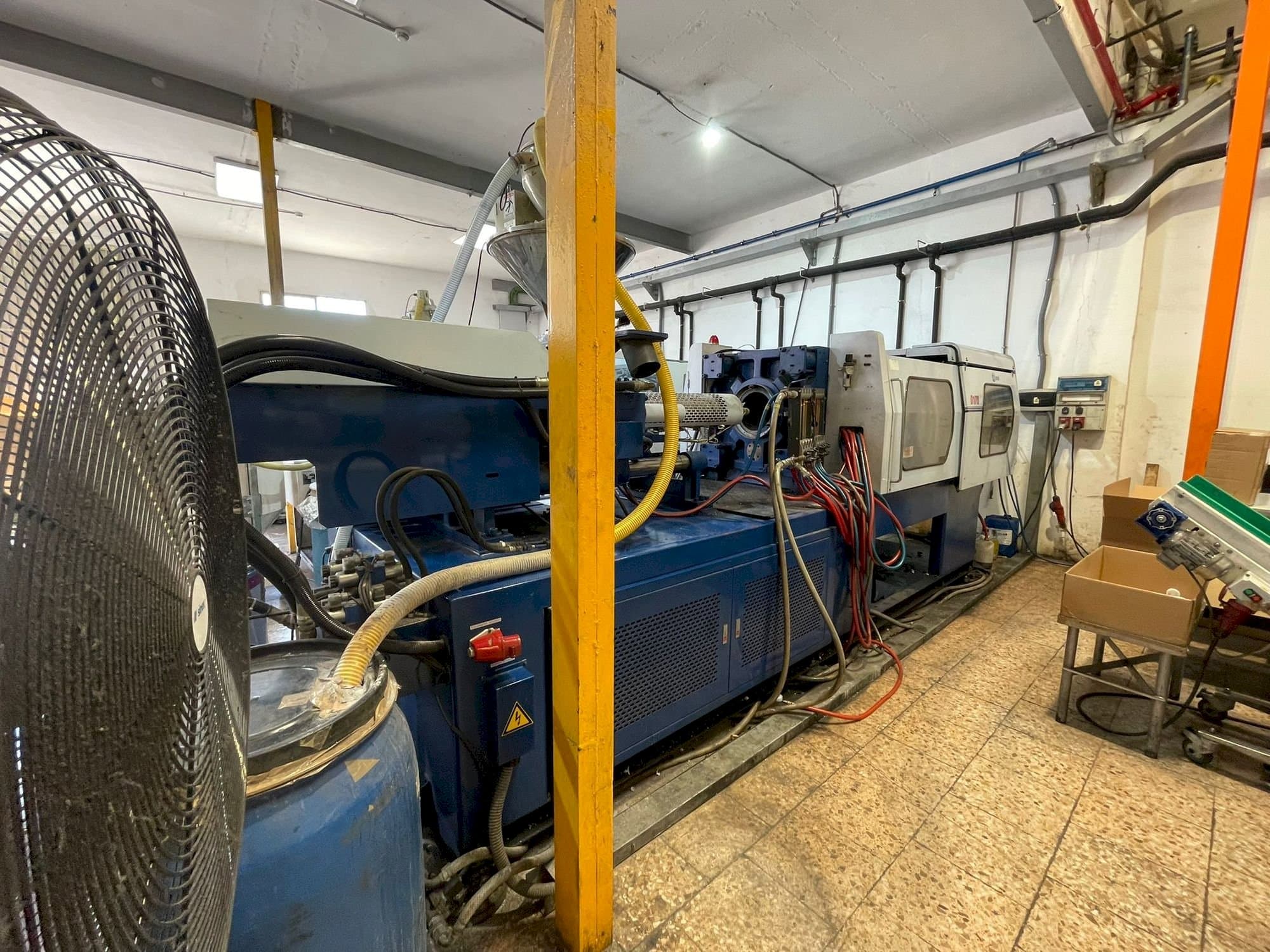

This Euroinj D170 injection moulding machine was built in the year 2012. The machine has a clamping force of 1700 kN and a screw diameter of 55 mm.
Overview
- brand: Euroinj
- year: 2012
- MODEL: D170
- application type: Injection Moulding
- Location: Spain
- machine type: Electrical Injection Moulding Machine
- availability: Sold
Technical Information - Euroinj D170
General Data
- Measurements width: 6200 mm
- Measurements depth: 1350 mm
- Measurements height: 2000 mm
- Machine weight: 10000 kg
Injection Unit
- Screw diameter: 55 mm
- Shot weight: 555 g
- Stroke volume: 617 CM³
- Injection pressure: 1691 bar
Clamping unit
- Clamping force: 1700 kn
- Opening stroke: 475 mm
- Max open daylight: 650 mm
- Distance between bars: 1125 mm
- Mould height min: 150 mm
- Mould height max: 150 mm
Additional Information
- Technical Machine Benefits:
- - Injection index 199 g/seg
- - Screw stroke 260 mm
- - Distance columns 1125 mm
- - Diameter columns 510 x 510 mm
- - Max. Travel expansion 100 mm
- - Motor pump 30 - 40 hp
- - Hydraulic pressure 140 bar
- - Heating capacity 10,9 kw
- - No. Of heating zones 4+n
- - Oil tank capacity 450l
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
