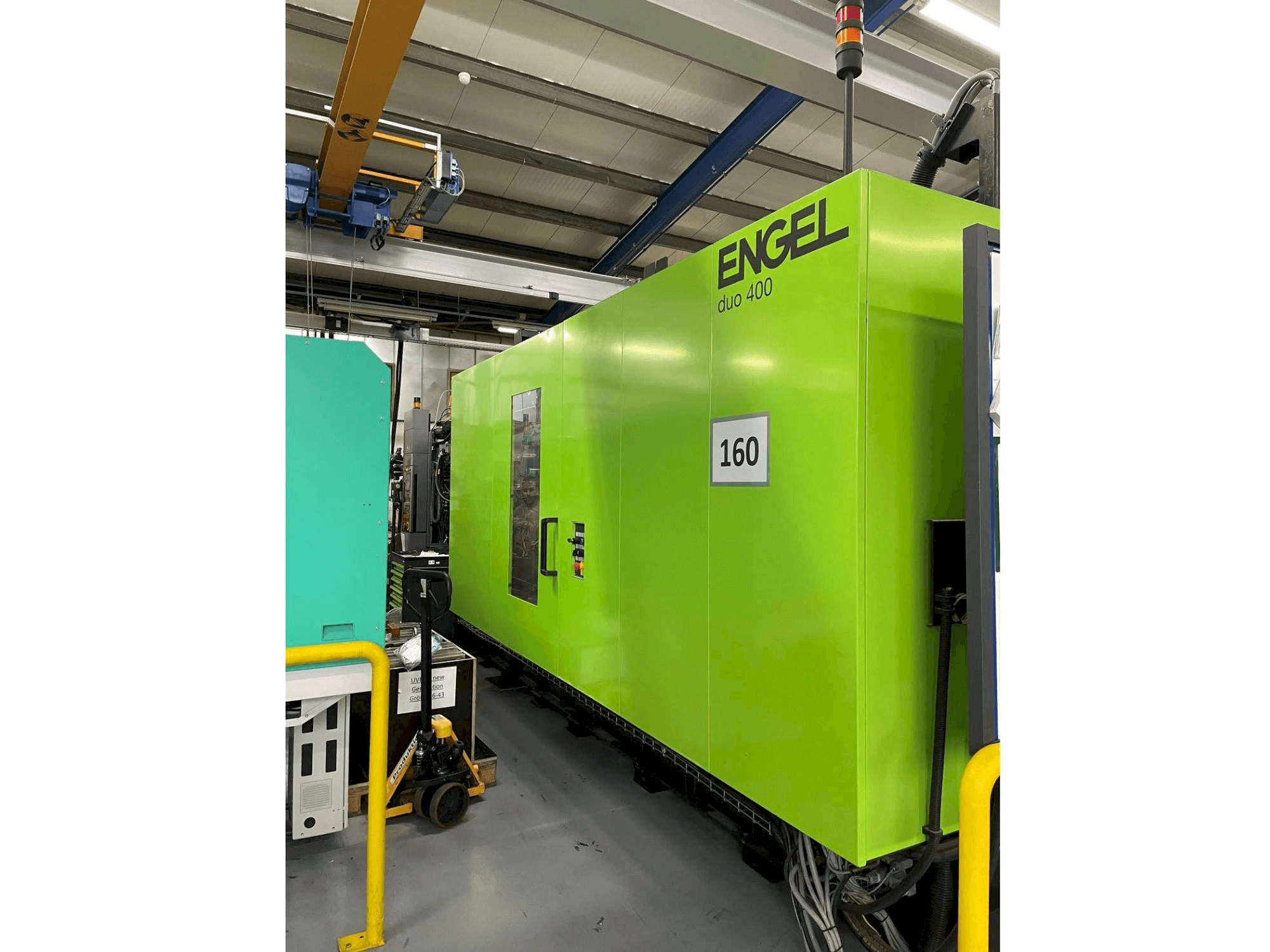

Engel Duo 1800H/1050M/400 combi M Injection moulding machine

Show in original language

This Engel Duo 1800H/1050M/400 combi M Injection moulding machine was made in the year 2015 and has 2000 production hours. The machine has a clamping force of 4000 kN and an opening stroke of 1700 mm. It includes a 6-axis robot Engel Easix 200 integrated with the machine control system.

Overview

brand: Engel
year: 2015
MODEL: Duo 1800H/1050M/400 combi M
production hours: 2000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Engel Duo 1800H/1050M/400 combi M

General Data

Machine weight: 27000 kg

Clamping unit

Clamping force: 4000 kn
Opening stroke: 1700 mm
Mould height min: 1100 mm
Mould height max: 1600 mm
Size of mold platens: 1100 x 1190 mm
Ejector stroke: 250 mm
Ejector force for / back: 95 kN

Additional Equipment

- 6-axis robot Engel Easix 200 integrated in machine control system

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of injection units: 2
- - Size injection unit 1: 1800
- - Screw diameter 1: 60 mm
- - Max. Shot weight 1: 801 g
- - Size injection unit 2: 1050
- - Screw diameter 2: 50 mm
- - Max. Shot weight 2: 535 g
- - Turnover plate
- - Tie bar pulling device for mold change
- - Engel flomos on for each clamping plate

Extra information

- the machine is sold only with the Engel Easix, the rest of the periphery that can be seen on the video, is not part of the SGM

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
