Emmegi Quadra CNC machining center for aluminum

Show in original language

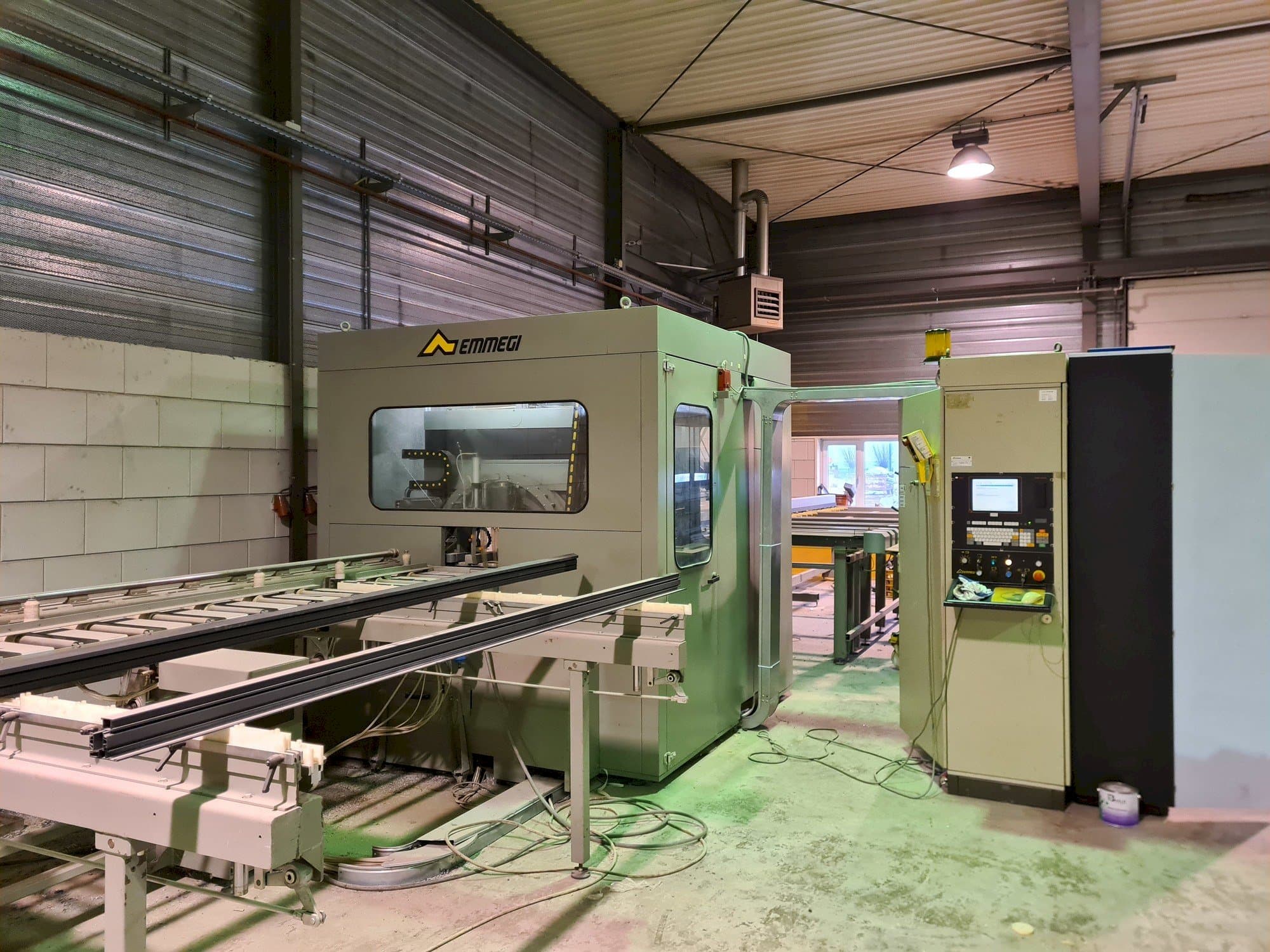

This Emmegi Quadra CNC machining center for aluminum was manufactured in the year 2001 in Italy, it can saw, drill, and mill at the same time. It is equipped with an ISAC SAB 9500 control unit. The machine has a spindle speed of 20000 rpm.

Overview

brand: Emmegi
year: 2001
MODEL: Quadra
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
availability: Sold

Technical Information - Emmegi Quadra

General Data

Machine weight: 2700 kg

Control Unit

Model: SAB 9500

Main drive

Spindle speed range: 20000 1/MIN

Movement

X-AXIS Movement: 240 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 350 mm
U-Axis Movement: 9500 mm
A-AXIS Movement: 360º MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Length of the feedable bars: 7500 mm
- - Min. Length of bars that can be fed in automatic mode: 3000 x 1550 mm
- - Max. Feedable weight: 500 kg
- - Power of the work spindle: 4,5 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
