EMCO MCX 1200 Vertical Machining Center

Show in original language

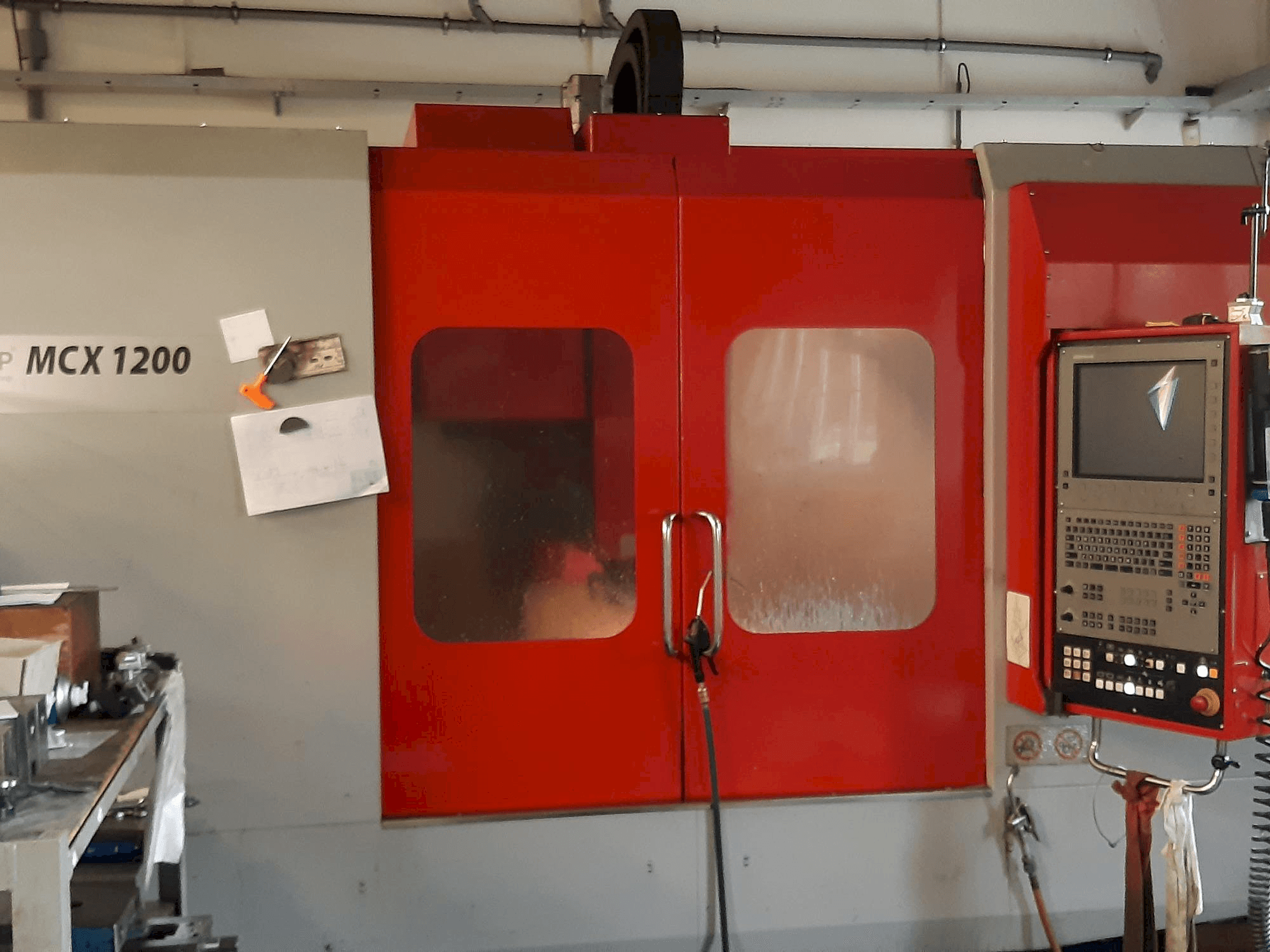

This EMCO MCX 1200 Vertical Machining Center was manufactured in the year 2006. It has been on for 34951 hours, of which 11162 are spindle hours. It is equipped with a Heidenhain TNC 530i control unit. This 3 axis machine can work with a spindle speed up to 8000 rpm. It present very good working conditions, regularly serviced.

Overview

brand: EMCO
year: 2006
MODEL: MCX 1200
production hours: 34951
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - EMCO MCX 1200

General Data

Measurements width: 3758 mm
Measurements depth: 3641 mm
Measurements height: 3158 mm
Machine weight: 6500 kg

Control Unit

Model: TNC 530i
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 600 mm

Workpiece

Workpiece weight: 800 kg

Table

Outer length: 1300 mm
Outer width: 620 mm

Tools

Slots in storage: 24
Max weight: 6 kg
Max tool diameter: 75/150 mm
Max tool length: 250 mm
Type of tool holder: ISO 40

Media

Power consumption: 20 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid feedrate 24 m/min
- - Spindle motor power 15 kw/s6 - 11kw/s1
- - Spindle motor torque 95 nm/s6 - 70 nm/s1
- - Spindle ready for cooling through spindle option
- - Wash gun
- - Central lubrication
Qualitative Machine Benefits:
- - Very good condition, regularly serviced.
- - 2019 - new ballscrews on x, y axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
