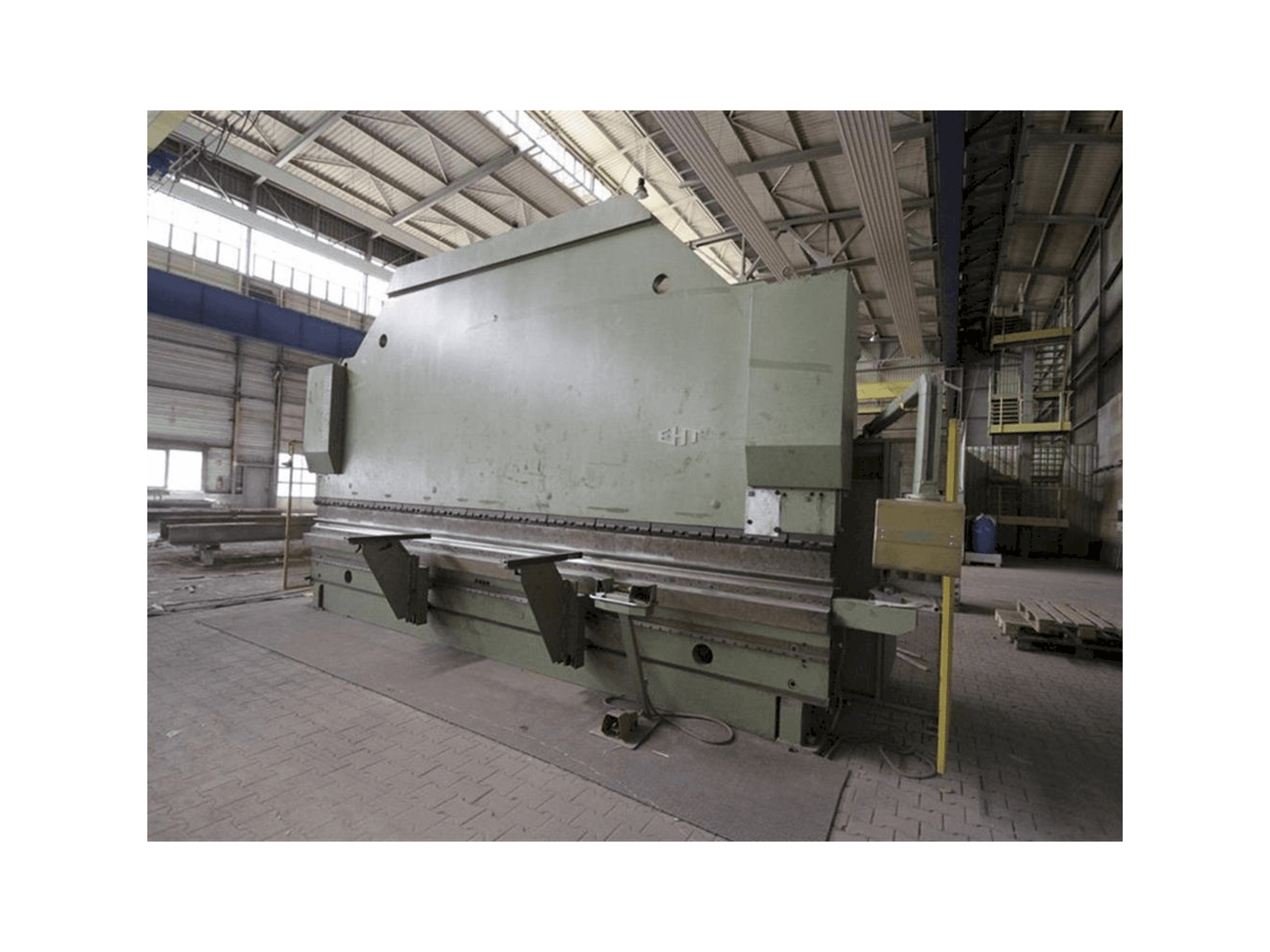

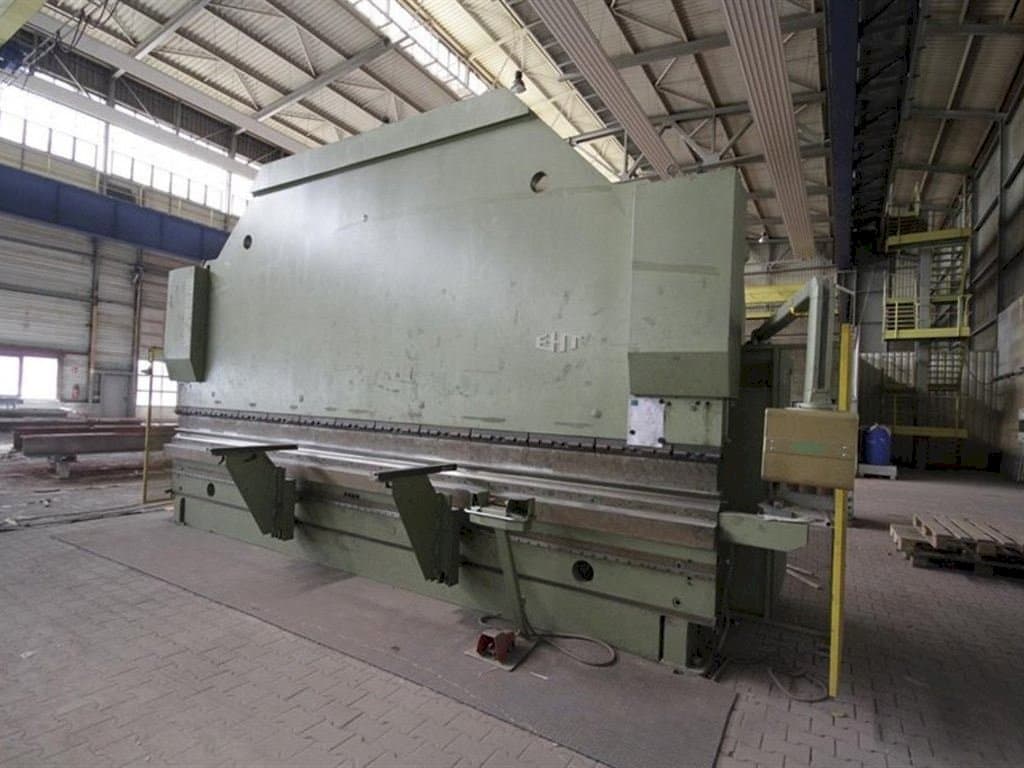

Right side view of EHT Variopress 250 60  machine

EHT - Variopress 250 60DE-BEN-EHT-1998-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Hydraulic press brake EHT Variopress 250-60 with a controlled rear length stop system was built in the year 1998. It is equipped with a Cybelec DNC70 control unit. The machine has a pressing force of 2500 kN and a bending length of 6050 mm.

Overview

  • brand: EHT
  • year: 1998
  • MODEL: Variopress 250 60
  • application type: Bending
  • Location: Germany
  • machine type: Press Brake
  • availability: Sold
  • control unit brand: CYBELEC

Technical Information - EHT Variopress 250 60

General Data

  • Measurements width: 8400 mm
  • Measurements depth: 3900 mm
  • Measurements height: total height above floor: 4070 mm, total depth under floor: 950 mm
  • Machine weight: 42800 kg

Control Unit

  • Model: DNC70
  • Brand: CYBELEC

Main drive

  • Pressing force: 2500 kn
  • Bending length: 6050 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance between machine uprights: 5550 mm
      • - Column projection: 350 mm
      • - Ram stroke: 270 mm
      • - Distance between table and ram: min. 360 mm to max. 630 mm
      • - Stroke speed: idle max. 100 mm/s, press stroke max. 8 mm/s, retract max. 100 mm/s
      • - Column width: 5550 mm
    • Qualitative Machine Benefits:
      • - Hydraulic press brake eht variopress 250-60 with controlled rear length stop system
      • - The eht press brake has a foundation for the lower beam due to the high power and bending width of 6000 mm.
      • - The press brake is ready for demonstration and in good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
