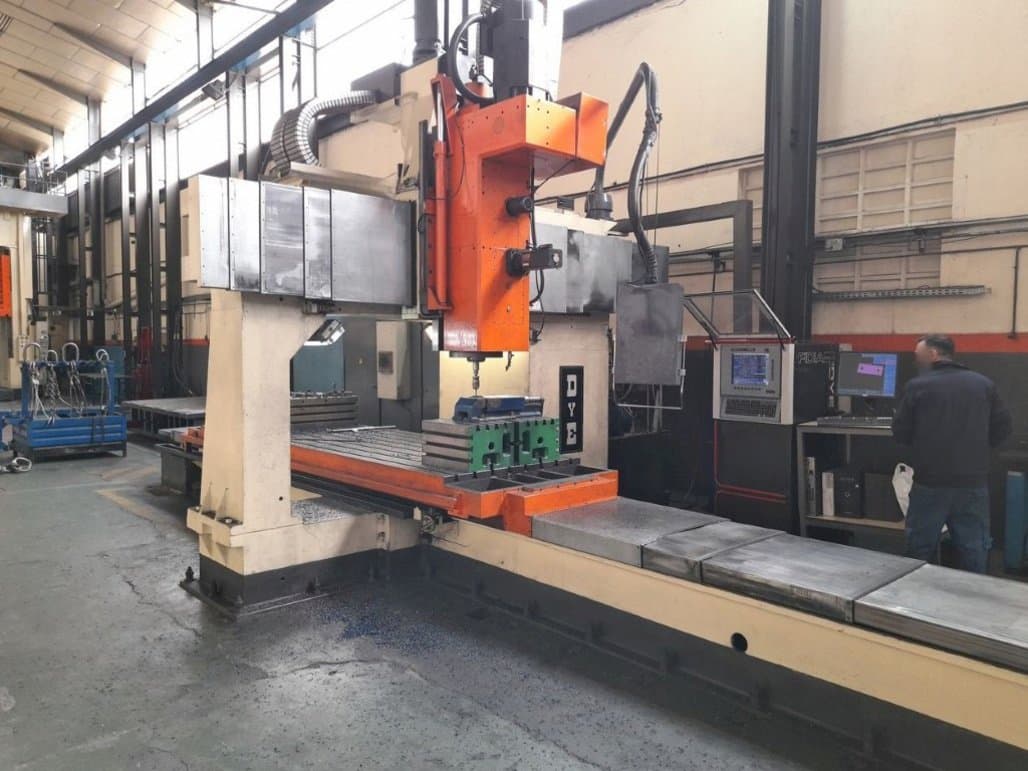

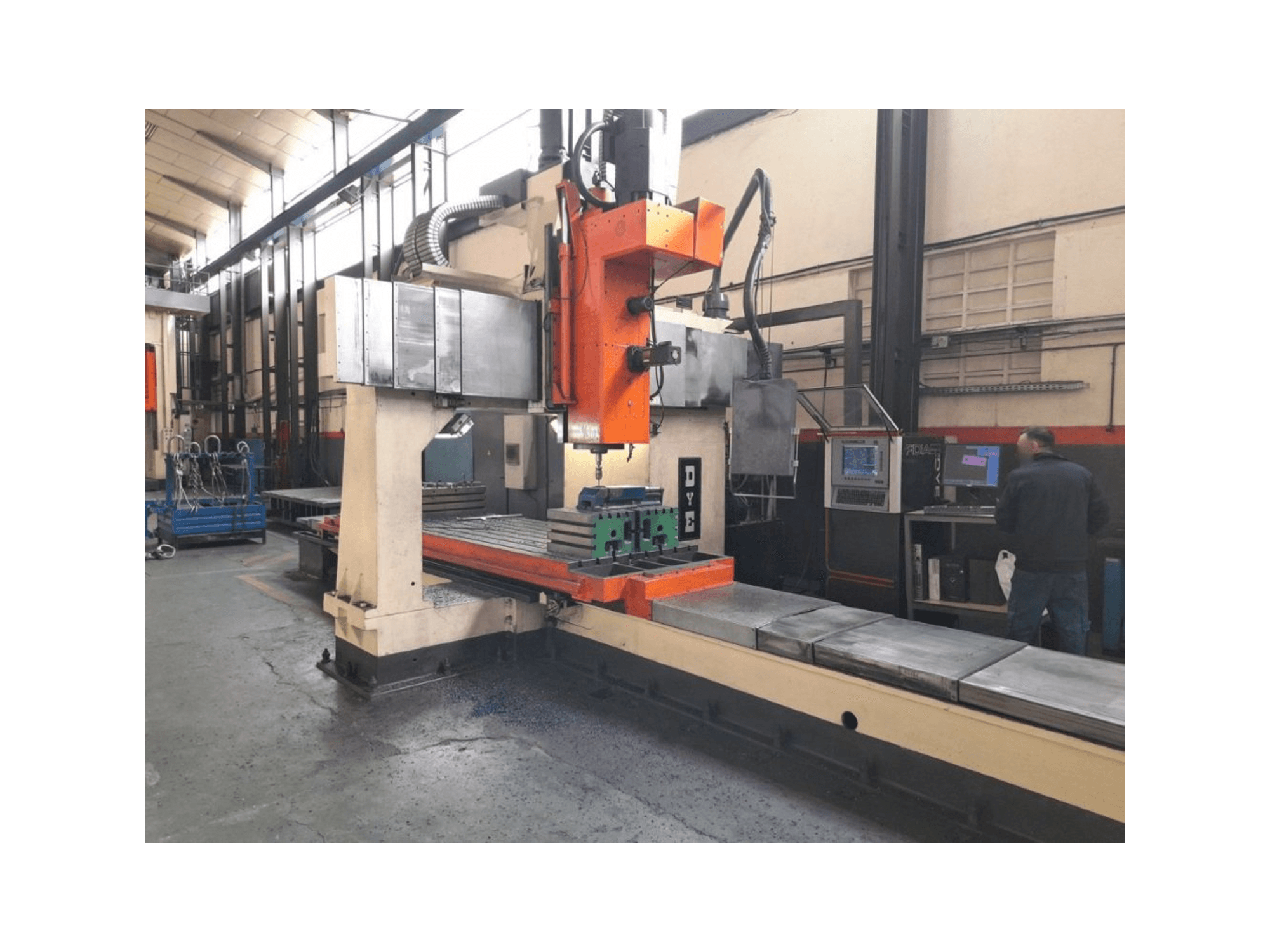

DYE FBF-C-N/C Milling machine

Show in original language

This DYE FBF-C-N/C Milling machine was made in 1986 and has been retrofitted in 1998. It operated through a Fidia PCR-0584 control unit, replaced in 2017. This 3 axis machine has a spindle speed up to 2000 rpm, a table dimension of 4000 x 1250 mm and a double chip conveyor. Always good maintenance.

Overview

brand: DYE
year: 1986
MODEL: FBF-C-N/C
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
availability: Sold
control unit brand: FIDIA

Technical Information - DYE FBF-C-N/C

General Data

Measurements width: 11200 mm
Measurements depth: 4400 mm
Measurements height: 5500 mm

Control Unit

Model: PCR-0584
Brand: FIDIA

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece weight: 12000 KG

Table

Outer length: 4000 mm
Outer width: 1250 mm

Tools

Type of tool holder: ISO 50

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between columns: 1850 mm
- - Max. Milling width: 1500 mm
- - Tool height correction and automatic locking
- - Double chip conveyor
- - Range of tools and accesories
Qualitative Machine Benefits:
- - Control unit replaced in 2017
- - Retrofitting in 1998
- - Always good maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
