Durma - AD-S 30320PL-BEN-DUR-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

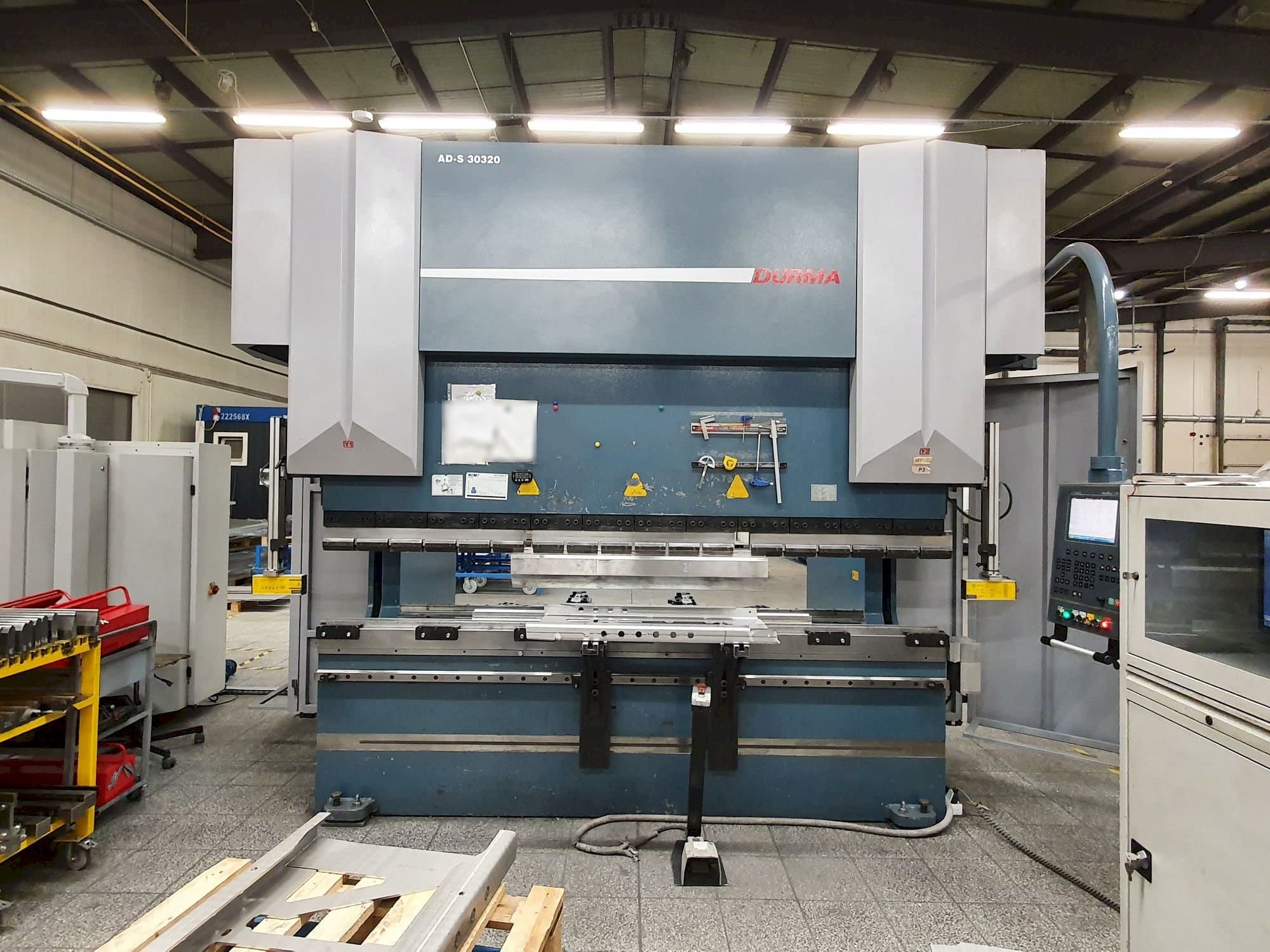

This Durma AD-S 30320 Bending Machine from Turkey was manufactured in the year 2012. It has a production history of approximately 34000 working hours. It is Equipped with a 10" color screen CYBELEC ModEva 10S control unit. This 8 axis machine stands out due to its bending length 3050 mm and bending force 3200 kN. It comes with a DURMA tool clamping system and a front laser protection of the working space, type FIESSLER AKAS. This machine is in very good working condition and ready for tests. It comes with its full documentation available.

Overview

brand: Durma
year: 2012
MODEL: AD-S 30320
production hours: 34000
application type: Bending
Location: Poland
machine type: Press Brake
availability: Sold
control unit brand: CYBELEC

Technical Information - Durma AD-S 30320

General Data

Measurements width: 4300 MM
Measurements depth: 1820 MM
Measurements height: 3230 mm
Machine weight: 17500 kg

Control Unit

Model: ModEva10S
Brand: CYBELEC

Main drive

Bending length: 3050 mm
Throat: 450 mm
Stroke: 365 mm
Number of axis: 8

Movement

X-AXIS Movement: 650 mm
R-AXIS Movement: 250 mm

Table

Outer length: 900 mm
Outer width: 154 mm

Clamping unit

Max open daylight: 530 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 37 kW
Oil tank: 250 l

Additional Equipment

- Portable console with foot switch and stop / breakdown button
- Lighting
- Front laser protection of the working space, type FIESSLER AKAS
- CNC table compensation, Wila type
- Front supports: 2 pcs

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Extension of the back gauge up to 1000 mm
- - Central lubrication (manual)
- - Durma tool clamping system
- - 2d graphics, 10 "color screen, 256 mb flash memory
- - Usb port and 3. 5 "floppy disk drive
- - Rj45 ethernet port for networking and rs 232 port
- - Programming of tools, angles and bending lengths
- - Axis corrections for the product and for the step (for each bend)
- - Simulation of the bending process (automatic selection of the bending sequence, collision signaling
- - Distance between columns: 2600 mm
Qualitative Machine Benefits:
- - Machine in very good working condition
- - Full documentation available
- - Ready for tests
- - X axis speed 500 mm/s, r axis speed: 350 mm/s
- - Bending force: 320 tons
- - It is 8 axis cnc press brake (y1, y2, x, r, z1, z2, x1, x2)
- - Cnc axis: y1, y2, x, r, z1, z2, x1, x2 v

Extra information

- No tooling included in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
