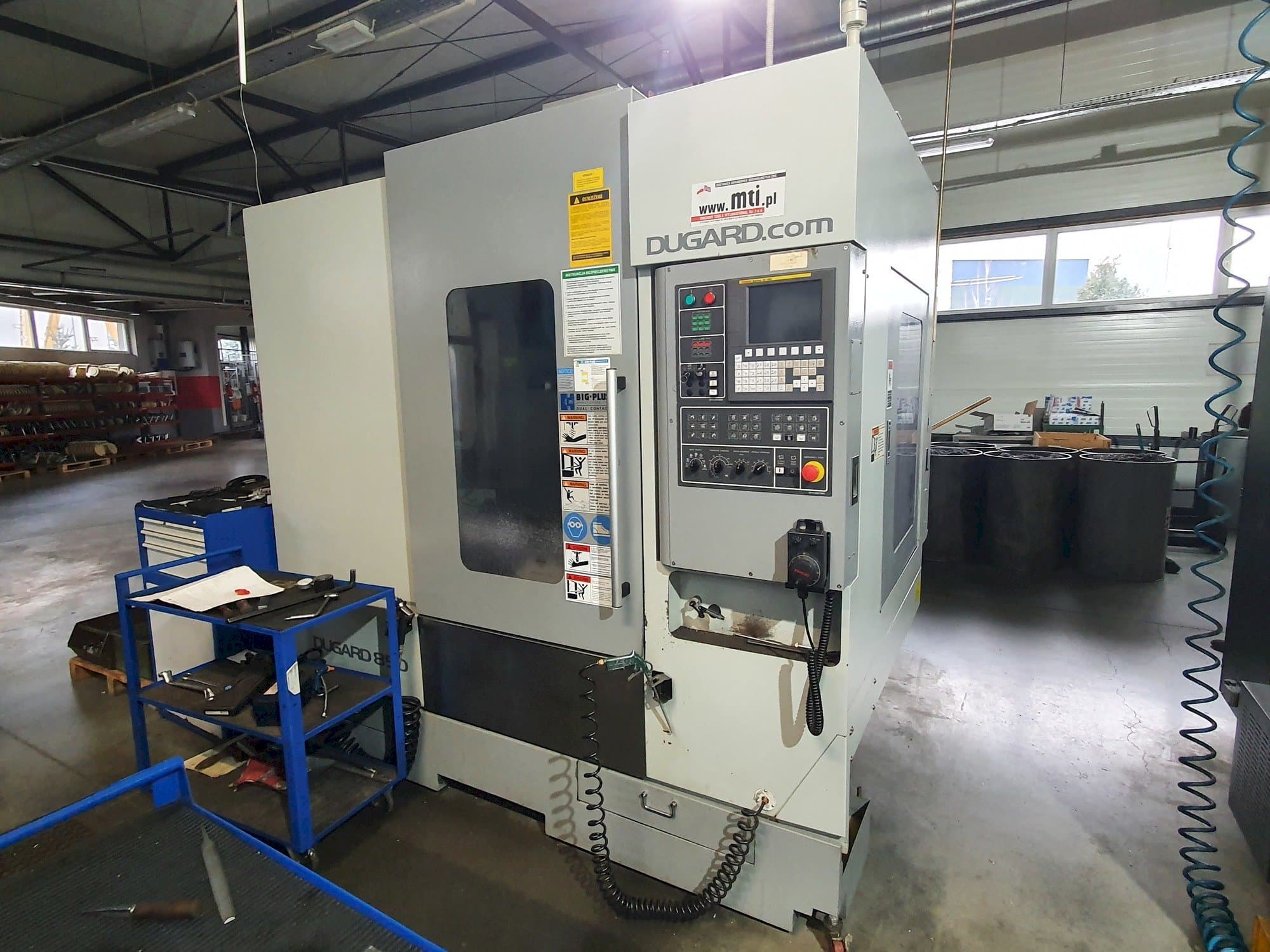

Dugard 850 VMC Vertical Machine Center

Show in original language

This Dugard 850 VMC vertical machine center was manufactured in 2012 in Poland. It has a total of 10857 working hours, of which 3505 are spindle hours. The 3 axis machine operated through a Fanuc 0iMD control unit. This machine has a spindle speed up to 10000 rpm. The machine is in a very good working condition. It is still at the production and ready for tests. It has its full service documentation and operation and maintenance manual of the control system.

Overview

brand: Dugard
year: 2012
MODEL: 850 VMC
production hours: 10857
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Dugard 850 VMC

General Data

Measurements width: 2300 mm
Measurements depth: 2120 mm
Measurements height: 2580 mm
Machine weight: 5550 kg

Control Unit

Model: 0iMD
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 850 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 530 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 24 m/min

Table

Outer length: 1000 mm
Outer width: 510 mm
Table load: 500 kg

Tools

Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 15 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. X, y, z feed rate: 10000 mm/min
- - Positioning accuracy (p): 0. 005 mm
- - Repeatability (ps): 0. 003 mm
- - Spindle iso 40 spindle taper
- - Cooling system: coolant supply through the spindle (option included)
- - Control system - the spindle (option included)
- - Tool magazine capacity: 24 tools
- - Tool holder type bt40
- - Tool change time: 2. 0 - 4. 5 sec
Qualitative Machine Benefits:
- - External tool cooling system with coolant
- - External tools cooling system with compressed air
- - Chip flushing system
- - Coolant flush gun
- - Compressed air gun
- - Spindle blow-off
- - Automatic lubrication system
- - Ready for installing 4th axis (interface installed)
- - Workspace lighting
- - Extract from the operation and maintenance manual of the control system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
