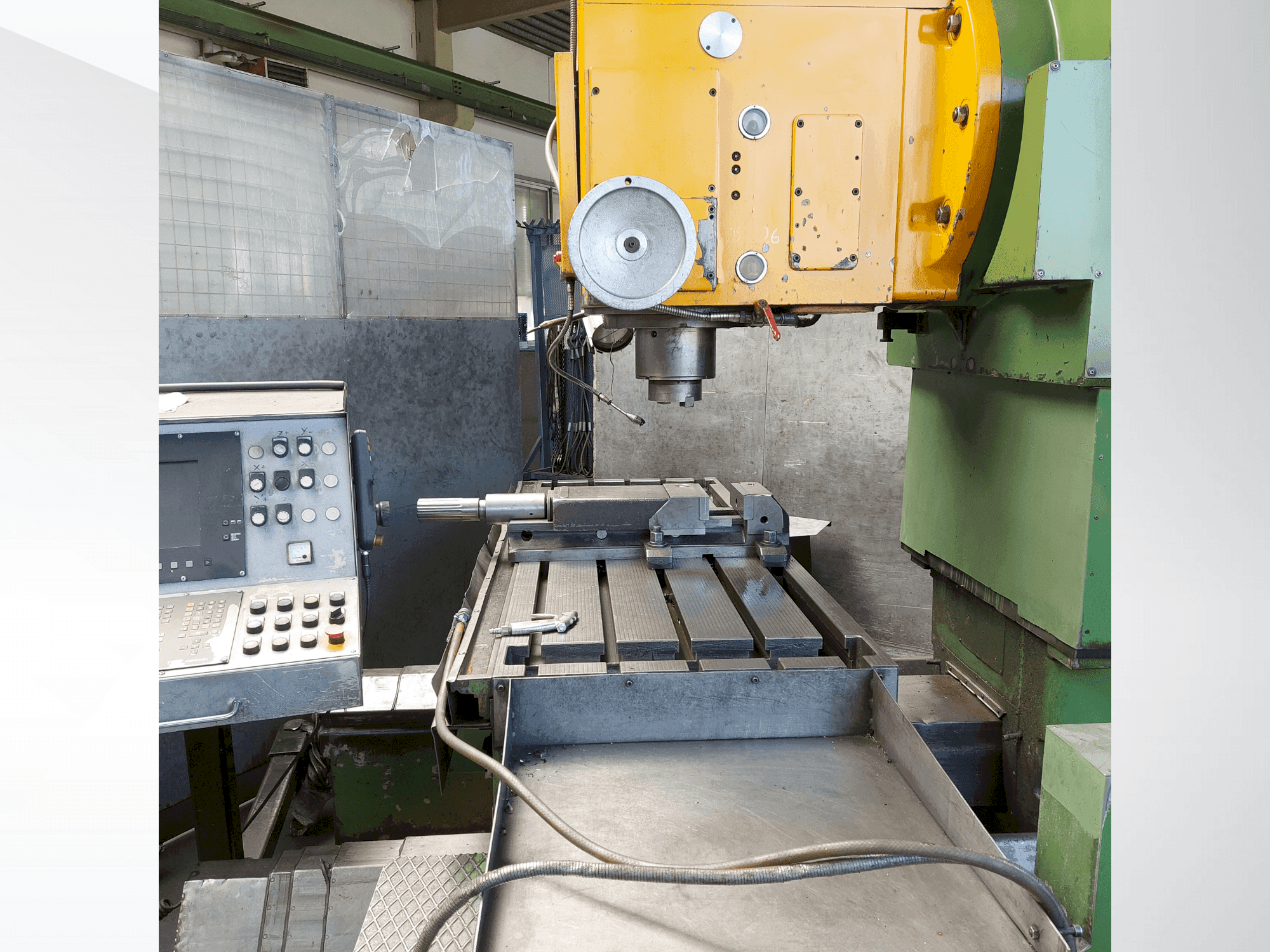

Working room of Droop & Rein FS 110  machine

Droop & Rein - FS 110DE-MIL-DRO-1976-00001

9,900 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Droop & Rein FS 110 milling machine was manufactured in 1976. It features a robust Heidenhain TNC 426 control, a main spindle power of approximately 18KW at 1600rpm, and a tool holder of ISA 50 (DIN 2080). The machine includes an electric tool clamp and automatic central lubrication. Ideal for precision milling, the Droop & Rein FS 110 machine we have for sale. A lot of additional accessories are included. Contact us for further details regarding this milling machine.

Overview

  • brand: Droop & Rein
  • year: 1976
  • MODEL: FS 110
  • application type: Milling
  • Location: Germany
  • machine type: Gantry Milling Machine
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - Droop & Rein FS 110

General Data

  • Measurements width: 3500 MM
  • Measurements depth: 2500 MM
  • Measurements height: 3600 MM

Control Unit

  • Model: TNC426
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 1600 rpm 1/MIN
  • Spindle motor power: 18 kW
  • Tool taper: ISA 50 (DIN 2080)

Movement

  • X-AXIS Movement: 1650mm
  • Y-AXIS Movement: 720mm
  • Z-AXIS Movement: 800mm
  • W-Axis Movement: 200mm

    Additional Equipment

    • - Electric tool clamp
    • - Automatic central lubrication
    • - Optional: Various milling holders and a few milling cutters
    • - Cutter head holder with driver ring
    • - Mounting for screw in
    • - Recordings
    • - Holders and long holders for screwing in
    • - shingle head CK6 Cutter and knife head holder
    • - Round plate milling cutters with holder, Weldon - mounts
    • - Collet chucks different sizes // Thread cutting chuck and Alignment mandrel

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Overhauled in 1996 for improved performance and reliability
      • Qualitative Machine Benefits:
        • - Advanced control system with heidenhain tnc 426 for precise operations

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
