Doosan TT1800SY Lathe

Show in original language

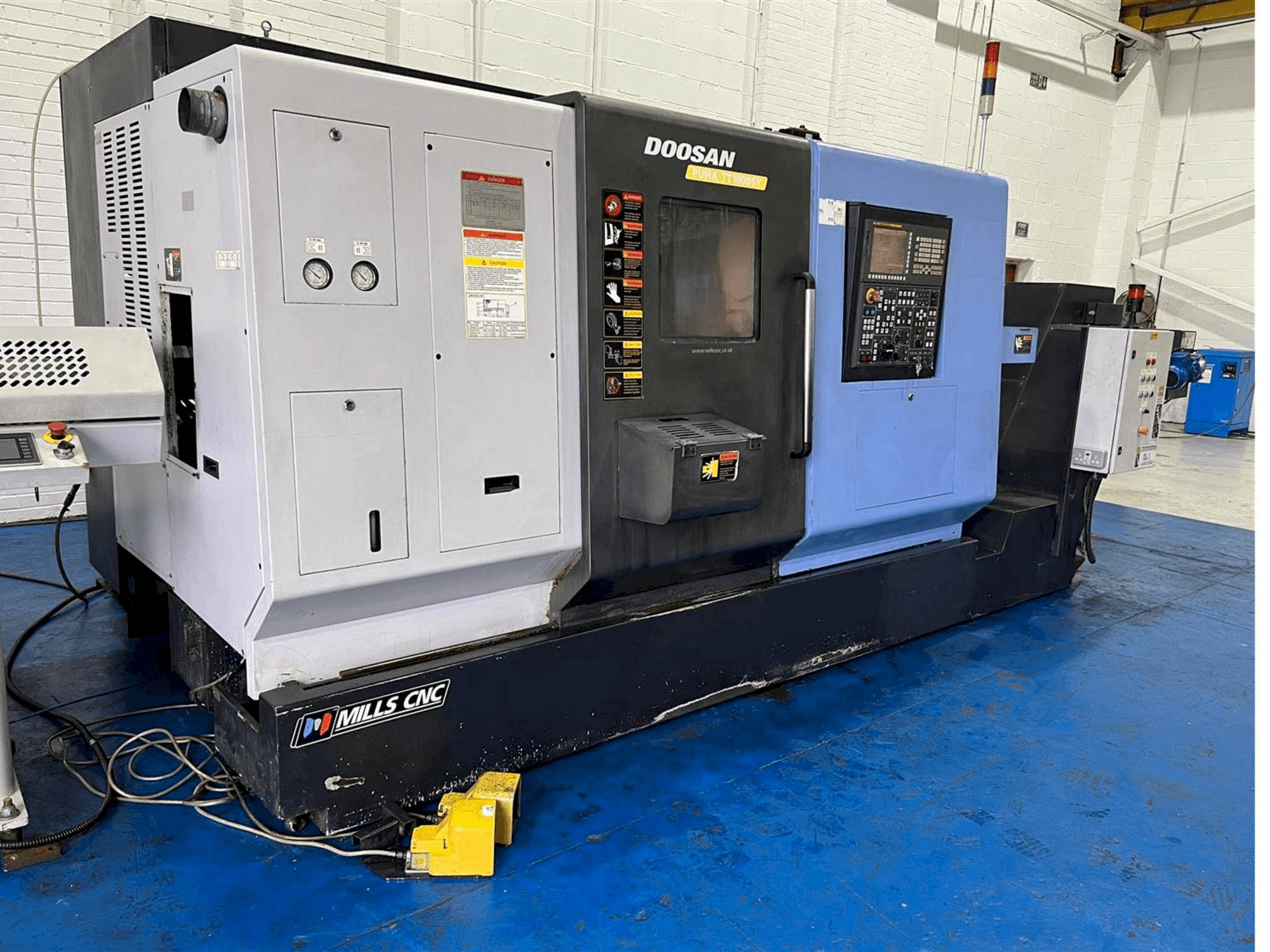

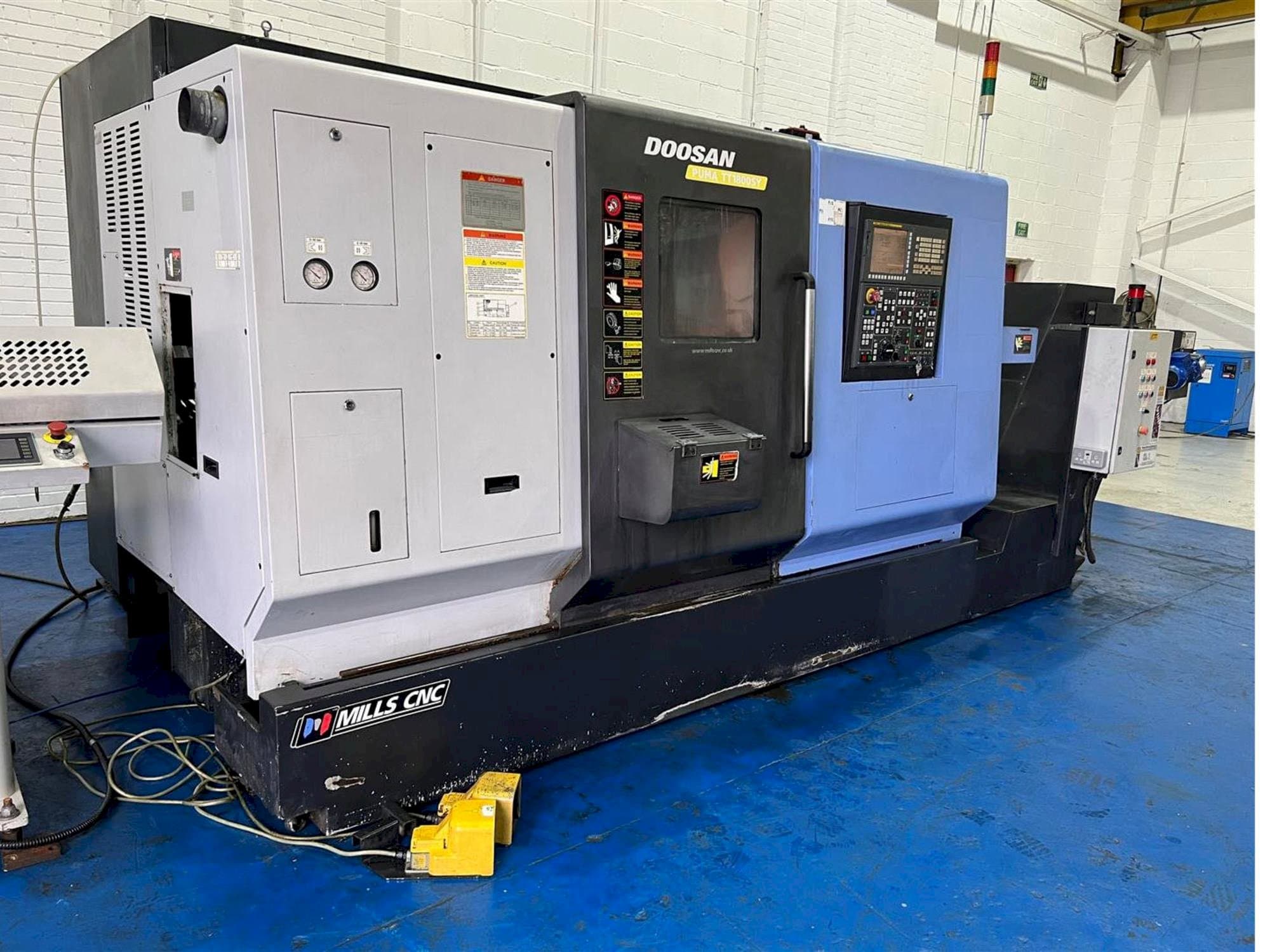

This Doosan TT1800SY Lathe was built in Korea in the year 2010. It is equipped with a FANUC 31I-A control unit. It has 9 axis, can work with one spindle speed up to 5000 rpm, and a bar capacity of 65 mm for both spindles. Includes chip conveyer and presents a very good condition.

Overview

brand: DOOSAN
year: 2010
MODEL: TT1800SY
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN TT1800SY

General Data

Measurements width: 3905 mm
Measurements depth: 2070 mm
Measurements height: 2080 mm
Machine weight: 8800 kg

Control Unit

Model: 31I-A
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Number of axis: 8

Movement

X-AXIS Movement: 165/190 mm
Y-AXIS Movement: +/- 50 mm
Z-AXIS Movement: 700/720 mm
A-AXIS Movement: 770 mm

Turret

Number of turrets: 2

Tools

Slots in storage: 12+12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over saddle 230 mm
- - "maximum turning diameter 230mm"
- - "maximum cutting length 230mm"
- - Bar capacity 65 mm for both spindles
- - Main spindle motor power 22/15 kw
- - Subspindle max. Speed 5000 rpm
- - 0. 001 degree c1 & c2 axis
- - Tool setter, coolant, y-axis, twin turret
- - 3 jaw chuck
- - Barfeed magazine hydrafeed mx1
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
