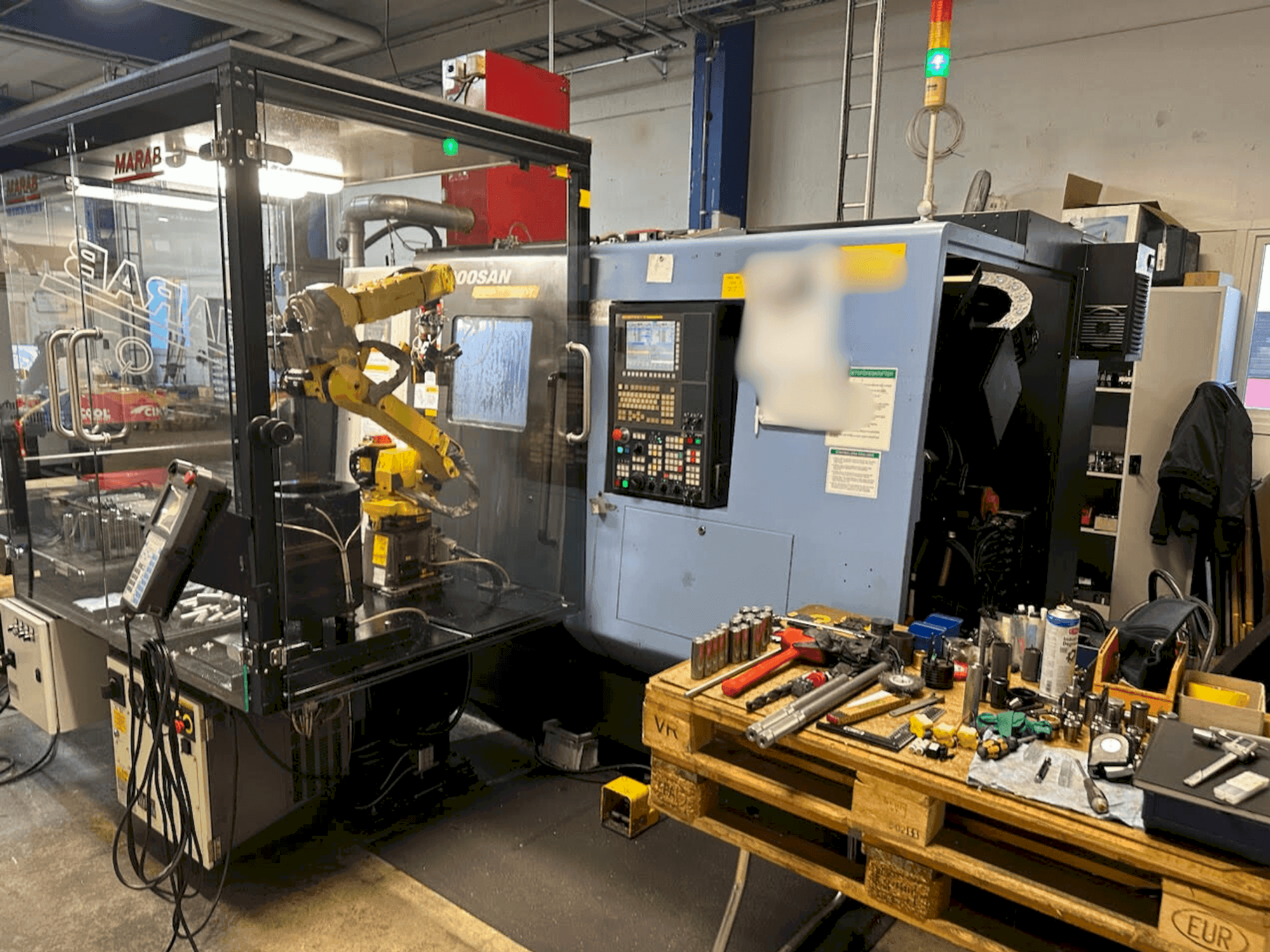

DOOSAN - PUMA TT 1800 SYSE-TUR-DOO-2014-00001

Additional Equipment

• - LNS bar interface
• - the robot is not included

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Max turning diameter: 230 mm
  • - Max turning length: 230 mm
  • - Bar capacity: 65 mm
  • - C1-c2 axis: 360, x2: 190 mm, z2: 720 mm
  • - 2 x 12 position turrets, all positions driven (24/24 index)
  • - Tool holder: bmt 55 p
  • - Driven tools: 5. 5 kw, max: 5000 rpm
  • - Coolant pump for main turret: 3. 7 kw, 14 mpa, 30 l/min
  • - Coolant supply via sub-/right spindle
  • - Belt-type oil skimmer, part ejector
• Qualitative Machine Benefits:
  • - Part ejector + internal cooling for sub-spindle
  • - Automatic electric tool measurement
  • - Air conditioning in the electrical cabinet
  • - Lns lamella-type chip conveyor
  • - Auto door for robot application
  • - Absolent air system mounted on the machine
  • - 3 pcs driven tools radially
  • - 4 pieces of m-l21590377d triple holders with v-offset, 2 pieces of m-l21590337e axial external holders, 2 pieces of m-l21590347d double holders (single l/h), 4 pieces of m-l21590367d double holders (external), 6 pieces of m-l21590317 single holders (external), 2 pieces of m-l21590387c single holders (external), and 6 pieces of m-l21590327b internal holders
  • - 3 pcs hard jaws

Extra information

• - Machine still under power
