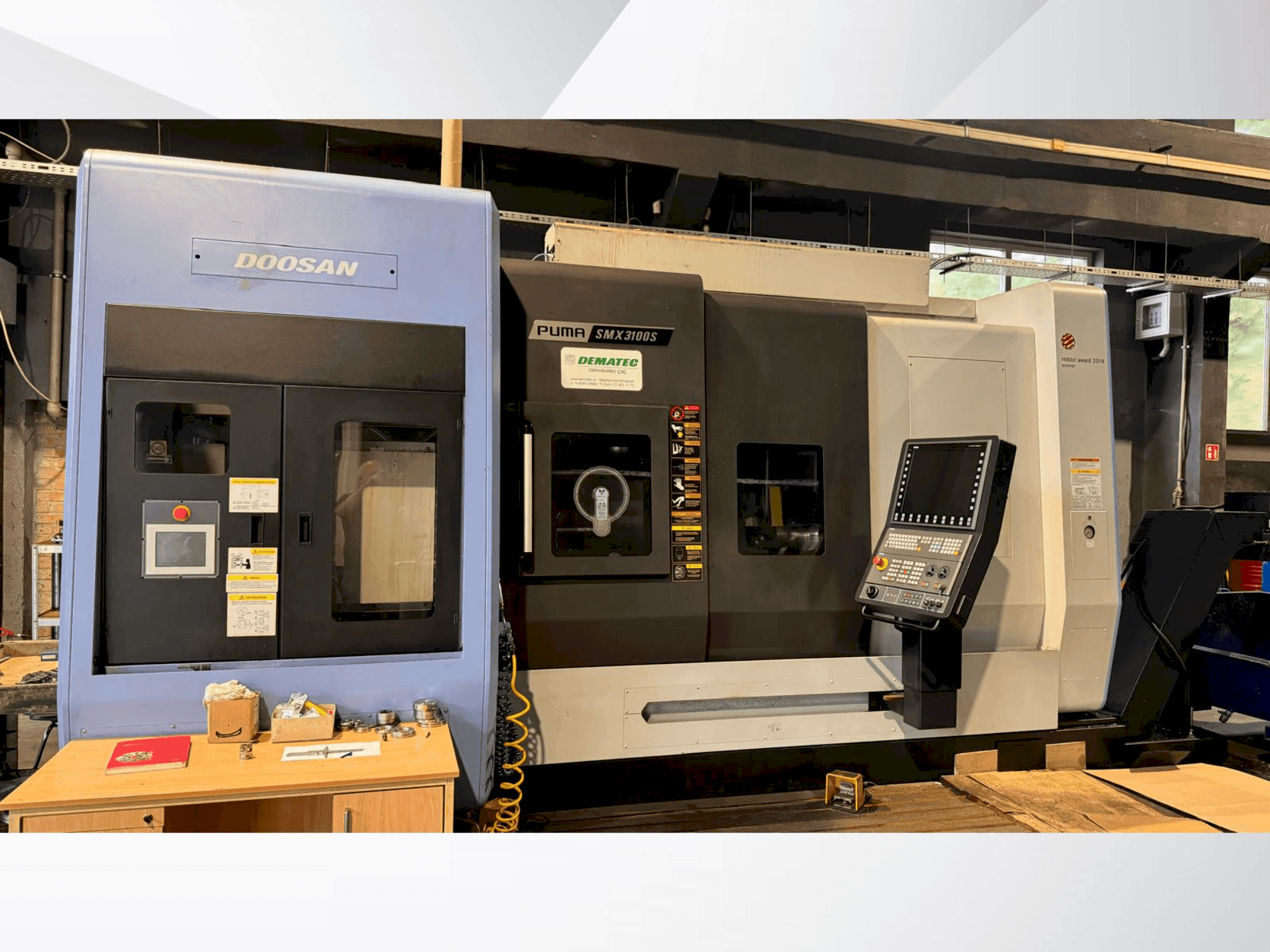

DOOSAN - PUMA SMX 3100 SPL-TUR-DOO-2019-00001

Additional Equipment

• - Air Gun // Coolant Gun
• - Automatic Workpiece Measurement: RMP60, Renishaw // Automatic Front Door: With Safety Device
• - Doosan Tool Load Monitoring
• - Linear Scale (X1 Axis): Absolute Pulse Coder // Linear Scale (Y Axis): Absolute Pulse Coder
• - Rotary Type Window Wiper: Electrical
• - Tool Setter: Automatic, Electric
• - Robot Interface: PROFIBUS-DP Type
• - Helical Interpolation
• - Arbitrary Speed Threading
• - Skiving Solution

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Coolant pump for milling spindle: 2. 2 kw, 7. 0 mpa
  • - Oil skimmer: belt type
  • - B-axis movement: 240º // c1-axis: 0. 0001º - 360º // c2-axis: 0. 001º - 360º
  • - High capacity tool storage (80 tools)
  • - Advanced control system (siemens sinumerik 840d sl)
  • - 2 hwr's chucks: the spindle is vt-s031 and the sub-spindle is vt-s026
• Qualitative Machine Benefits:
  • - High precision with linear scales and absolute pulse coder
  • - Enhanced safety and automation features (automatic front door, tool setter)

Extra information

• - Machine still under power VT-S031: Diameter: 315 mm Center bore: 91 mm Maximum pulling force: 60 kN Maximum clamping force: 150 kN Maximum rotational speed: 3000 rpm VT-S026: Diameter: 264 mm Center bore: 72 mm Maximum pulling force: 55 kN Maximum clamping force: 125 kN Maximum rotational speed: 3500 rpm

Payment Terms

• Payment in advance

•
