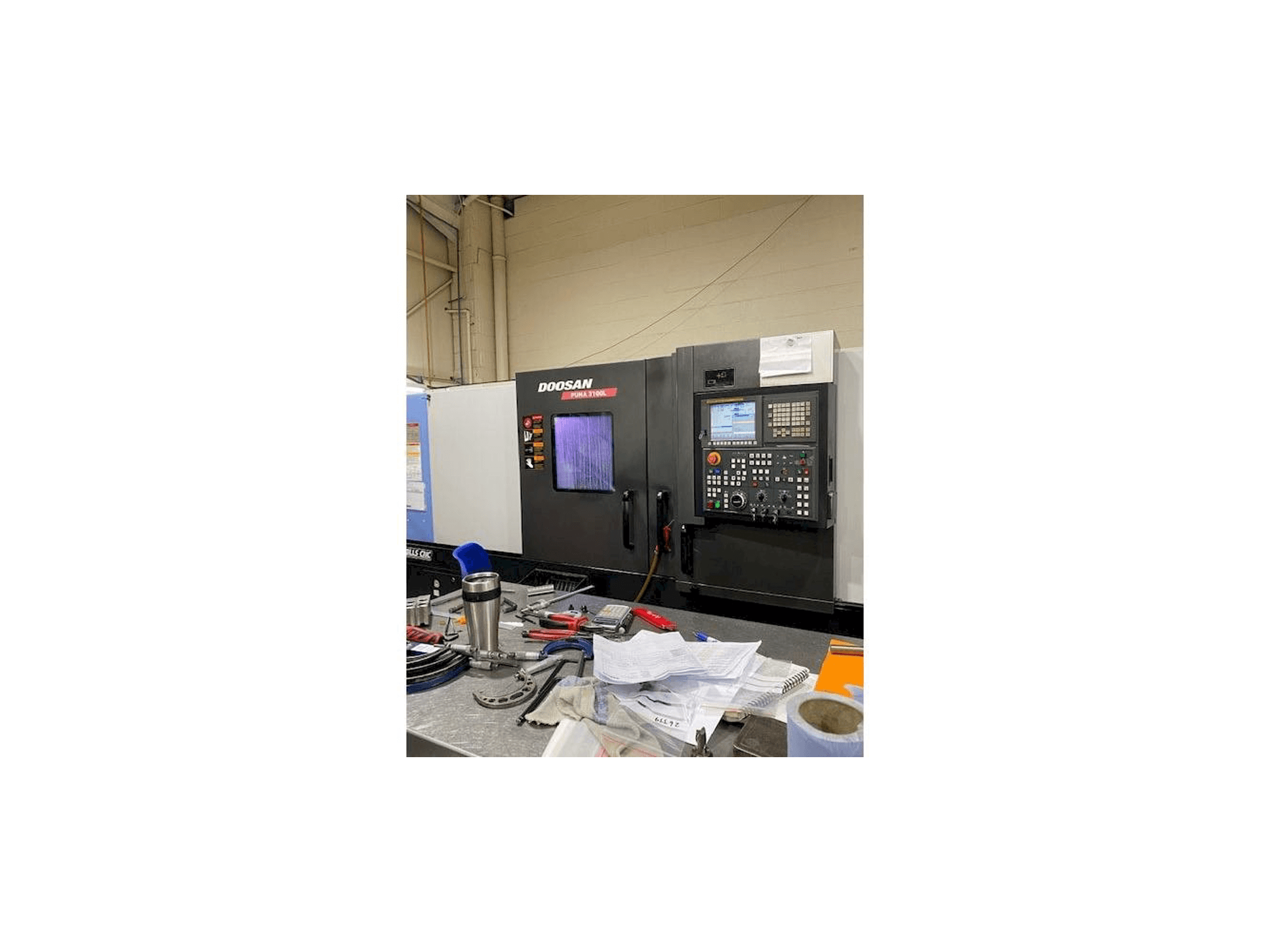

Doosan Puma 3100L Lathe

Show in original language

This Doosan Puma 3100L Lathe was made in 2013 in the United States. It is equipped with a FANUC i Series with iGuide control unit and has 2 axis. The machine has a spindle speed of 2800 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2013
MODEL: 3100L
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN 3100L

General Data

Measurements width: 5599 mm
Measurements depth: 2067 mm
Measurements height: 2010 mm
Machine weight: 7350 kg

Control Unit

Model: i Series with iGuide
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2800 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 293 mm
Z-AXIS Movement: 1350 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 10

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 850 mm
- - Swing over the cross-slide: 670mm
- - Maximum cutting diameter: 525 mm
- - Maximum cutting length: 1310mm
- - Spindle motor power: 22/18. 5kw
- - Spindle nose: a2-11
- - Bar capacity: 102mm
- - Rapid feedrates: xz: 30m/minute
- - 3tailstock quill diameter 100mm, mt #5
- - Swarf conveyor, tool setter, 3 jaw chuck, tooling, coolant, interlocked guards, low volt light
Qualitative Machine Benefits:
- - Very good condition!
- - Chuck diameter: 300mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
