Doosan LYNX 220 LMC Lathe

Show in original language

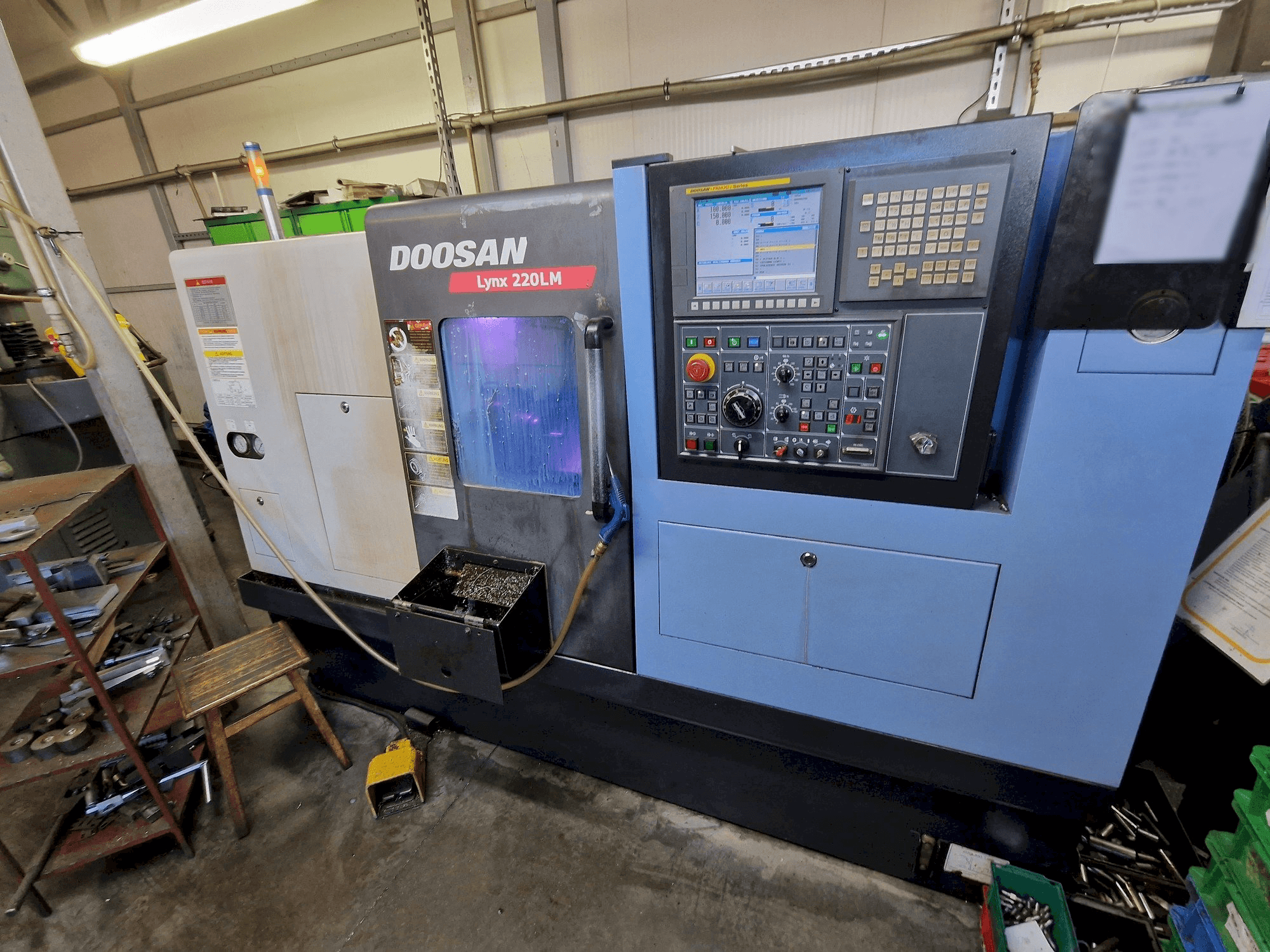

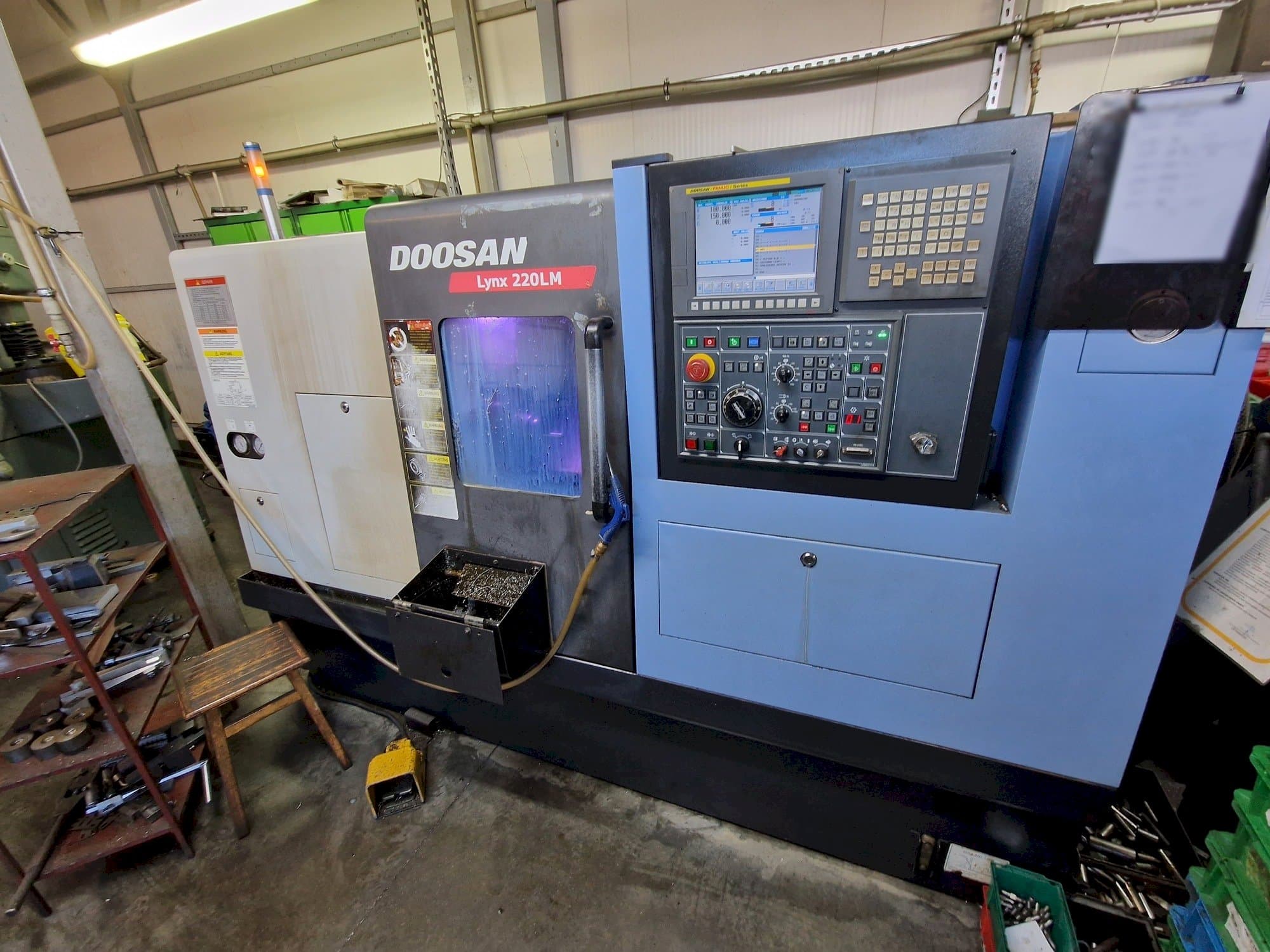

This Doosan LYNX 220 LMC Lathe was manufactured in the year 2013 in Korea and has 20254 working hours, of which 12094 are machining hours. It is equipped with a Doosan Fanuc i-Series control unit. The machine has a spindle speed of 4500 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2013
MODEL: LYNX 220 LMC
production hours: 20254
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN LYNX 220 LMC

General Data

Measurements width: 2410 mm
Measurements depth: 1600 mm
Measurements height: 1655 mm
Machine weight: 3300 kg

Control Unit

Model: i-Series
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN

Movement

X-AXIS Movement: 205 mm
Z-AXIS Movement: 550 mm
C-AXIS Movement: 0.001 deg MM

Workpiece

Workpiece weight: 300 kg

Turret

Number of tool slots: 12

Media

Power consumption: 25.6 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 510mm
- - Swing over saddle: 290 mm
- - Recommended turning dia. : 210 mm
- - Max turning dia. : 250 mm
- - Max turning length 510 mm
- - Bar working dia. : 65 mm
- - Chuck size: 8 inch
- - Spindle type a2#6 asa
- - Spindle diameter: 110 mm
- - Spindle bore: 76 mm
Qualitative Machine Benefits:
- - Rotary tools no. : 3 pcs
- - Rotary tools speed: 6000 rpm
- - Tailstock quill dia. : 65 mm
- - Tailstock travel: 80 mm
- - Collet chuck e185 qcrl60 kitagawa
- - Pump 7 bar
- - Tool probe renishaw
- - Part catcher
- - Chip ejector
- - Machine in very good working condition, ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
