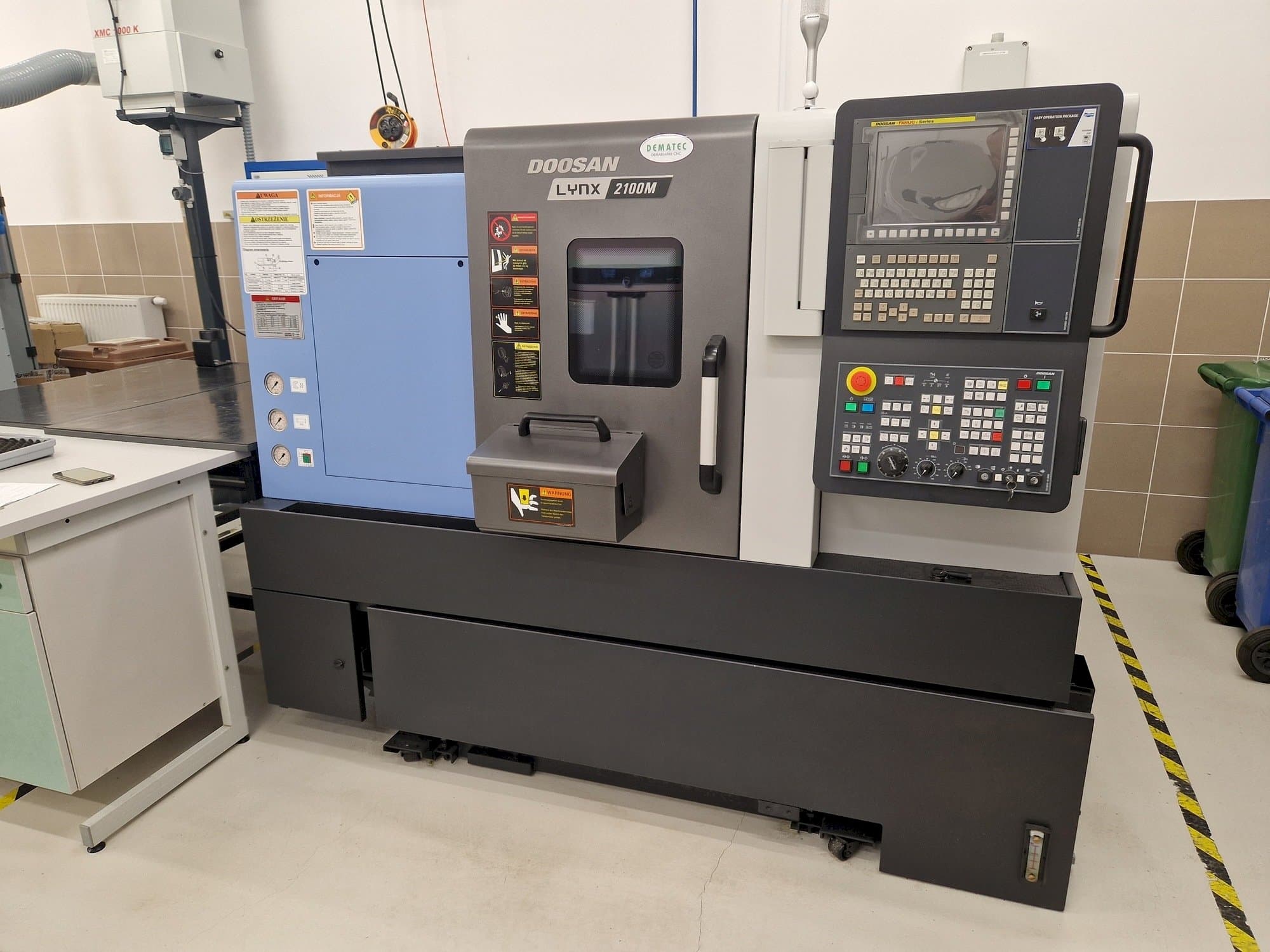

Doosan Lynx 2100MA Lathe

Show in original language

This Doosan Lynx 2100MA Lathe was built in the year 2017 and has 1188 power hours, of which 122 are production hours and 66 are spindle hours. It is equipped with a Fanuc Series control unit. The machine has a spindle speed of 6000 rpm and includes 12 pcs tool holders.

Overview

brand: DOOSAN
year: 2017
MODEL: Lynx 2100MA
production hours: 1188
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 2100MA

General Data

Measurements width: 2320 mm
Measurements depth: 1595 mm
Measurements height: 1693 mm
Machine weight: 2750 kg

Control Unit

Model: 0–iTF with 10.4’’ LCD
Brand: FANUC

Main drive

Spindle speed range: 6000 rpm 1/MIN

Movement

X-AXIS Movement: 205 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 340 mm
Z-AXIS Rapid traverse: 36 m/min
C-AXIS Movement: 360' (0.001) MM
C-AXIS Rapid traverse: 200 rpm

Tools

Number of stations: 12 pcs (4 rotary, 8 fixed)
Type of tool holder: BMT 45 P

Media

Main electronic connection: 380V / 50 Hz
Power consumption: 25.94 kVA

Additional Equipment

- 12 pcs tool holders
- Turret configuration: 4 pcs live tools, 8 pcs fixed tools
- EZ Guide: graphic interface for programing, Part catcher
- Rediness to work with a bar feeder and chip conveyor
- Pomp: 7 bar
- Programmable tailstock
- Box for chips
- Tools monitoring system
- Some accesories and tooling
- Docs: PL/EN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 600 mm
- - Swing over saddle: 400 mm
- - Recommended turning diameter: 170 mm
- - Max. Turning diameter: 300 mm
- - Max. Turning length: 290 mm
- - Chuck size inch: 6’’
- - Bar working diameter: 51 mm
- - Servo motor: x axis 1. 8 kw, z axis 1,8 kw
- - Max. Id tool size mm (inch) 40 (1. 6) 32 (1. 3)
- - Turret indexing time s 0. 11 {0. 15}* 0. 11 max. Rotary tool speed
Qualitative Machine Benefits:
- - Diameter of passage over bed 600 mm
- - Maximum turning diameter 300 mm
- - Maximum length of turning 290 mm
- - Permissible weight in chuck: 70 kg
- - Rod diameter in spindle 51 mm
- - Spindle holder: 170 mm, spindle type: a2#5 asa, spindle diameter (front/rear) (90/80) mm
- - Spindle bore: 61 mm, spindle taper clearance: dia. 52 mm
- - Spindle clearance: 52 mm, cylinder clearance: 52 mm, spindle drive motor power (continuous/30 min) 15/11 kw (s325%/15 min cont. )
- - Maximum spindle torque: 127 nm
- - Tool size: 20 x 20 mm, siła zacisku 48 kn, position tool change 1 position: 0. 15 s

Extra information

- The machine is in perfect condition, newer used on a production, like a new. Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
