Doosan Lynx 2100A Lathe

Show in original language

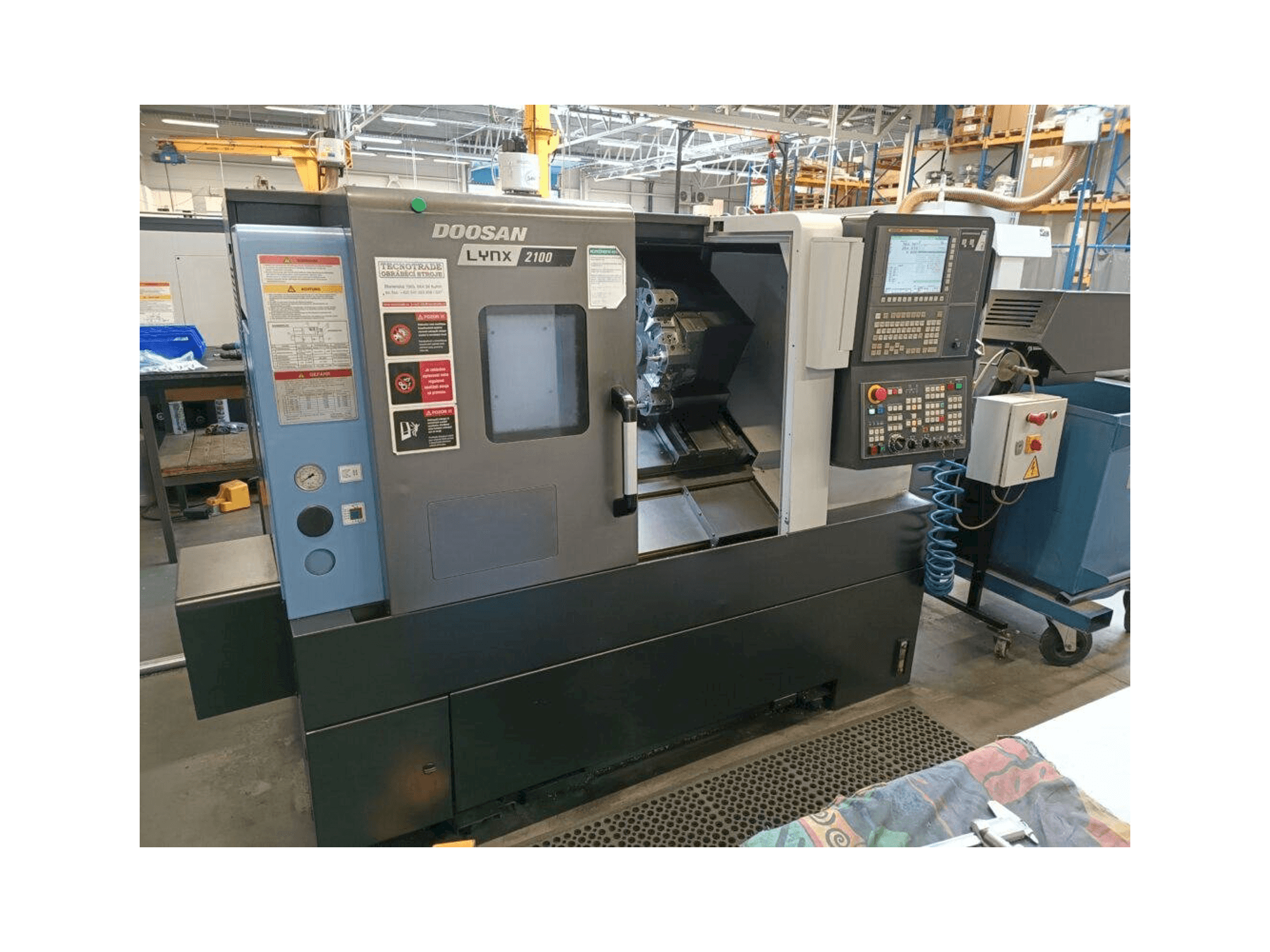

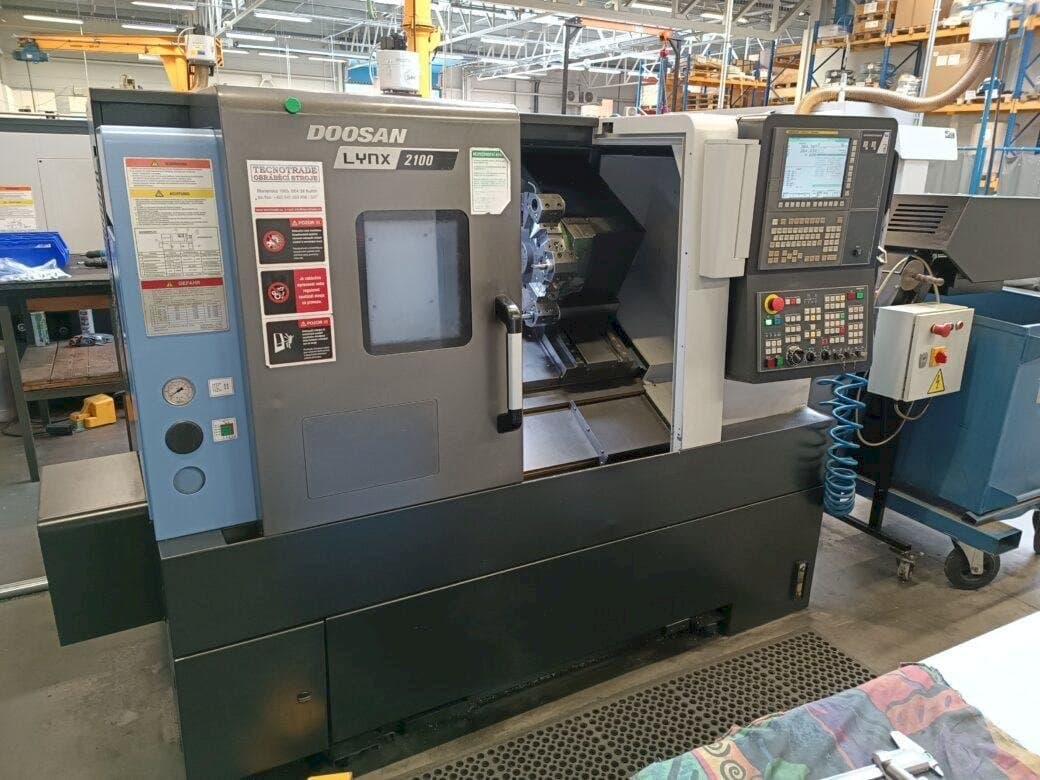

This Doosan Lynx 2100A Lathe was made in 2017 in South Korea and has 5122 production hours. It is equipped with a Fanuc i-Series control unit and has 2 axis. The machine has a spindle speed of 6000 rpm, is in good condition, and is well maintained.

Overview

brand: DOOSAN
year: 2017
MODEL: Lynx 2100A
production hours: 5122
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 2100A

General Data

Measurements width: 2570 mm
Measurements depth: 1595 mm
Measurements height: 1693 mm
Machine weight: 2700 kg

Control Unit

Model: i-Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 205 mm
Z-AXIS Movement: 340 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Power consumption: 24,21 kVa

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 600 mm, over carriage 400 mm
- - Maximum machining diameter 350 mm
- - Maximum machining length 330 mm
- - Through hole diameter 52 mm
- - Main spindle motor power 15 kw
- - Rapid feedrates xz: 30 x 36m/minute
- - Spindle nose a2-6
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
