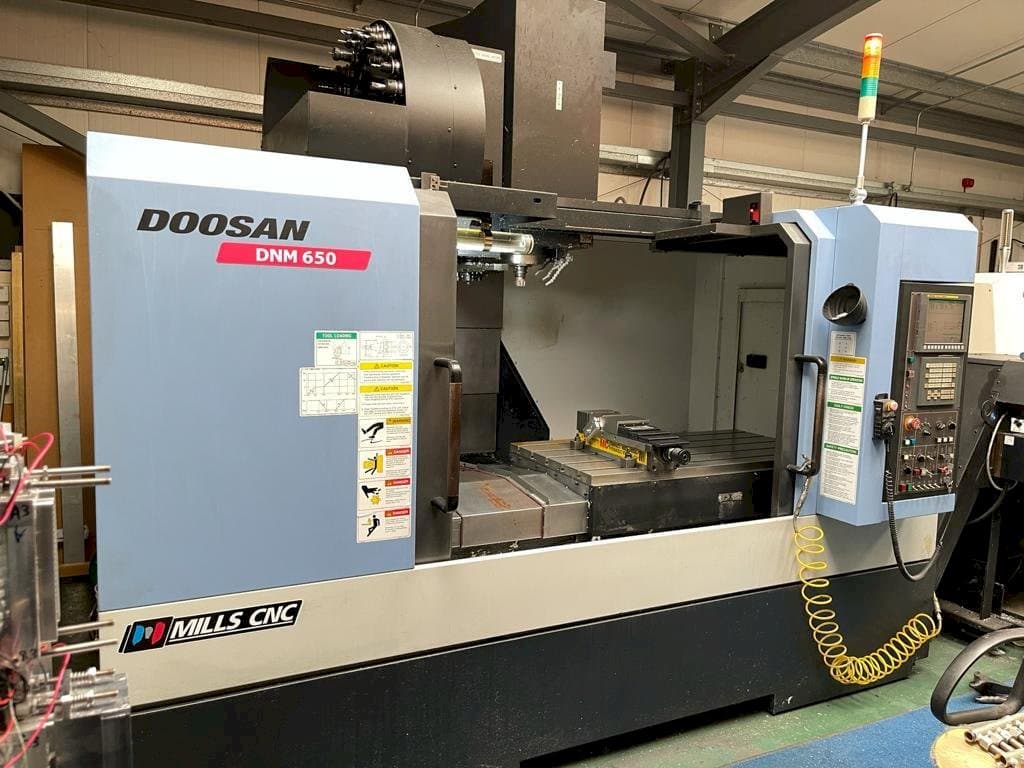

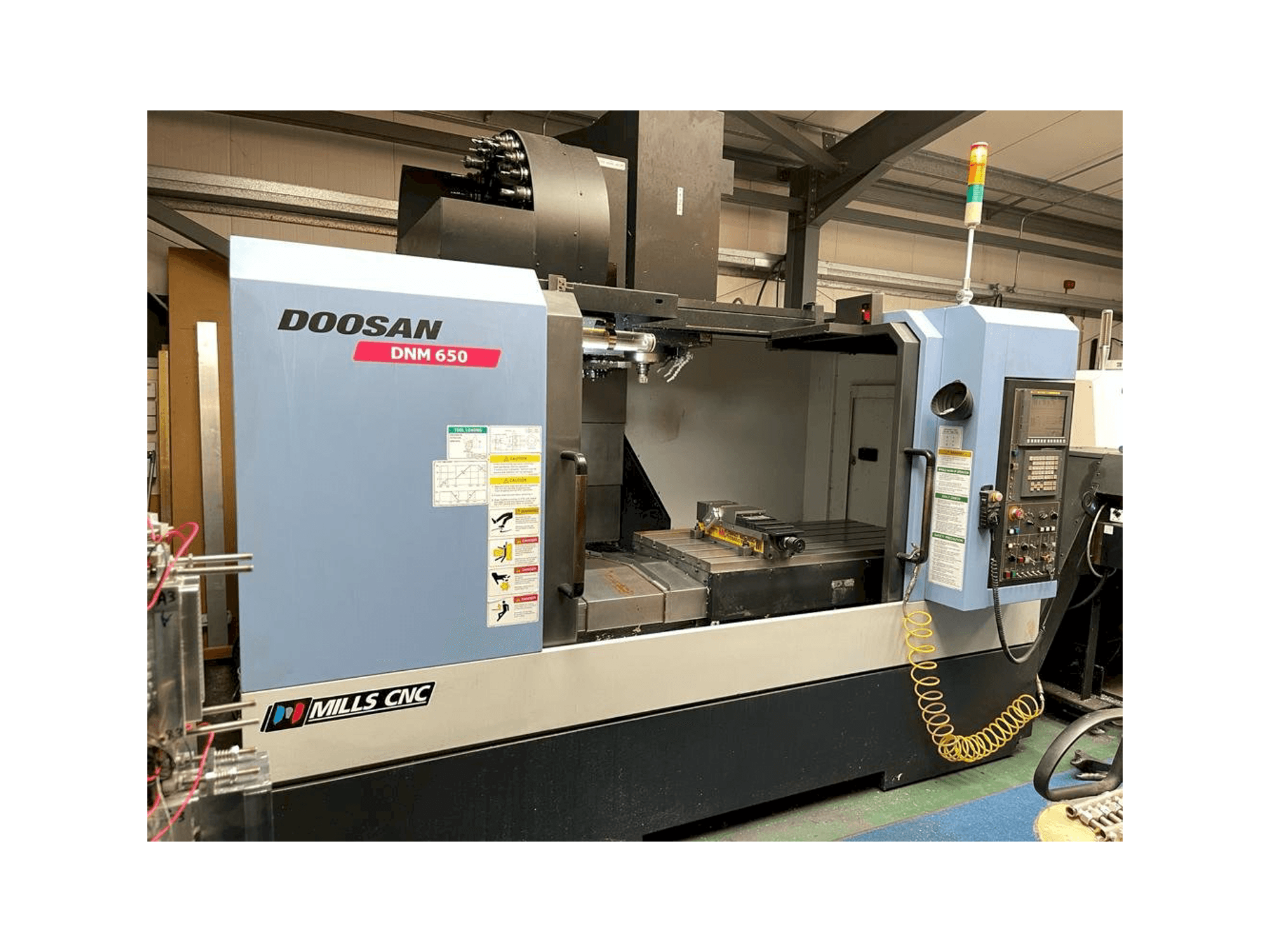

Doosan DNM 650 Vertical Machining Center

Show in original language

This Doosan DNM 650 Vertical Machining Center was made in the year 2012 in South Korea. This 3 axis machine operates through a FANUC i Series control unit. It has a spindle speed up to 12000 rpm. It is in very good working conditions.

Overview

brand: DOOSAN
year: 2012
MODEL: DNM 650
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM 650

General Data

Measurements width: 4345 mm
Measurements depth: 2720 mm
Measurements height: 2815 mm
Machine weight: 8500 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 15 kW
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 670 mm
Z-AXIS Movement: 625 mm

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1300 mm
Outer width: 670 mm
Number of tslots: 5

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: BT 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance from spindle centre to column: 747 mm
- - Spindle centre to column: 747 mm
- - Min - max height under spindle: 150 ~ 775 mm
- - Rapid feedrates xyz: 36 x 36 x 30m/minute
- - Tool change time (chip to chip) 3. 7 seconds
- - Through spindle coolant, coolant
- - Interlocked guards, low volt light, manuals, remote hand wheel
- - Swarf conveyor
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
