DOOSAN - dnm 4505SI-MIL-DOO-2024-00003

Name: DOOSAN dnm 4505
Brand: DOOSAN
SKU: SI-MIL-DOO-2024-00003
Price: 83000 EUR
Availability: InStock

83,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN dnm 4505 For sale | gindumac.com

Show in original language

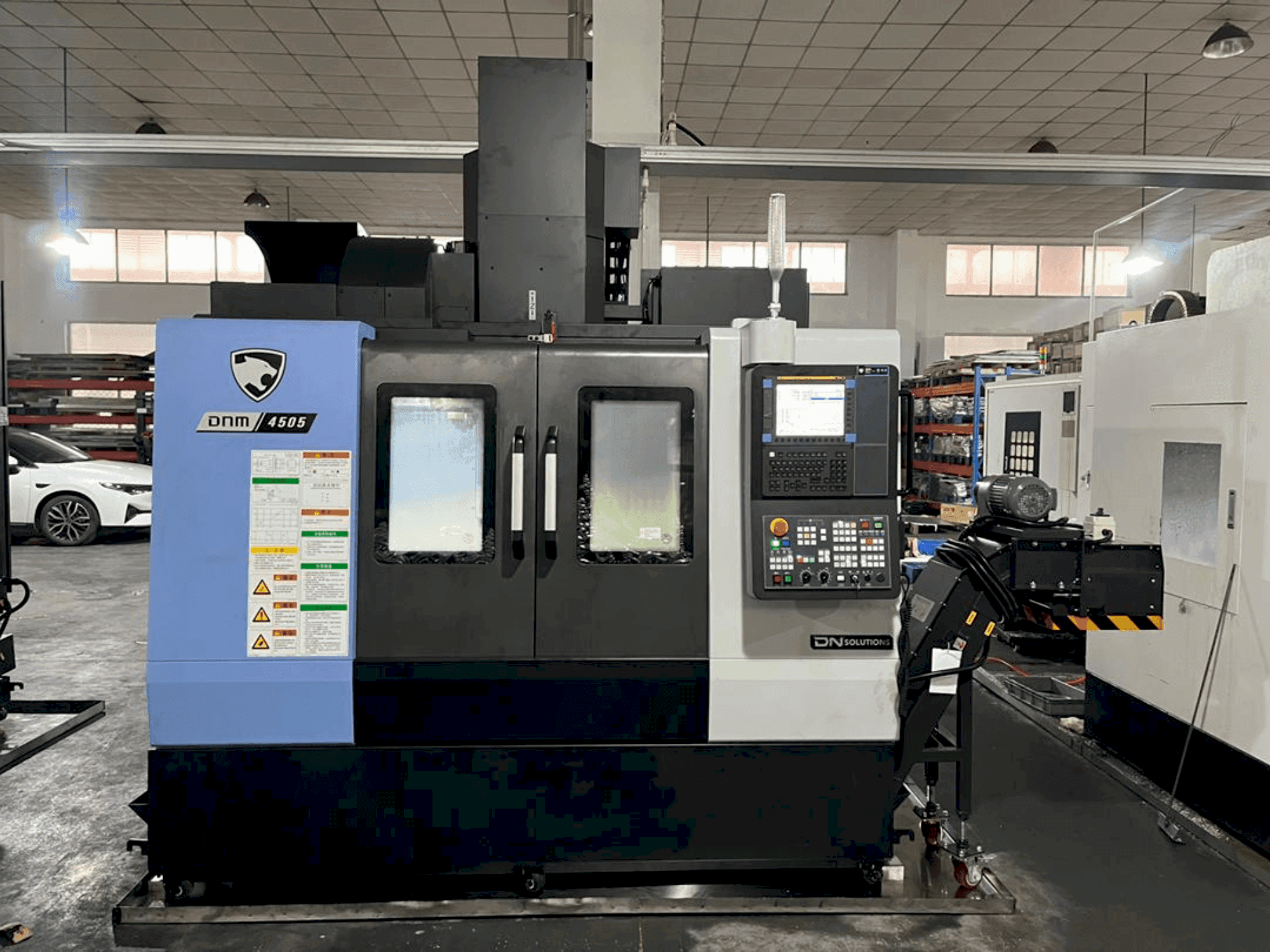

This 3-axis DOOSAN dnm 4505 vertical machining center was manufactured in 2024. It features a robust FANUC 0iPLUS control system, a spindle speed up to 12,000 r/min, and a table size of Φ1000 x 450 mm with a loading capacity of 600 kg. The machine also includes a 24-tool capacity ATC, rapid traverse rates of 36/36/30 m/min, and a high spindle motor power of 18.5/11 kW. For more information about this vertical machine center, please reach out to us.

Overview

brand: DOOSAN
year: 2024
MODEL: dnm 4505
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN dnm 4505

General Data

Measurements width: 2985 mm
Measurements depth: 2158 mm
Measurements height: 2615 mm
Machine weight: 5000 kg

Control Unit

Model: 0iPLUS
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 18.5/11 kW
Tool taper: ISO#40 7/24
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 510 mm

Tools

Number of index: 24

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Assembly & Operation Tool
- Standard Cooling System // Cooling Box and Chip Tray
- Built-in Screw Chip Conveyor
- Installation Parts
- Full Enclosure Splash Guard
- Signal Tower (Red, Yellow, Green)
- Work Light
- MPG (Manual Pulse Generator)
- Safety Door Interlock Device
- 10.4" Color Display

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X, y, z absolute pulse encoder
- - Fast tool change times (tool-to-tool: 1. 2 s, chip-to-chip: 3. 2 s)
Qualitative Machine Benefits:
- - Robust control with fanuc 0iplus
- - High precision with absolute pulse encoder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
