DOOSAN - DNM 400 alphaIT-MIL-DOO-2018-00001

Name: DOOSAN DNM 400 alpha
Brand: DOOSAN
SKU: IT-MIL-DOO-2018-00001
Price: 33000 EUR
Availability: InStock

33,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN DNM 400 alpha For Sale | gindumac.com

Show in original language

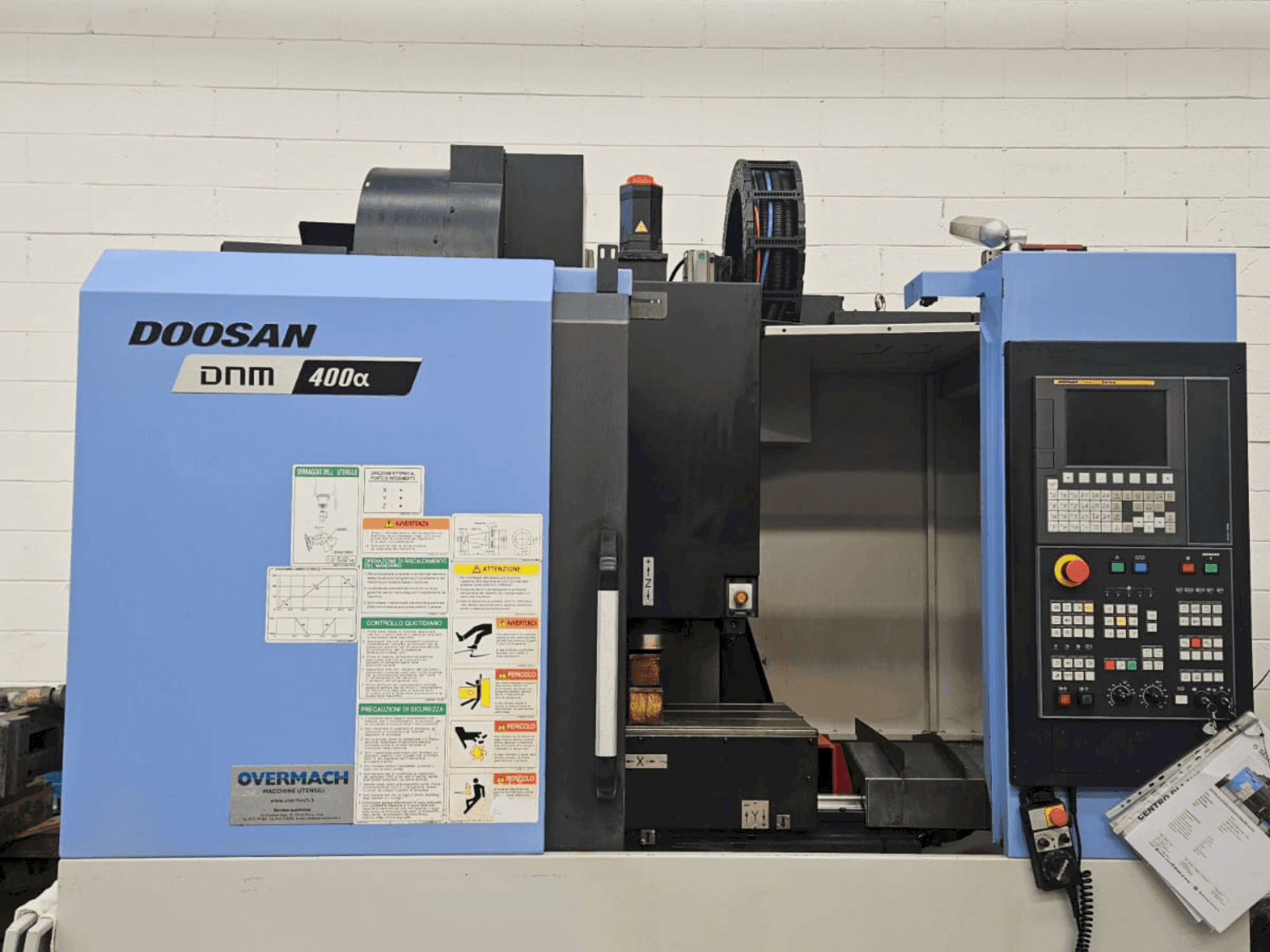

This 3-axis DOOSAN DNM 400 alpha vertical machining centre was manufactured in 2018. It features a FANUC CNC system, rapid traverse speeds up to 30 m/min, and a maximum spindle speed of 8,000 rpm. The machine can handle a maximum load of 400 kg with a table surface of 790 x 435 mm. If you are looking to get high-quality milling capabilities, consider the DOOSAN DNM 400 alpha machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2018
MODEL: DNM 400 alpha
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN DNM 400 alpha

General Data

Measurements width: 2092 mm
Measurements depth: 2316 mm
Measurements height: 2201 mm
Machine weight: 5000 kg

Control Unit

Brand: FANUC
Model: i Series

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 7.5/11 kW
Number of axis: 3

Movement

X-AXIS Movement: 635 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 435 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 465 mm KG

Tools

Slots in storage: 20
Max weight: 8 kg
Max tool diameter: Ø80 mm
Max tool length: 300 mm
Type of tool holder: MAS406 BT40 / CAT 40 / DIN 69871-A40

Clamping unit

Clamping force: 750 kgf KN

Additional Equipment

- Manuals and CE Declaration of Conformity included.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum torque: 71. 4 nm
- - Max. Cutting feedrate: 1000–15000 mm/min
- - Positioning accuracy: ±0. 005 mm
- - Repeatability: ±0. 002 mm
- - Surface type: t-slot
- - Spindle nose to table surface distance: 150–660 mm
- - Table surface dimensions: 790 x 435 mm
- - Tool-to-tool time: 1. 3 seconds

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
