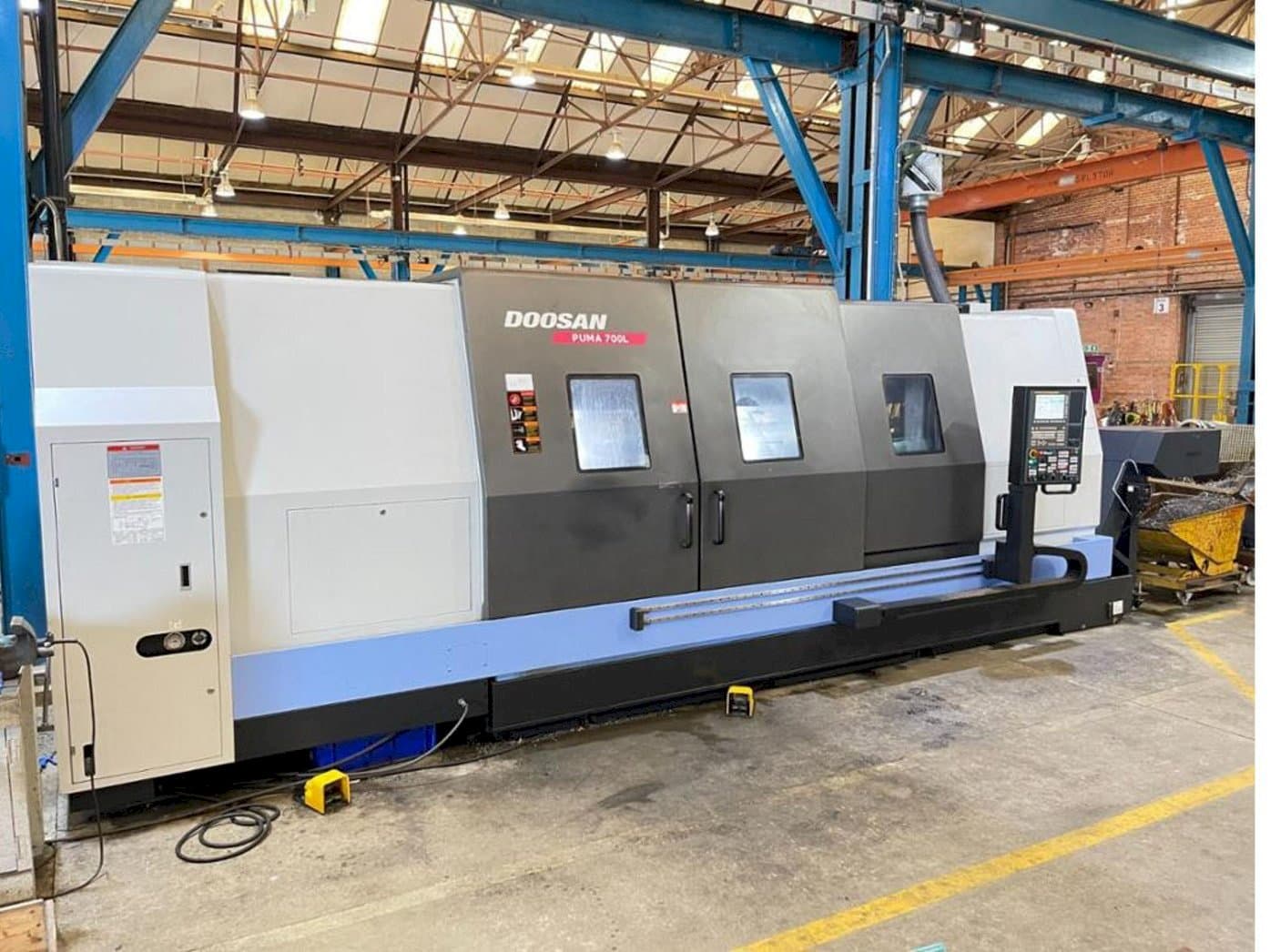

Doosan Puma 700L Lathe

Show in original language

This Doosan 700L Lathe was manufactured in the year 2014 in South Korea. It is equipped with a Fanuc Series 32i-Model B control unit and has 2 axis. The machine has a spindle speed of 1500 rpm.

Overview

brand: DOOSAN
year: 2014
MODEL: 700L
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN 700L

General Data

Measurements width: 8510 mm
Measurements depth: 2770 mm
Measurements height: 2590 mm
Machine weight: 21800 kg

Control Unit

Model: Series 32i-Model B
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 1500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 470 mm
Z-AXIS Movement: 470 mm 3235

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Max tool diameter: 32x32 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing 1030 mm
- - Swing over the cross-slide: 800mm
- - Maximum cutting diameter : 900mm
- - Maximum cutting length: 3200mm
- - Bar capacity: 164mm
- - Chuck size: 609mm
- - Rapid feedrates: xz: 12 x 10m/minute
- - Spindle motor power: 45/37kw
- - Tailstock body travel: 3135mm, quill diameter 160mm, quill stroke 150mm, taper mt #6
- - Spindle nose: a1-15
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
