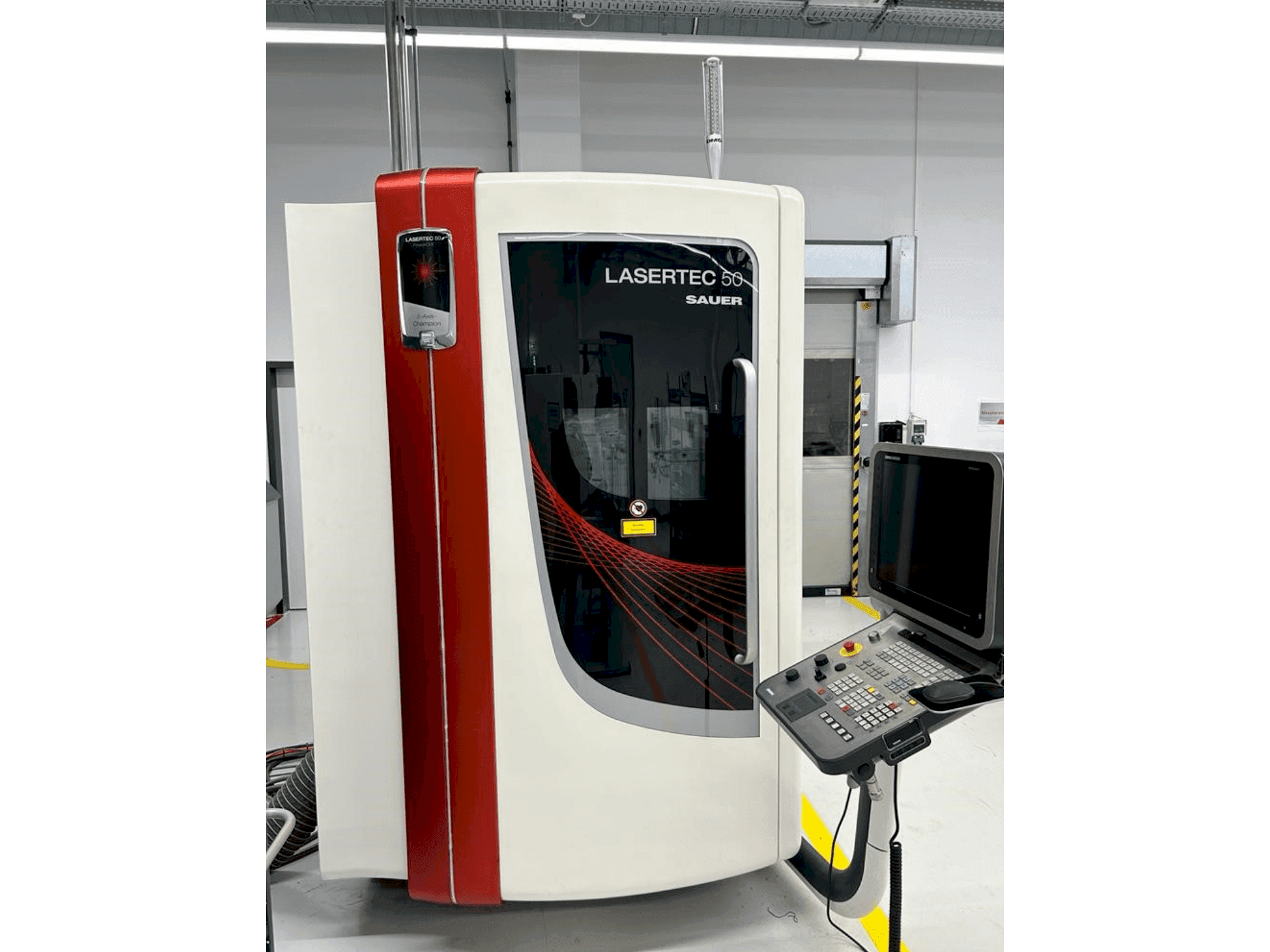

DMG - SAUER LASERTEC 50DE-MIL-DMG-2010-00002

Additional Equipment

• - LASAG FLS 352 A laser (2011)
• - Keller L-CUT-1-P2-B60-V extraction system (2010)
• - KKT OLB 10 SA chiller (2014)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Basic machine: cnc laser precision machine // lasertec 50 precisiontool 500 mm x 500 mm x 700 mm traverse path // cross slide with linear drives // vertical axis (z-axis) with linear guides and ball screw drive // full enclosure (laser protection class 1) with 1 laser safety window // solid machine base frame made of mineral casting // lasag nd:yag laser fls (300 watts) // processing head (100 mm focal length) // motorized expander 1 - 6 times // rod quality
  • - Control unit: 3d path control // siemens 840 d solutionline
  • - Work table: nc swivel rotary table // highly dynamic and precise // with two torque motors for workpieces up to 200mm diameter // max. Load up to 14 kg
  • - Work table options: ks attachment flange // hsk-63 with radial and angular alignment for manual clamping clamping of the customer pallet 200 x 280 mm // pallet requires an hsk-63 holder
  • - Camera through beam path with gooseneck led incident light source // collision switch for processing head (3-axis acting)
  • - Control options: 5-axis transformation // electronic handwheel // programmable process gas pressure
  • - Mg signal light display of 4 machine statuses: "program active", "laser warning", "fault", "setup mode"
  • - 3d measuring probe renishaw omp 400 automatically extending
  • - Additional laser protection window 297 mm x 210 mm // extraction unit with secondary filter stage // cooling unit for laser fls and linear motors // water-water heat exchanger
  • - Dmg powertools
• Qualitative Machine Benefits:
  • - Cutting of pcd / cbn blanks in three to five axes: 10x faster compared to wire edm
  • - Laser cutting of pcd / cbn inserts in 2d and directly on the shank tool
  • - 5-axis precision machine with linear drives in x / y for > 1g acceleration
  • - Highly dynamic torque motors in both rotary axes (b- and c-axis)
  • - High positioning accuracy of ≤ 8 μm
  • - Ccd camera and 3d touch probe for fast set-up
  • - User-friendly siemens 840d solutionline with special software features
  • - A very good accessibility of the laser for adjustment and maintenance work
  • - No special process gas is used. Only 6 bar compressed air is required
  • - Machine can work 5 axis simultaneously

Extra information

• - Machine is currently in production but immediately available
