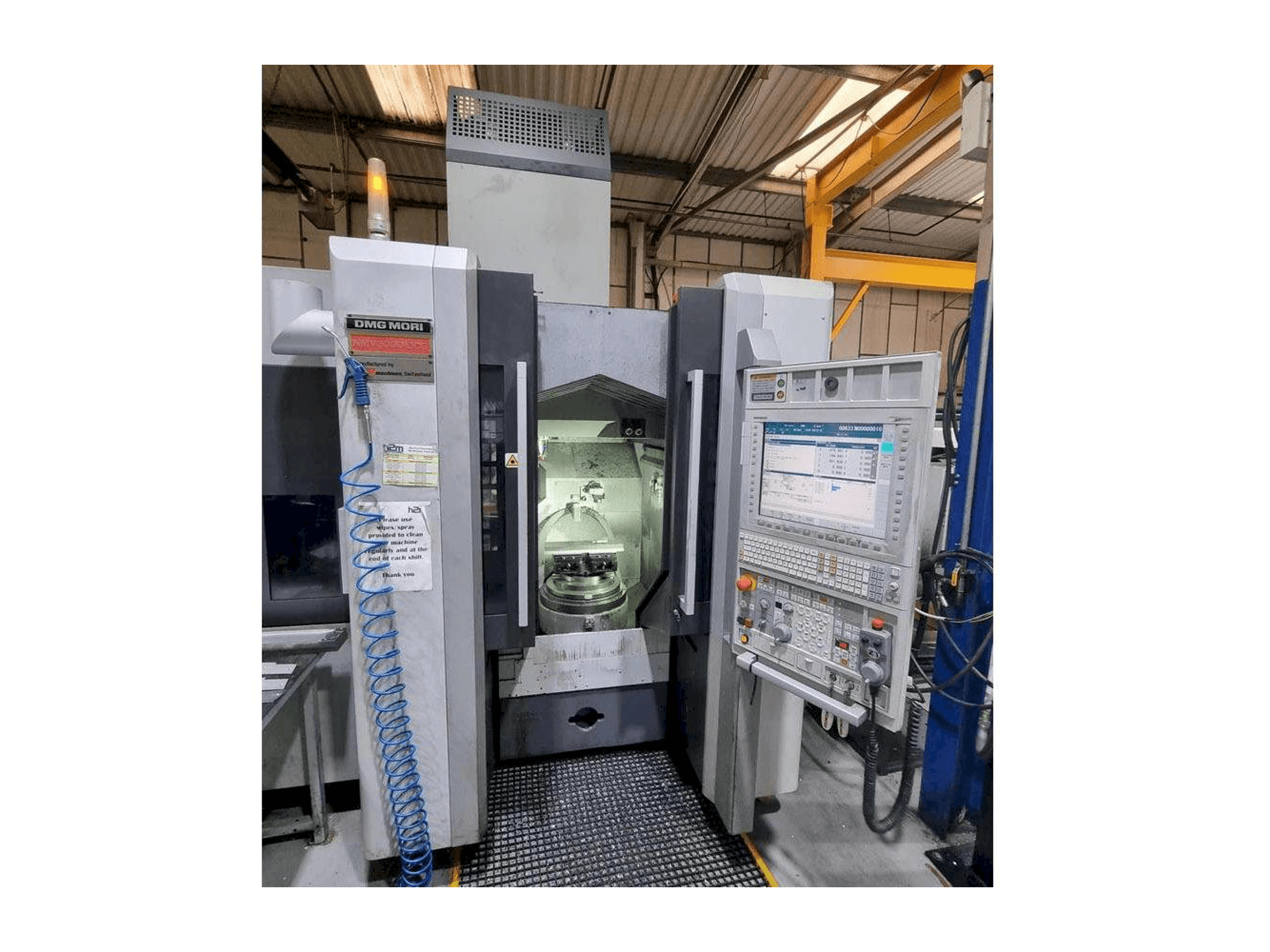

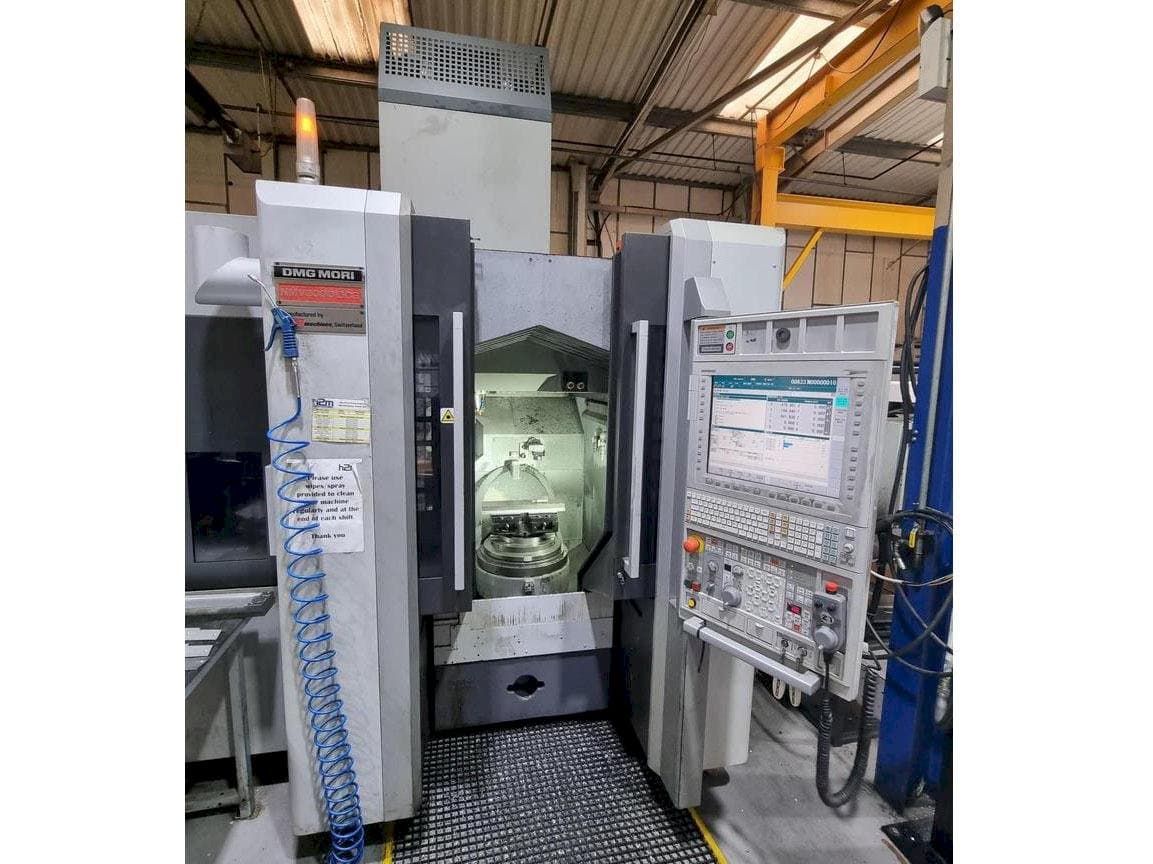

DMG MORI NMV3000 DCG Vertical Machining Center

Show in original language

This DMG MORI NMV3000 DCG Vertical Machining Center was manufactured in the year 2014 in Switzerland. It has 5 axis and counts with 16667 production hours. It operates with a DMG MORI MAPPS IV control unit and can perform with a spindle speed up to 12000 rpm. Includes a chip conveyer and presents a good condition.

Overview

brand: DMG MORI
year: 2014
MODEL: NMV3000 DCG
production hours: 16667
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: DMG MORI

Technical Information - DMG MORI NMV3000 DCG

General Data

Measurements width: 2339 mm
Measurements depth: 3820 mm
Measurements height: 3250 mm
Machine weight: 9400 kg

Control Unit

Brand: DMG MORI
Model: MAPPS IV

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 100 kg

Table

Outer length: 350 mm

Tools

Slots in storage: 21
Max weight: 8 kg
Max tool diameter: 90/125 mm
Max tool length: 300 mm
Type of tool holder: BT40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 360 degrees (0. 001 degree)
- - B axis travel +160 ~ -180 degrees
- - Pallet size 350mm
- - Spindle motor power 18. 5/15kw
- - Rapid feedrates xyz: 50 x 50 x 40m/minute
- - Min - max height under spindle 150 - 660mm
- - Through spindle coolant, swarf conveyor, coolant, interlocked guards, low volt light, remote hand wheel, linear scales
Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
