DMG MORI - M1 PROGR-MIL-DMG-2021-00004

Name: DMG MORI M1 PRO
Brand: DMG MORI
SKU: GR-MIL-DMG-2021-00004
Price: 48000 EUR
Availability: InStock

48,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI M1 PRO | Vertical Centre For Sale

Show in original language

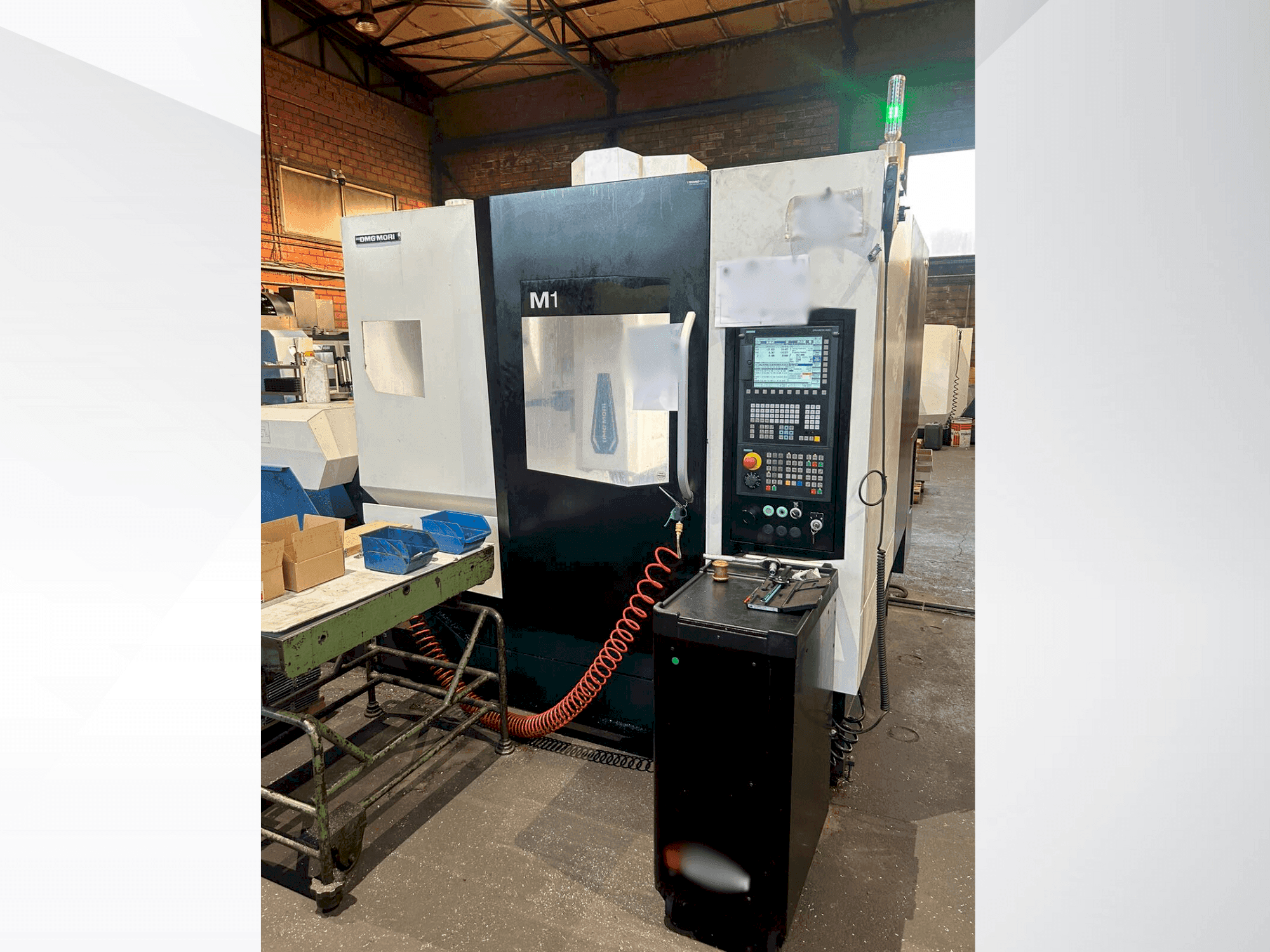

This 3-axis DMG MORI M1 PRO vertical machining center was manufactured in 2021. It features a robust SK40 spindle with speeds up to 12,000 rpm and a torque of 83/57 Nm. Equipped with a 24-slot tool magazine, rapid feed rates reach 24 m/min across X/Y/Z axes. The machine includes a high-pressure coolant system and a chip conveyor, enhancing productivity and maintenance. Ideal for precision machining, buy this DMG MORI M1 PRO vertical machining center. Contact us for more information.

Overview

brand: DMG MORI
year: 2021
MODEL: M1 PRO
application type: Milling
Location: Greece
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG MORI M1 PRO

Control Unit

Model: C-B3096F
Brand: SIEMENS

Main drive

Spindle speed range: 20 - 12,000 1/MIN
Spindle motor power: 83/57 Nm (40/100% DC)
Tool taper: SK40 DIN 69871
Main motor power: 13/9 kW (40/100% DC)

Movement

X-AXIS Movement: 550 mm
X-AXIS Working Feed: 24 m/min
Y-AXIS Movement: 550 mm
Y-AXIS Working Feed: 24 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Working Feed: 24 m/min

Table

Outer length: 850 mm
Outer width: 650 mm

Tools

Slots in storage: 24 places with double gripper

Media

Chip conveyor: Yes

Additional Equipment

- Mechanical Preparation for Oil-Mist Extractor Unit (Opening Diameter: D150 mm)
- Renishaw Touch Probe-Kit
- Spray Gun
- Cabin Roof
- Real-time simulation
- Measuring cycles
- DMG MORI IoTconnector and NETservice
- Machine 3D Model in STEP Format
- External Electronic Handwheel (C-H3025F)
- ShopMill

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Internal coolant supply: 20 bar
- - Bed flushing: via m-function
- - Torque: 83 nm (40% dc) 57 nm (100% dc)
- - Tool clamping force: sk40: 10 kn (+2/-1 kn)
- - Tank capacity: 200 l
- - 10,000 spindle hours
Qualitative Machine Benefits:
- - Display: 10. 4" with ascii keyboard
- - Job shop package for siemens 828d
- - Signal lamp: 4 colours
- - Screen text language: german/english
- - Chip conveyor scraper type chip conveyor
- - 20 bar pump installed on the chip conveyor

Extra information

- Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
