- ➤ Used DMG MORI M1 Pro For sale | gindumac.com

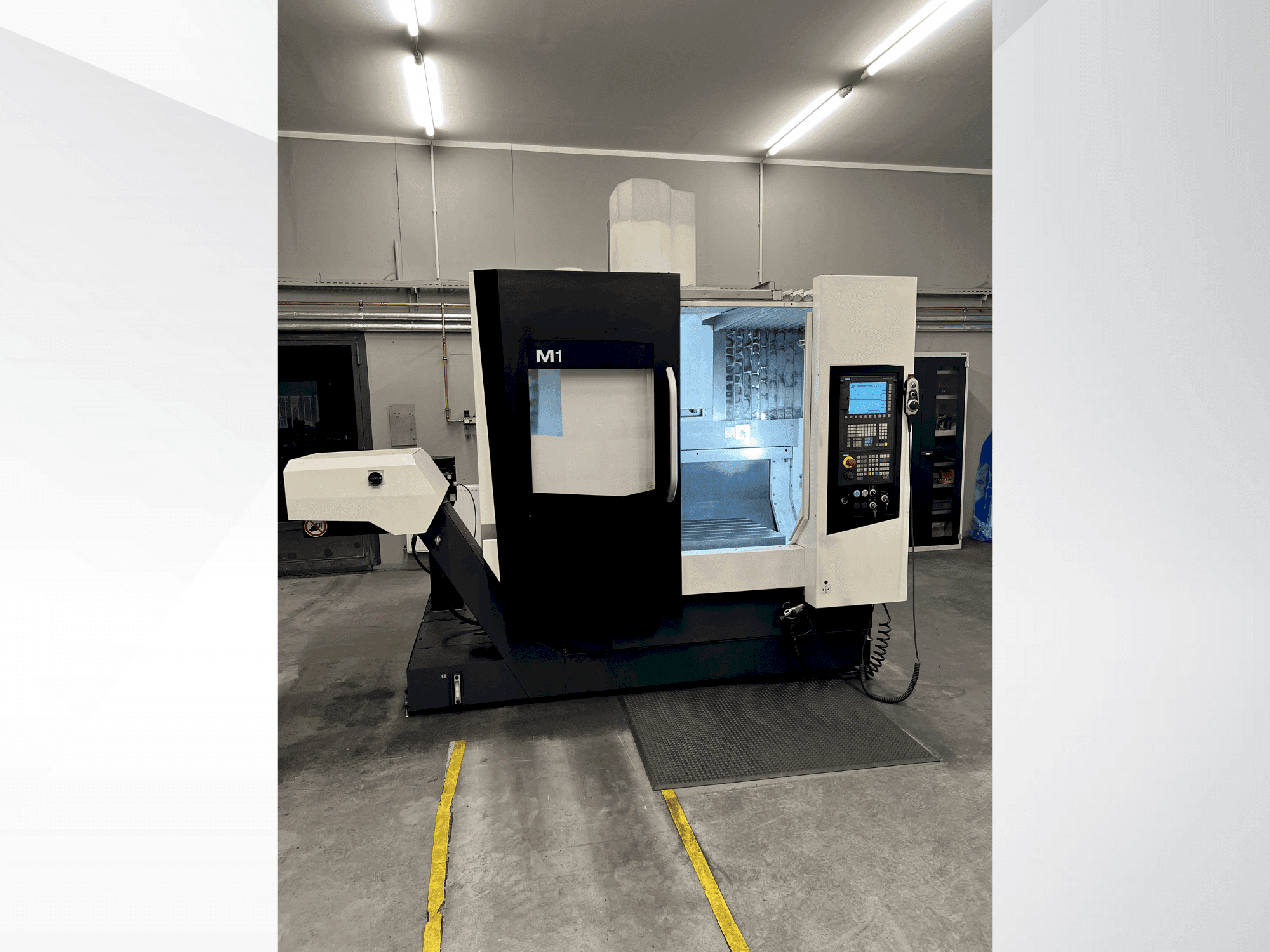

This 3-axis DMG MORI M1 Pro vertical machining center was manufactured in 2022. It features a 550 x 550 x 510 mm work envelope, rapid traverse rates of 24 m/min, and a tool magazine for 24 tools. Equipped with a high-speed range up to 12,000 rpm and an internal coolant supply of 20 bar, it also includes a Renishaw touch probe kit and a chip conveyor. For more information about this vertical machining center, please reach out to us.
Overview
- brand: DMG MORI
- year: 2022
- MODEL: M1 Pro
- production hours: 1100
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Immediately
- control unit brand: Siemens
Technical Information - DMG MORI M1 Pro
Control Unit
- Brand: Siemens
- Model: 828 D
Main drive
- Spindle speed range: 12000 rpm 1/MIN
- Tool taper: SK40 DIN 69871
- Number of axis: 3
Movement
- X-AXIS Movement: 550 MM
- Y-AXIS Movement: 550 MM
- Z-AXIS Movement: 510 MM
Table
- Outer length: 850 mm
- Outer width: 650 mm
Media
- Chip conveyor: Yes
Additional Equipment
- - Spindle Torque: 83/57 Nm (40/100% DC) / Spindle Motor Power: 13/9 kW (40/100 % ED)
- - Rapid Traverse (X / Y / Z): 24 m/min
- - Number of Tools: 24-tool magazine with double gripper
- - Tool Clamping: According to DIN 69872
- - DMG MORI IoTconnector and NETservice
- - 3-D Data Model: In STEP format
- - Renishaw Touch Probe Kit / Coolant Spray Gun / Cabin Roof / Internal Coolant Supply: 20 bar
- - Bed Flushing: Via M function / Job Store Package: For Siemens 828 D
- - Mechanical Preparation for Oil Mist Separator: Diameter: 150 mm / External and Internal Blow Air: Through spindle center
- - Tropical Package: Active cooling unit for control cabinet and additional fan in the control panel (recommended from 35°C to max. 45°C)/ External Electronic Handwheel
Additional Information
- Technical Machine Benefits:
- - Robust spindle power and torque for demanding operations.
- - Efficient tool management with a 24-tool magazine.
- Qualitative Machine Benefits:
- - Precision and reliability with siemens 828 d control and renishaw touch probe kit.
- - Enhanced cooling capabilities for operation in high-temperature environments.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
