DMG MORI LASERTEC 65 Machining Center

Show in original language

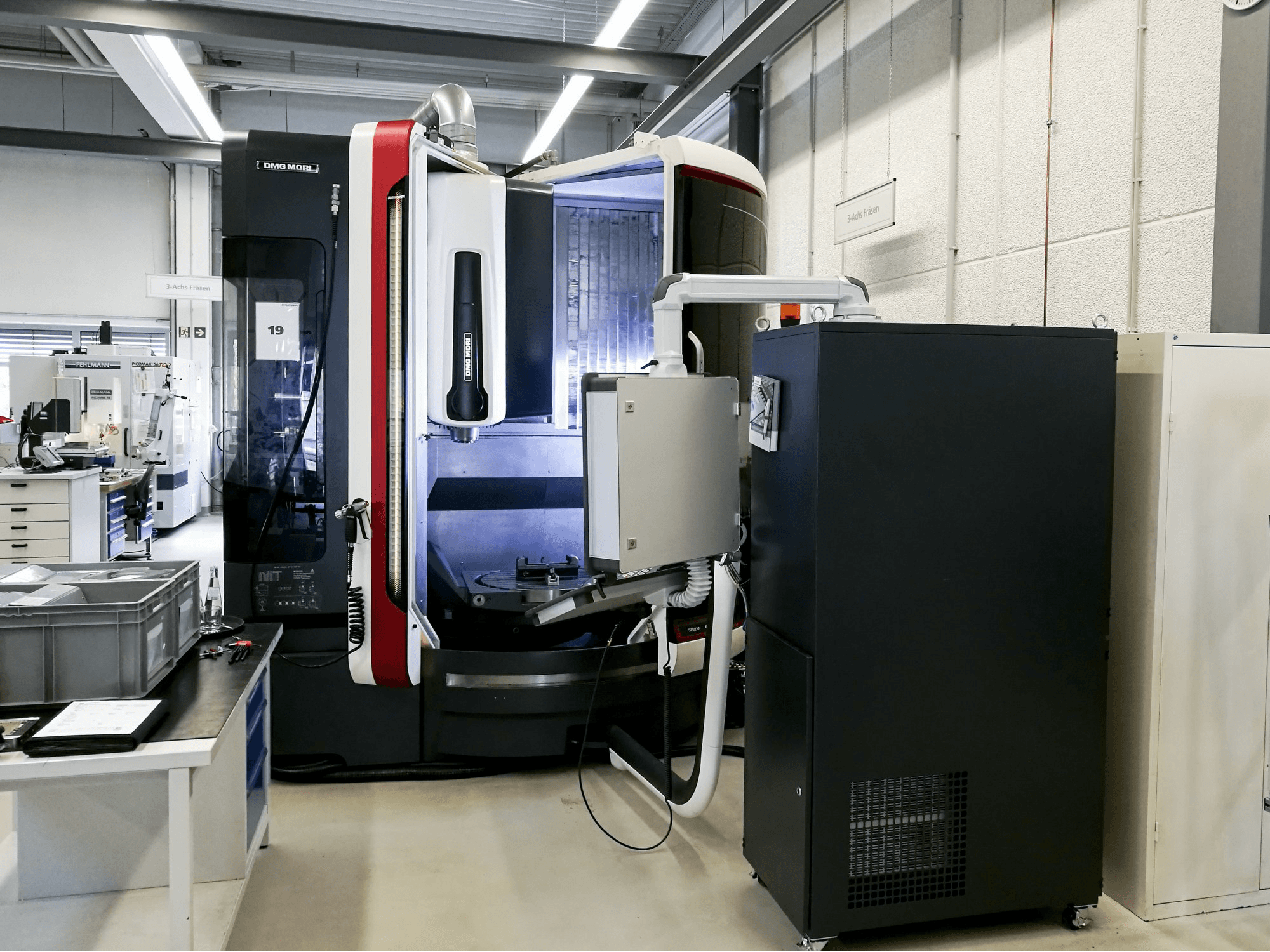

This DMG MORI LASERTEC 65 is a nearly new Machining Center. It was built in 2014 in Germany and has been operative for 4089 production hours since then. Equipped with a SIEMENS SINUMERIK 840D Control unit (complete with remote control) and its own internal cooling system, this machine is a milestone of technology and finds itself in perfect condition. It includes a great number of additional equipment, such as a workpiece measuring system, a new set of toolholders, the 3D quickSET Toolkit and a Renishaw PP60 optical.

Overview

brand: DMG MORI
year: 2014
MODEL: LASERTEC 65
production hours: 4089
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI LASERTEC 65

General Data

Measurements width: 4180 mm
Measurements depth: 3487 mm
Measurements height: 2884 mm
Machine weight: 11500 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 20-18000 1/min
Spindle motor power: 13 kW
Tool taper: HSK-A 63
Laserpower: 2 kW
Laser type: Ytterbium

Movement

X-AXIS Movement: 735 mm
X-AXIS Working Feed: 0-40000 mm/min
X-AXIS Feed Force: 7 kN
X-AXIS Rapid traverse: 40 m/min
X-AXIS Backlash: 0.02 mm
Y-AXIS Movement: 650 mm
Y-AXIS Working Feed: 0-40000 mm/min
Y-AXIS Feed Force: 13 kN
Y-AXIS Rapid traverse: 40 m/min
Y-AXIS Backlash: 0.02 mm
Z-AXIS Movement: 560 mm
Z-AXIS Working Feed: 0-40000 mm/min
Z-AXIS Feed Force: 10 kN
Z-AXIS Rapid traverse: 40 m/min
A-AXIS Movement: ±120° MM
A-AXIS Working Feed: 7200 °/min
A-AXIS Rapid traverse: 20 1/min
A-AXIS Backlash: <0.01°
C-AXIS Movement: 360° MM
C-AXIS Working Feed: 14400 °/min
C-AXIS Rapid traverse: 40 1/min
C-AXIS Backlash: 0.01°

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 650 mm
Outer width: 800 mm
TSlots size: 14 mm
Number of tslots: 9

Tools

Slots in storage: 60
Max weight: 8 kg
Max tool diameter: 160 mm
Max tool length: 315 mm

Media

Main electronic connection: 2x 400 V / 50 Hz
Power consumption: 66 kVA
Air pressure: 6 bar
Lubrication tank: 500 L
Chip conveyor: Yes
Internal cooling: Yes
Cooling pressure: 40 bar

Additional Equipment

- Tool holders
- Workpiece measuring system
- Renishaw PP60 optical
- Bluhm tool measuring system
- Air cooling through spindle
- 3D Quickset Toolkit
- Lasersoft 3D-Texture software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
