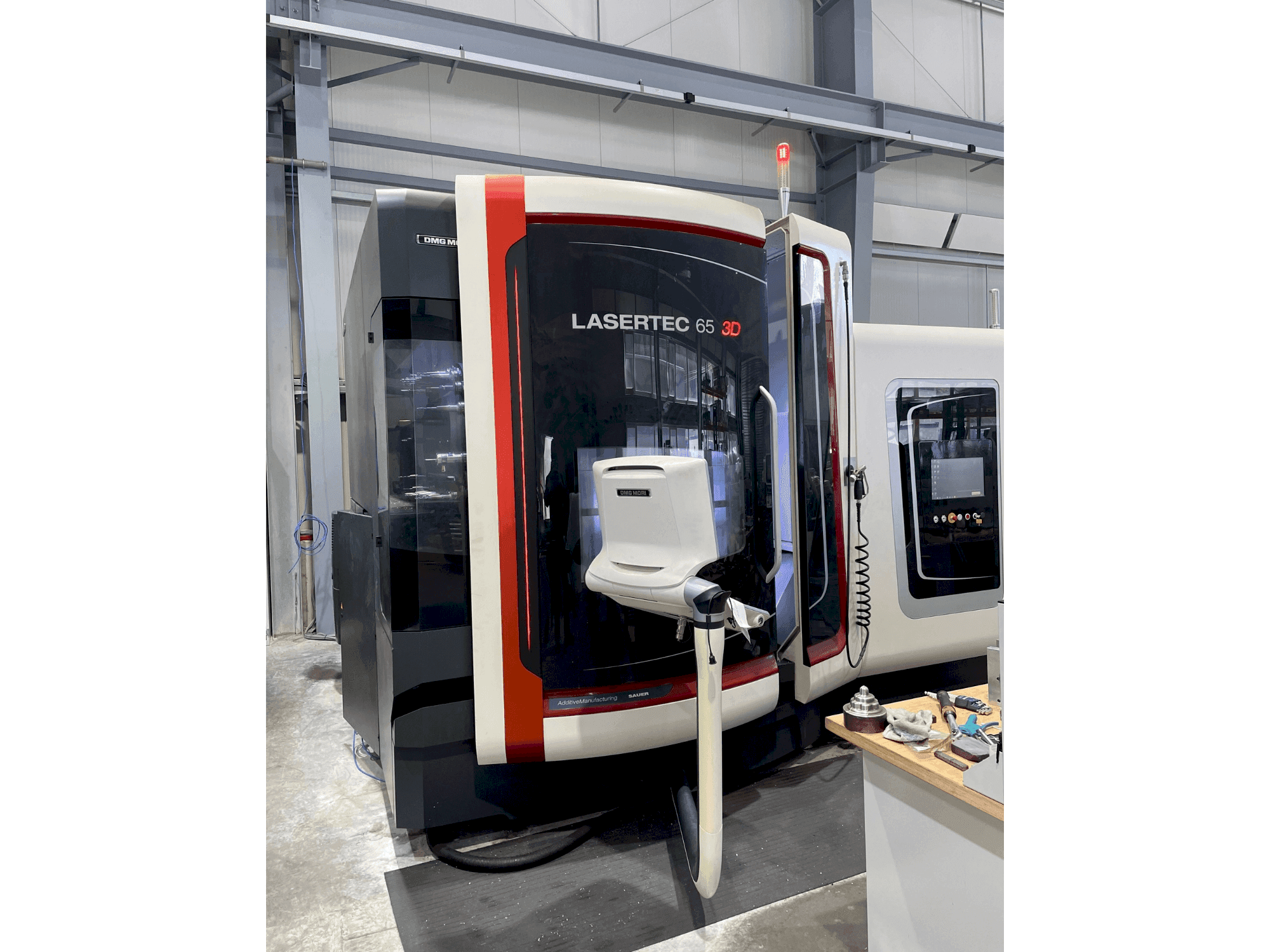

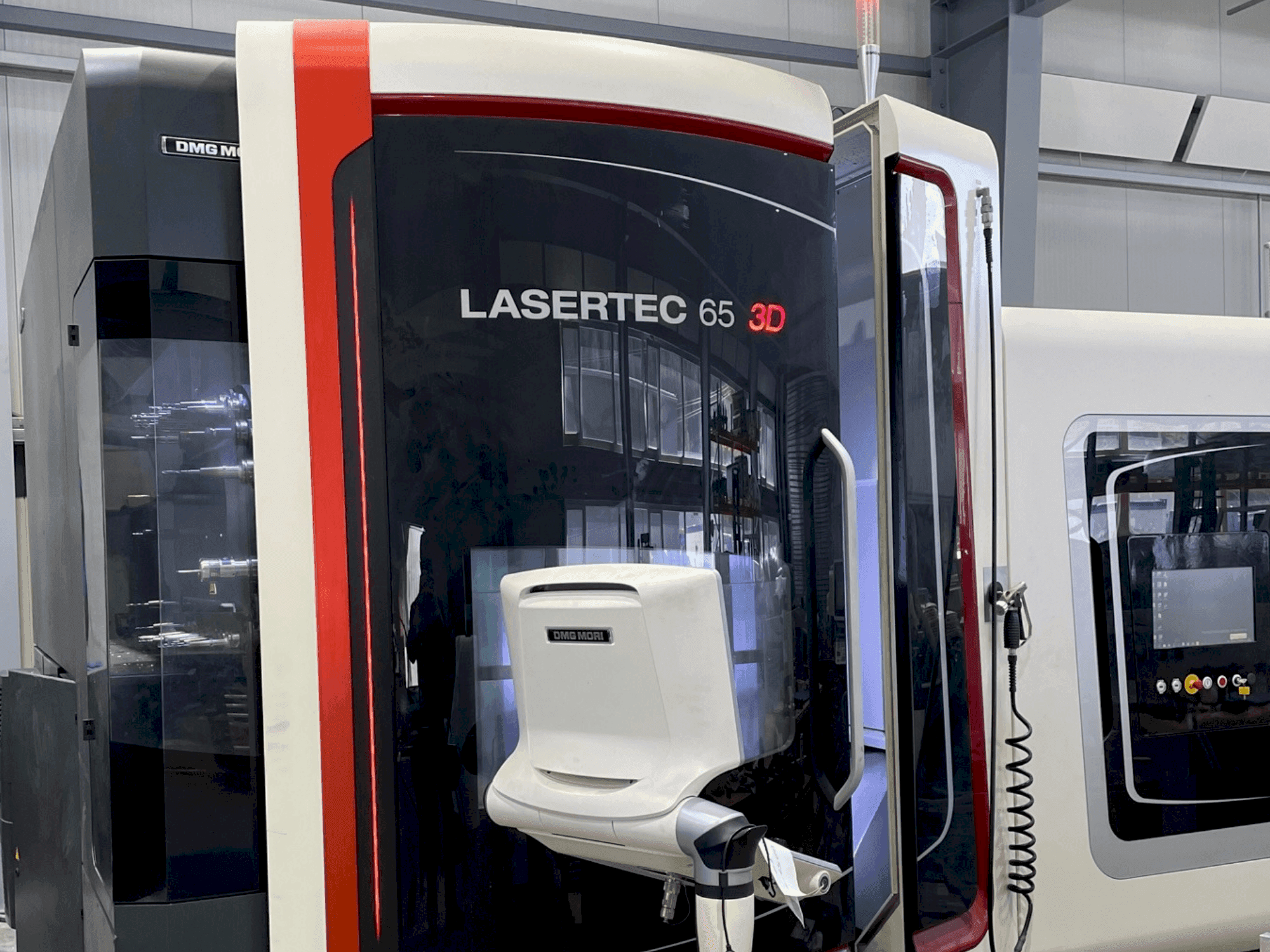

DMG MORI LASERTEC 65 3D Hybrid 5-axis precision machine for milling and laser machining

Show in original language

This DMG MORI LASERTEC 65 3D Hybrid 5-axis precision machine for milling and laser machining was manufactured in the year 2014 in Germany. It is special for the ability to produce components using 3D Printing and to post-process them at the same time. Ideal for manufacturers who need a high-performance additive manufacturing solution of metallic 3D components. The machine features a fixed integration of the laser head in the headstock for greater installation space and more performance. In addition it offers 5-axis material application via coaxial nozzle for uniform powder distribution regardless of the laser build-up direction. It is the ideal dedicated solution for prototypes, small series, repair and coating. This LASERTEC 65 3D is equipped with an integrated SK 40 motor spindle with spindle speed up to 14,000 1/min. In addition it operates with a fiber-guided diode laser of 2.5 kW laser power. Next to internal coolant supply (IKZ) it comes with Renishaw measuring probe and Blum tool measurement option. Furthermore it is appreciated for its generously sized work area that is easily accessible, along with travel dimensions of 650 × 650 × 560 mm (X / Y / Z). It is a supremely adaptable 5-axis machine suitable for a wide array of laser and milling tasks, delivering consistently high-quality results without compromise.

Overview

brand: DMG MORI
year: 2014
MODEL: LASERTEC 65 3D Hybrid
production hours: 1520
application type: Milling
Location: Austria
machine type: Universal Machining Centre
availability: Immediately

Technical Information - DMG MORI LASERTEC 65 3D Hybrid

General Data

Measurements width: 1200 mm
Measurements depth: 1050 mm
Measurements height: 2000 mm

Control Unit

Model: CELOS (SIEMENS 840D sl)
Interface: 21.5“ ERGOline Control
CNC main language: German (English, Italian)
CNC language customizable: Yes

Main drive

Spindle speed range: 14000 1/min
Spindle motor power: 14 kW (100% ED)
Tool taper: HSK64
Laserpower: 2.5 KW
Number of axis: 5

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 560 mm

Table

Outer length: 800 mm
Outer width: 650 mm

Tools

Slots in storage: 60
Type of tool holder: HSK64

Media

Oil water separator: Yes
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Inner cooling system 40 bar, 23 l/min
- Scraper belt chip conveyor with coolant system 600 liters, paper belt filter
- Infrared measuring probe Renishaw OMP 60 Version for SK 40 (the probe is automatically inserted into the work spindle from the tool magazine)
- Rinsing gun with pump 2 bar/40 l/min
- Oil/emulsion mist separator
- Tool measurement in the Blum Laser work area
- MPC Machine Protection Control & 3D quickSET
- Surcharge for powder feeder Twin System
- Suction unit with secondary filter stage
- electronic handwheel Siemens 840D

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Vertical headstock
- - Tool changing device
- - Double gripper
- - Nc swivel rotary table
- - Table top c-axis: d 650 mm, integrated in fixed table 800 mm x 650 mm
- - Rotation range c-axis: 360° swivel range a-axis: +120°/-120
Qualitative Machine Benefits:
- - Automated insertion and removal of the laser processing head for laser application or milling fiber-guided diode laser with 2,500 watts of power
- - Processing optics with focusing lens
- - Cooling unit blowing air through the center of the spindle
- - Large work area for workpieces up to ø 500 mm, 350 mm height and max. 600 kg
- - Accessibility and ergonomics: large door opening, workpiece loading from the front and complete accessibility
- - Small footprint with 12 m2 installation area
- - Safety package for power failure
- - Machine was upgraded to new machine status by dmg in 2020 and then delivered.

Extra information

- 4,311h (Spindle Hours) // 2,339h (Laser Beam Hours) // Documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
