DMG MORI ecoTurn 450

Show in original language

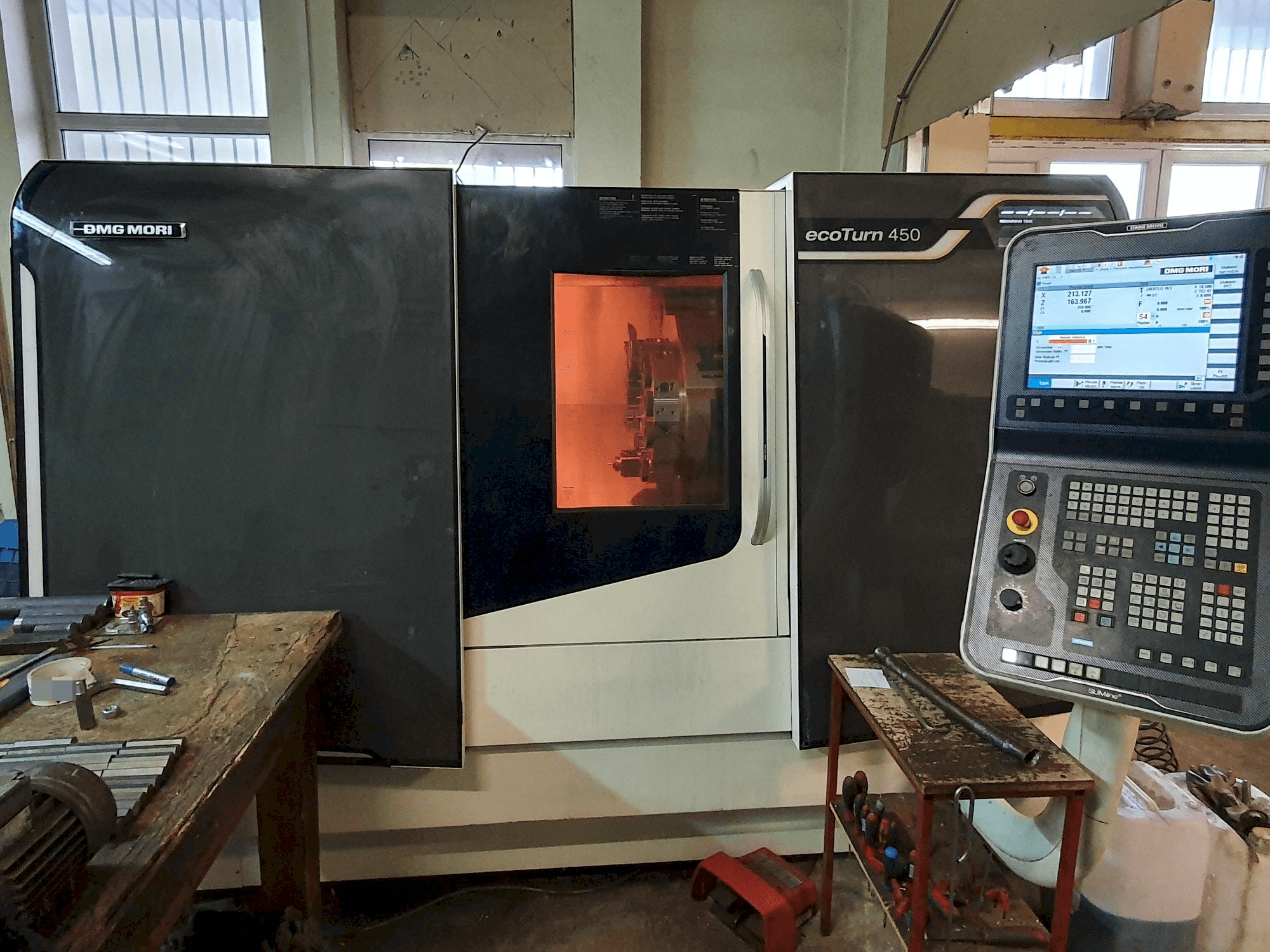

This DMG MORI ecoTurn 450 Lathe was built in the year 2015. This 3 axis machine has been on for 7814 hours, of which 4305 hours are spindle on. It is equipped with a control unit of the same brand. This machine can perform with a spindle speed up to 4000 rpm. It presents perfect working conditions, it is ready for tests, it includes full documentation and manuals and it has always been serviced by DMG service.

Overview

brand: DMG MORI
year: 2015
MODEL: ecoTurn 450
production hours: 7814
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - DMG MORI ecoTurn 450

General Data

Measurements width: 4180 mm
Measurements depth: 2660 mm
Measurements height: 1932 mm
Machine weight: 5200 kg

Controller

Brand: SIEMENS
Model: 840D SL with ShopTurn

Main drive

Spindle speed range: 4000 1/MIN
Tool taper: FL 170h5
Number of axis: 3

Movement

C-AXIS Movement: - 360 ° MM

Turret

Number of tool slots: 12 pcs

Tools

Type of tool holder: VDI 40 + 6 BT

Media

Main electronic connection: 400V / 50Hz
Power consumption: 39 kVA

Additional Equipment

- Coolant gun 5 bar
- Set of Three Jaws BH-D 250 / Z220 – 66
- Software keys

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turret: max speed: 4000 rpm
- - Max torque: 370 nm
- - Max. Turning dim: 400 mm
- - Grip diameter: 250 mm
- - Max. Swing dim: 700 mm
- - Max. Work piece length with a tailstock: 800 mm
- - Max. Chuck size: 315 mm
- - Max. Bar capacity diam: 80 mm
Qualitative Machine Benefits:
- - Machine in perfect working condition
- - Ready for tests
- - Full documentation and manuals
- - Always serviced by dmg service.

Extra information

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
