➤ Used DMG MORI ECOTURN 310 V3 For Sale | gindumac.com

Show in original language

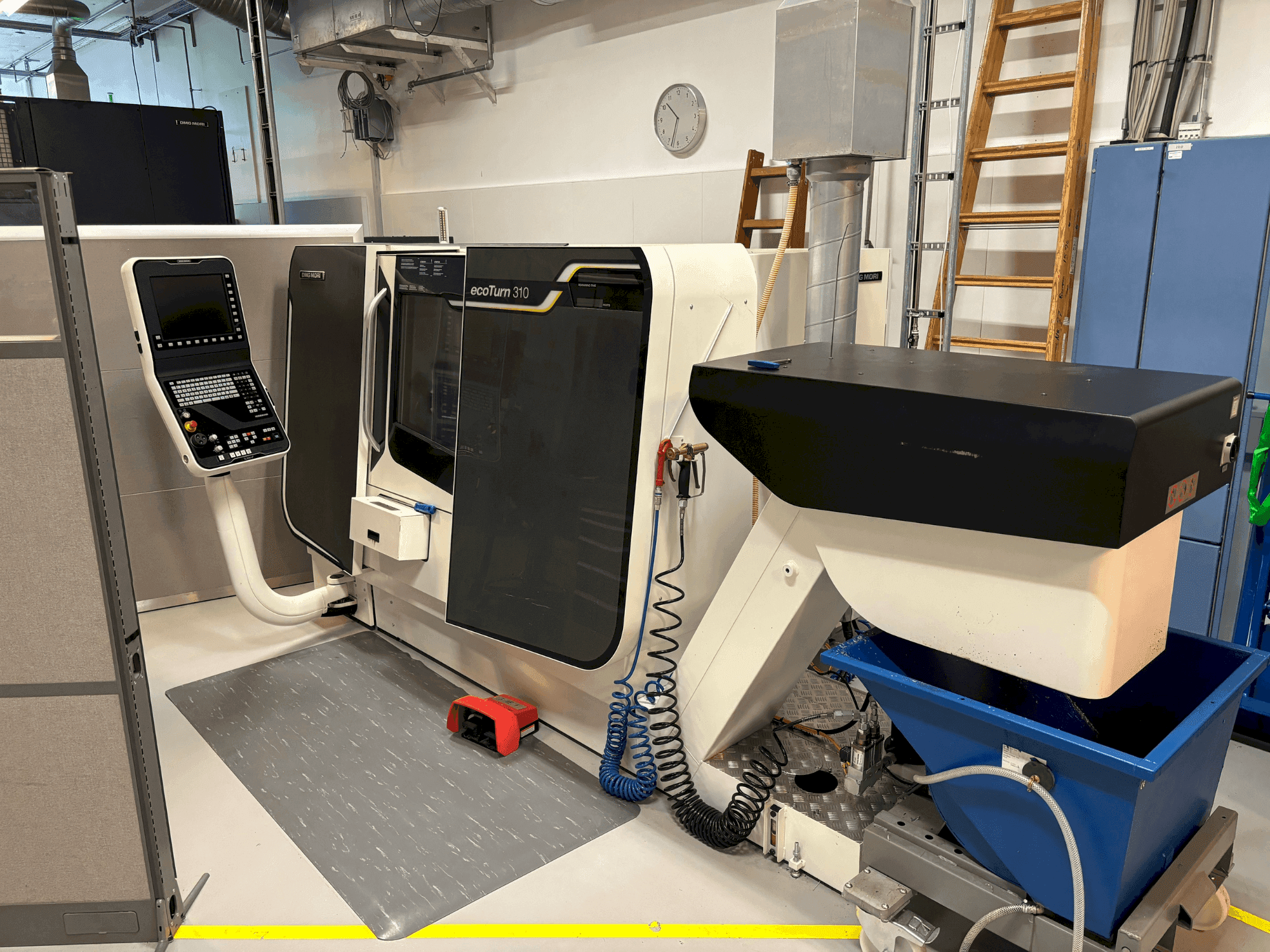

This 3-axis DMG MORI ECOTURN 310 V3 was manufactured in 2016. A robust horizontal turning machine featuring a 12-station servo tool turret, C-axis, and driven tools for versatile machining. It includes a Heidenhain CNC-Pilot 640 control, ergonomic SlimlinePanel, and a hydraulic 3-jaw chuck with a maximum bar capacity of 51 mm. Ideal for precision turning operations, 290 production hours only. If you are looking to get high-quality turning capabilities, consider the DMG MORI ECOTURN 310 V3 machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2016
MODEL: ECOTURN 310 V3
production hours: 290
application type: Turning
Location: Denmark
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG MORI ECOTURN 310 V3

General Data

Measurements width: 2260 MM
Measurements depth: 4228 MM
Measurements height: 1775 MM
Machine weight: 3800 KG

Control Unit

Brand: HEIDENHAIN
Model: PILOT 640

Main drive

Spindle speed range: 5000 1/MIN
Main motor power: 165 kW / 11 kW
Number of axis: 3

Movement

X-AXIS Movement: 1825 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 4550 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece drm over bed: 330 mm
Workpiece x: 260 mm

Tools

Slots in storage: 12

Additional Equipment

- Chip Removal Package: Includes chip conveyor, 4-color signal lamp
- Clamping Device: Hydraulic 3-jaw chuck (D 210 mm, through hole D 52 mm)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Display: 15" tft slimline panel
- - Programming: din 66 025 / din plus
- - Input resolution: 0. 001 mm (linear axes), 0. 001º (c-axis)
- - Torque (40% / 100% ed): 1665 nm / 112 nm
- - Max turning diameter: 200 mm
- - Clamping chuck diameter: 210 mm
- - Max bar capacity: 51 mm
- - Tool reception: din 69880 (vdi 3425)
- - Driven tools: 12 driven tool stations (max. 4500 rpm)
- - Automatic stroke: 396 mm
Qualitative Machine Benefits:
- - Max quill thrust: 400 dan
- - Hydraulic unit capacity: 50 l
- - Coolant equipment capacity with chip conveyor: 200 l
- - Pump power: 085 kw
- - Tool pre-setting probe: marposs brand
- - Service tools: dmg service agent eco for early maintenance alerts

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
