DMG MORI DMU 75 monoBLOCK

Show in original language

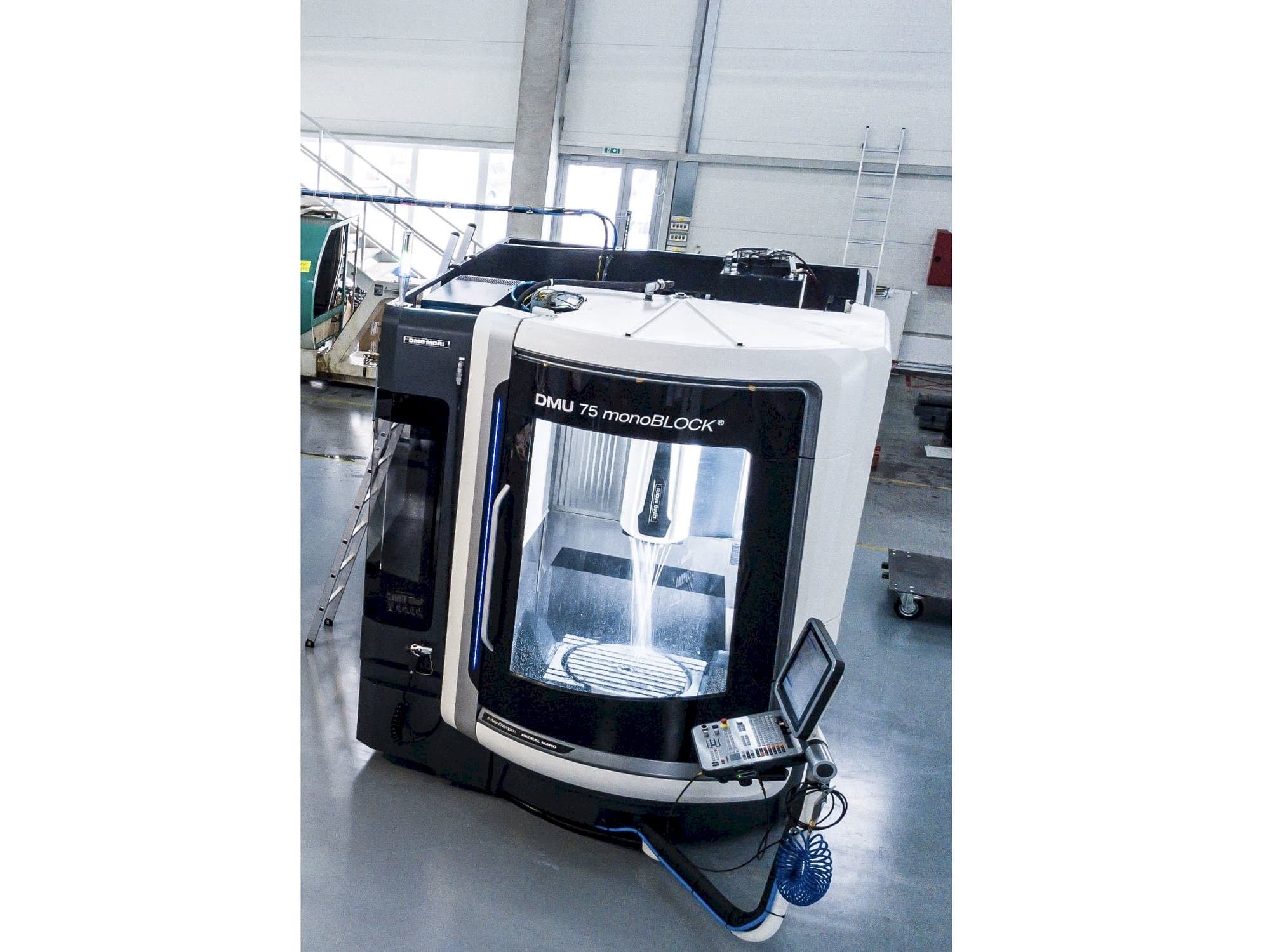

This DMG MORI DMU 75 monoBLOCK Vertical Machining Center was manufactured in the year 2018 in Germany. It has a record of 5050 hours, of which 2080 are spindle hours. This 5 axis machine operates through a HEIDENHAIN iTNC640 control unit. It can work with a spindle speed up to 20000 rpm. This machine includes several accessories as a handwheel and a wash pistol. It is in top conditions.

Overview

brand: DMG MORI
year: 2018
MODEL: DMU 75 monoBLOCK
production hours: 5050
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMU 75 monoBLOCK

General Data

Machine weight: 11800 KG

Control Unit

Model: iTNC640
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN
Spindle motor power: 35 kW
Number of axis: 5

Movement

X-AXIS Movement: 750 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 650 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 560 mm
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece weight: 600 KG

Tools

Slots in storage: 60
Max weight: 15 kg
Max tool diameter: 125/175 mm
Max tool length: 400 mm
Type of tool holder: HSK-A63

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 49 KVA

Additional Equipment

- Handwheel
- Wash pistol
- Set of tool holders + workpiece probes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque (100% dc) 130 nm
- - Automatic tool changer 60 positions
- - Max. Workpiece height 500 mm
- - Paper filtration of emulsion
- - High pressure cooling thru spindle
- - Table diameter 650 mm
Qualitative Machine Benefits:
- - Machine in top conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
