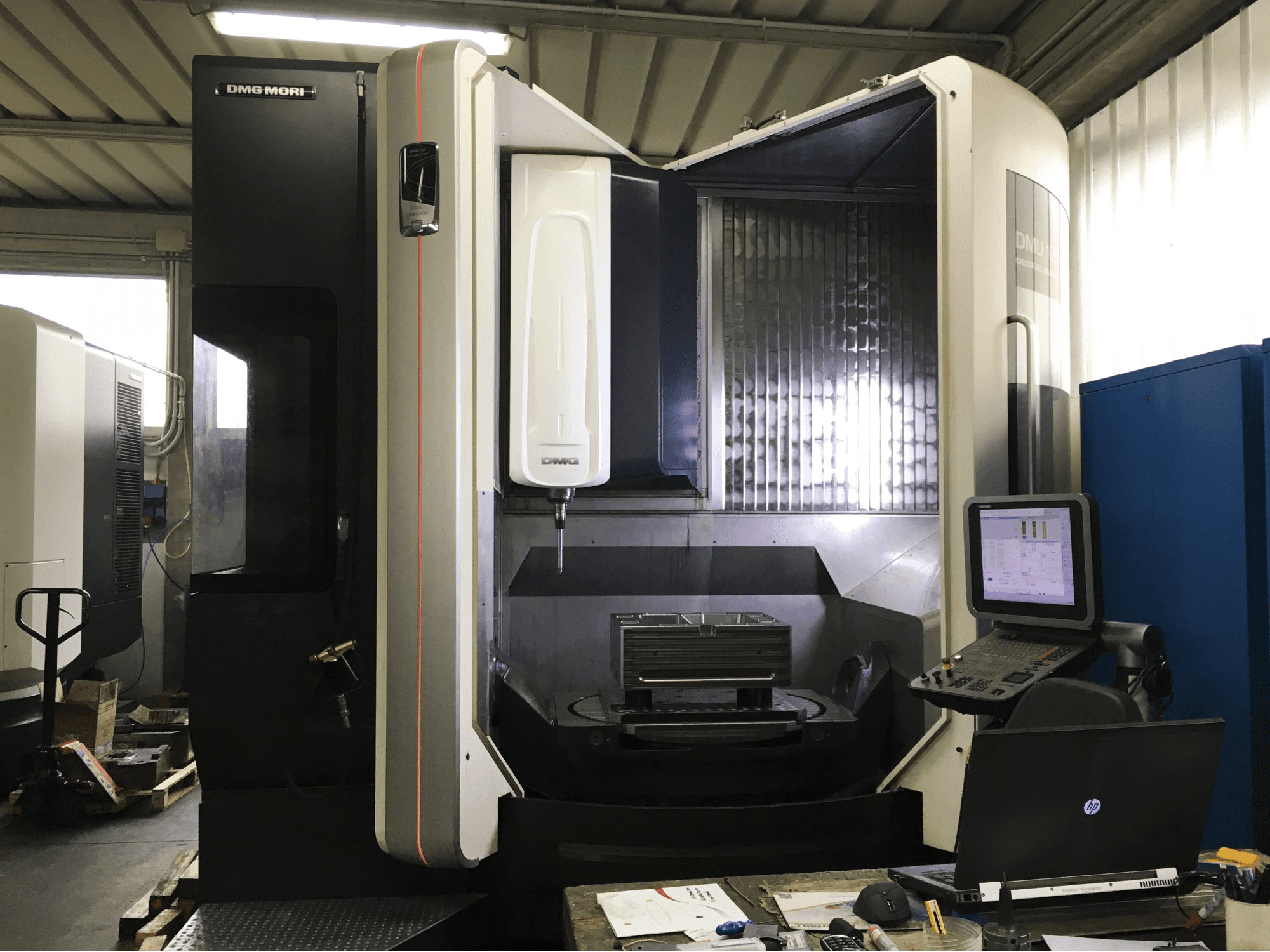

DMG MORI DMU 105 monoBLOCK Milling Machine

Show in original language

This DMG MORI DMU 105 monoBLOCK Milling Machine was manufactured in the year 2014 and has a production history of 14355 working hours. This machine operates through a HEIDENHAIN iTCN 530 HSC control unit and technically stands out due to its precision and continuously 5-axis processing. Semi-annual inspections and an upgraded spindle speed guarantee a high efficiency. This DMG DMU 105 monoBLOCK comes with the following additional equipment: Measuring probe, water gun, 600L water tank, HSK 63 tool holder and others.

Overview

brand: DMG MORI
year: 2014
MODEL: DMU 105 monoBLOCK
production hours: 14355
application type: Milling
Location: Italy
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMU 105 monoBLOCK

General Data

Measurements width: 2900 mm
Measurements depth: 4200 mm
Measurements height: 2820 mm
Machine weight: 23000 kg

Control Unit

Model: iTCN 530 HSC
Brand: HEIDENHAIN

Main drive

Spindle speed range: 24000 1/min

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1050 mm
Z-AXIS Movement: 900 mm
A-AXIS Movement: +/- 120° MM
B-AXIS Movement: 360° MM

Workpiece

Workpiece x: 1250 mm
Workpiece y: 1050 mm
Workpiece z: 900 mm
Workpiece weight: 2200 kg

Table

Outer length: 1400 mm
Outer width: 1050 mm

Tools

Max tool diameter: 180 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 45 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Measuring Probe
- Bluhm tool measuring system
- Probes for thermocontrol machine structure
- Air cooling through spindle
- 600 L tank with paper filter
- Cooled screws
- Water gun to wash/clean pieces
- Remote control (Joystick)
- Rotoclear
- Tandem Drive Table (Double engine A axis for up to 2200 kg workpiece weight)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
