➤ Used DMG MORI DMF 260/7 For Sale | gindumac.com

Show in original language

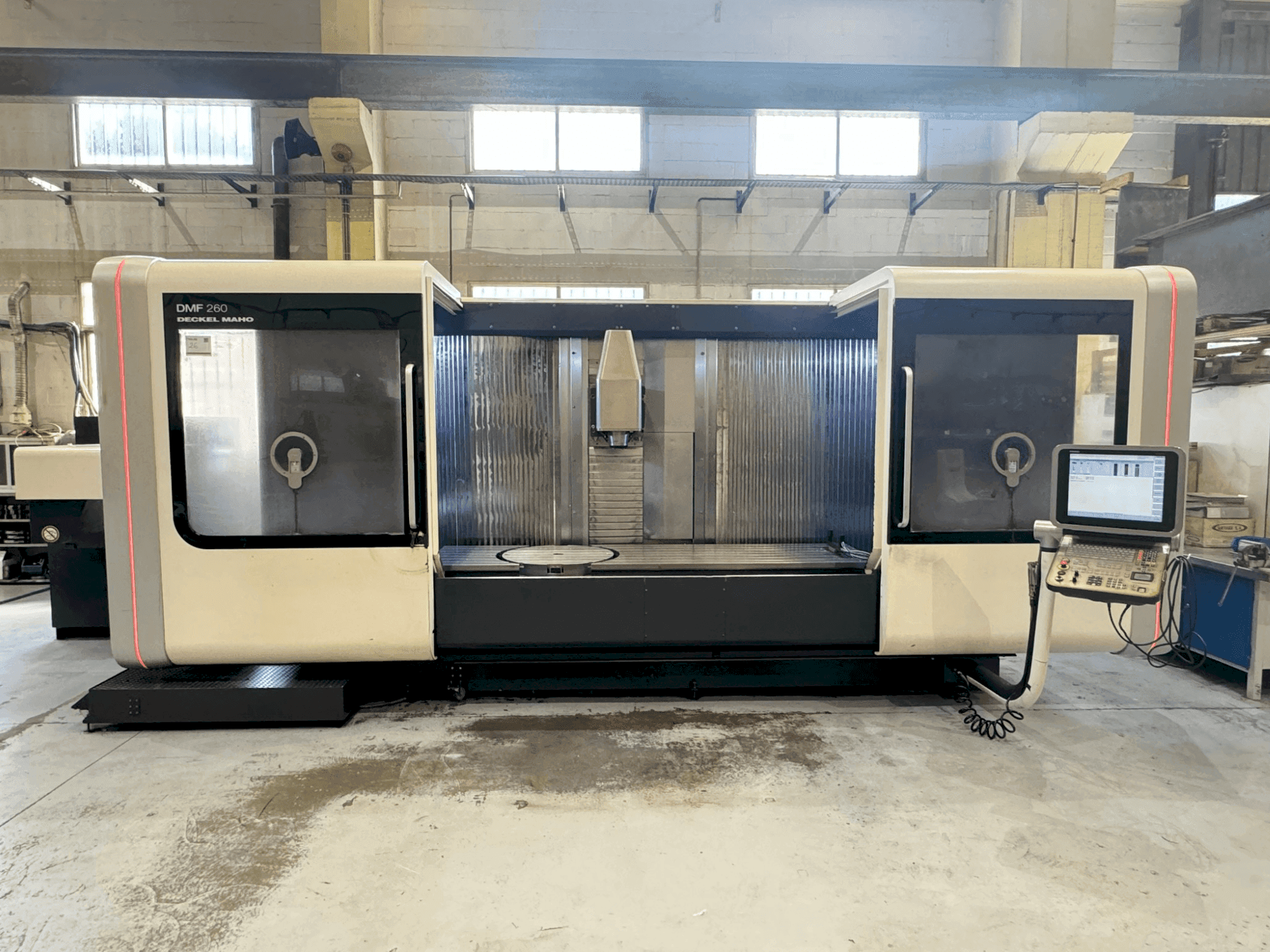

This 5-axis DMG MORI DMF 260/7 vertical machining centre was manufactured in 2012. It features a HEIDENHAIN iTNC 530 control, a fixed table surface of 2,900 x 700 mm, and a rotary table Ø 730 mm with 360° rotation. The machine supports a maximum weight of 2,150 kg on the fixed table and 560 kg on the rotary table. It offers a longitudinal travel of 2,600 mm, transversal travel of 700 mm, and vertical travel of 700 mm. For more information about this vertical machining centre, please reach out to us.

Overview

brand: DMG MORI
year: 2012
MODEL: DMF 260/7
production hours: 10175
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMF 260/7

General Data

Machine weight: 16070 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20-800 rpm 1/MIN
Spindle motor power: 23.5/13.5 kW
Tool taper: SK 40 DIN 69872
Number of axis: 5

Movement

X-AXIS Movement: 2600 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 700 mm
B-AXIS Movement: ± 110° MM
C-AXIS Movement: 360° MM

Turret

Number of turrets: 1

Tools

Number of stations: 30
Max weight: 5 kg
Max tool diameter: 130 mm
Max tool length: 300 mm

Media

Chip conveyor: Yes

Additional Equipment

- Rotary table Ø 730 mm (Axis C) // Rotary encoder head
- Detachable 2-zone working separator
- Direct measurement system // Tool measurement LAER BLUM
- Spindle cooling / Col. 1
- Longitudinal chip conveyor
- 2 front windows
- Leveling pilots
- Portable handwheel
- DMG 3D quickSET (for checking and dynamic correction of the machine tool accuracy in 5 axes)
- DMG Mori PP60 PowerProbe 50 optical probe (Renishaw OMP60)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum weight on fixed table: 2,150 kg
- - Maximum weight on integrated rotary table: 560 kg
- - Tool change time: 7. 6 s

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
