DMG MORI DMC 1150 V vertical machine center

Show in original language

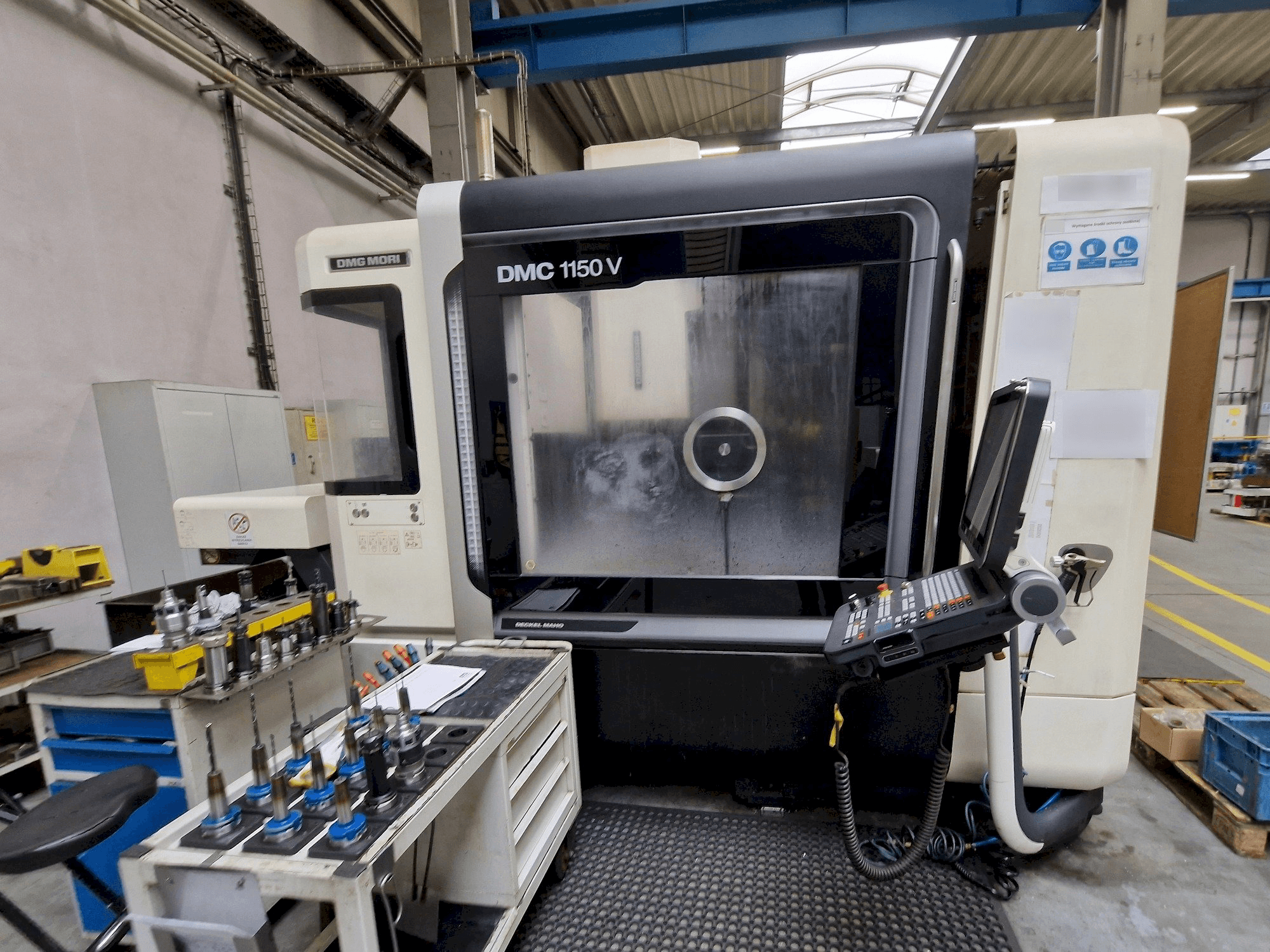

This DMG MORI DMC 1150 V vertical machine center was made in Germany in the year 2015 and has 33753 power hours, of which 15144 are spindle hours. It is equipped with a Heidenhain iTNC 640 control unit and has 3 axis. The machine has a spindle speed of 20 - 18000 rpm, is in very good working condition, is ready for tests, and includes a measuring probe TS649.

Overview

brand: DMG MORI
year: 2015
MODEL: DMC 1150 V
production hours: 33753
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMC 1150 V

Control Unit

Model: iTNC 640
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 - 18000 1/MIN
Spindle motor power: Drive power max 40% on time: 35 kW, Rated power 100%: 25 kW
Tool taper: HSK-A63
Number of axis: 3

Movement

X-AXIS Movement: 1150 mm (longitudinal)
Y-AXIS Movement: 700 mm (transverse)
Z-AXIS Movement: 550 mm (vertical)

Table

Outer length: 1400 mm
Outer width: 750 mm
TSlots size: 100 mm
Table load: 800 kg

Additional Equipment

- Measuring probe TS649

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Loading height (ground - top edge of table): 1000 mm
- - Feed drives: x,y,z axis ac servomotors: maximum rapid traverse x,y: up to 42 m/min, maximum rapid traverse z: up to 42 m/min
- - Tool tightening force: 25kn
- - Tool storage: 30 positions
- - Maximum tool diameter without free spaces: 80 mm
- - Maximum tool diameter with free spaces: 130 mm
- - Maximum tool length from spindle nose: 300 mm
- - Max. Tool weight with automatic tool changing: 6 kg
- - Max. Tool weight in storage: 120 kg
Qualitative Machine Benefits:
- - Machine in very good condition, ready for tests
- - Full documentation available

Extra information

- Tools are not included in the offer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
