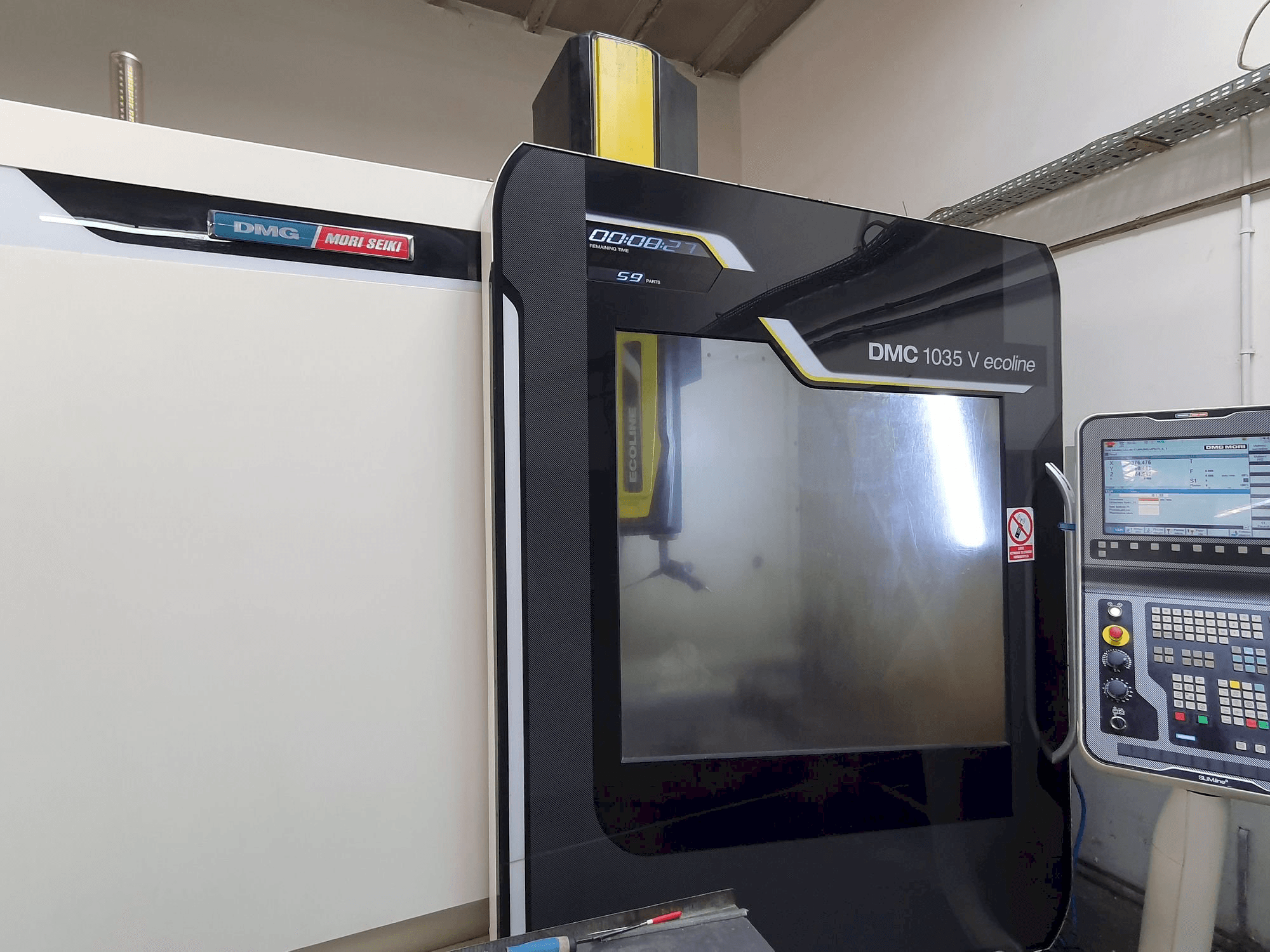

DMG MORI DMC 1035V Ecoline vertical machine center

Show in original language

This DMG MORI DMC 1035V Ecoline vertical machine center was made in the year 2012 in Poland. It has been on for 17590 hours, of which 7410 hours are spindle time. It is equipped with a SIEMENS 840D solutionline control unit. This 3 axis machine can perform with a spindle speed up to 12000 rpm. This machine it is in very good working condition, still at the production, ready for test. Full documentation available.

Overview

brand: DMG MORI
year: 2012
MODEL: DMC 1035V Ecoline
production hours: 17590
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI DMC 1035V Ecoline

General Data

Measurements width: 3932 mm
Measurements depth: 3091 mm
Measurements height: 2792 mm
Machine weight: 4100 kg

Control Unit

Model: 840D solutionline
Brand: SIEMENS

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 13 kW
Tool taper: SK40 DIN 69871
Number of axis: 3

Movement

X-AXIS Movement: 1035 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 30 m/min

Table

Outer length: 1200 mm
Outer width: 560 mm
Table load: 1000 kg

Tools

Number of stations: 20
Max weight: 6 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Media

Power consumption: 17 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max feed force: 5 kn
- - Max feed rate: 24 m/min
- - Torque: 57 nm
- - Workpiece probe: blum tc52
- - Internal coolant supply: 12 bar (360 liters tank)
Qualitative Machine Benefits:
- - Machine in very good, working condition, still at the production.
- - Ready for test.
- - Full documentation available.
- - No tooling included in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
