➤ Used DMG MORI CTX beta 800 For sale | gindumac.com

Show in original language

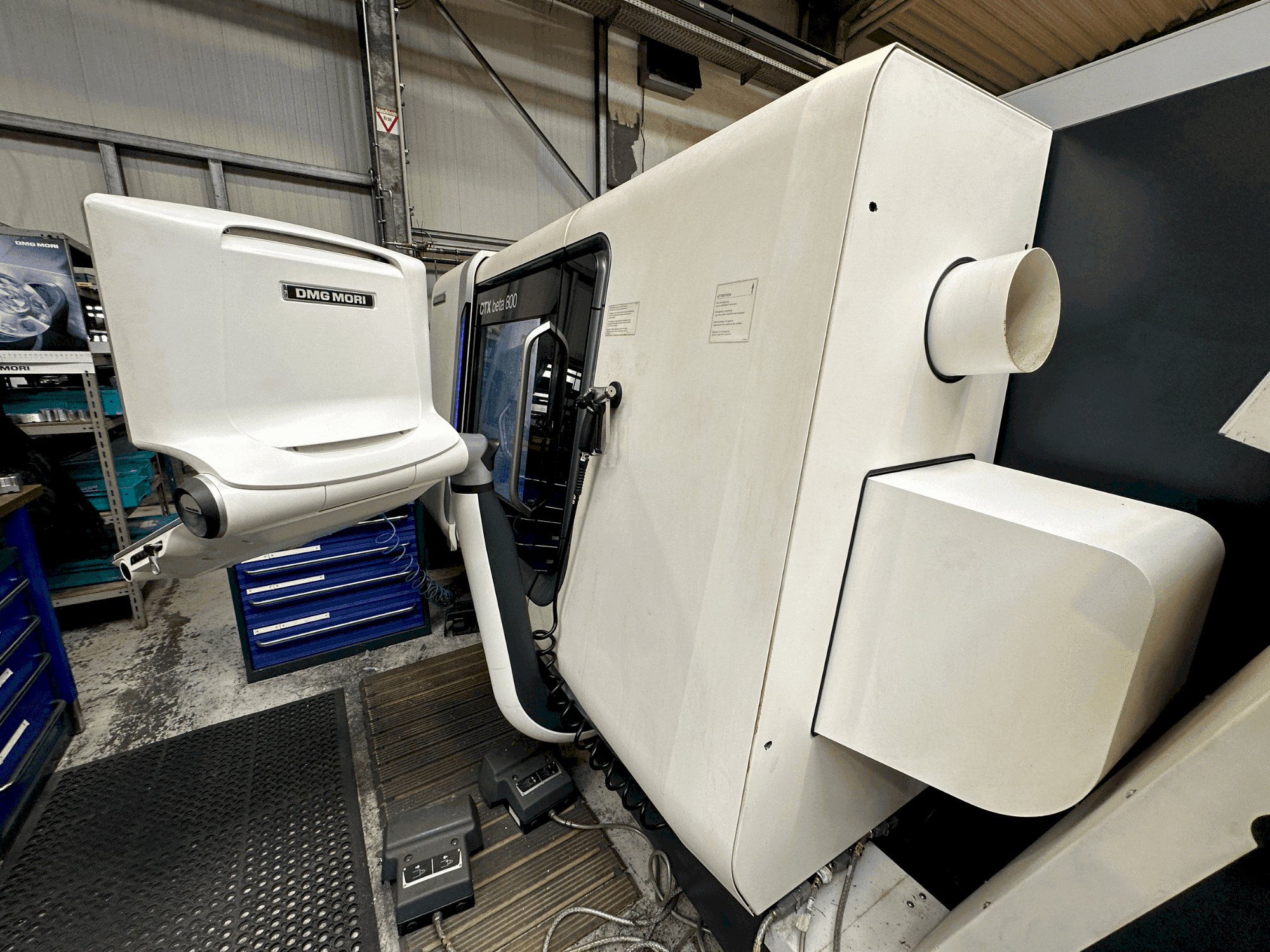

This DMG MORI CTX beta 800 was manufactured in 2017. A robust horizontal machining center, it features a weight of 6,130 kg. Ideal for those looking to expand their machining capabilities, the DMG MORI CTX beta 800 machine we have for sale offers reliability and performance. Contact us for further details.

Overview

brand: DMG MORI
year: 2017
MODEL: CTX beta 800
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CTX beta 800

General Data

Machine weight: 6130 KG

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 5000 rpm 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 60 mm
Z-AXIS Movement: 800 mm
V-Axis Movement: 800 MM

Workpiece

Workpiece drm over bed: 700 mm
Workpiece drm over support: 380 mm

Additional Equipment

- Passage Ø65 / No tools or holders are included with the machine / Optional tools, holders, spindle reducers and numerous machine equipment for the jaw chuck available
- Turning length 800mm / 5000 min-1 / inner diameter of drawtube 67mm / c-axis and spindle brake
- Feed x axis / rapid traverse 30 m/min // Hydraulic drawtube diameter: 52 mm
- 3D control Siemens 840D si Operate
- Counter spindle as integrated spindle motor and y-axis for cross slide / hydraulic drawtube diameter 52mm
- Cross slide with y-axis, stroke +- 60mm / 12-fold star turret / lower slide Z3
- Optional: Three-jaw power chuck with bore / THW PLUS 260-81 // Three-jaw power chuck with bore Type NCD 165-46
- Tailstock function for counter spindle 2,5-6 kN
- Hinge belt chip conveyor incl. coolant tank / reinforced coolant pump 23l/min / connection piece for oil mist separator

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum turning diameter: 450 mm
- - Spindle distance: 1020 mm
- - Turning length: vdi 40-700mm vdi 30-710mm
- - 12-fold star turret (lower slide z3)
- - Reinforced coolant pump (23 l/min)
- - Connection piece for oil mist separator
- - Optional: breuning muk 10012-iii (2018) short bar feeder
Qualitative Machine Benefits:
- - Precise turning operations with c-axis and spindle brake
- - High-level control and functionality with siemens 840d si operate
- - No tools or holders included with the machine / optional tools, holders, spindle reducers and numerous machine accessories available for the jaw chuck

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
