- DMG MORI CTX2500/1250 Universal Turning Centre

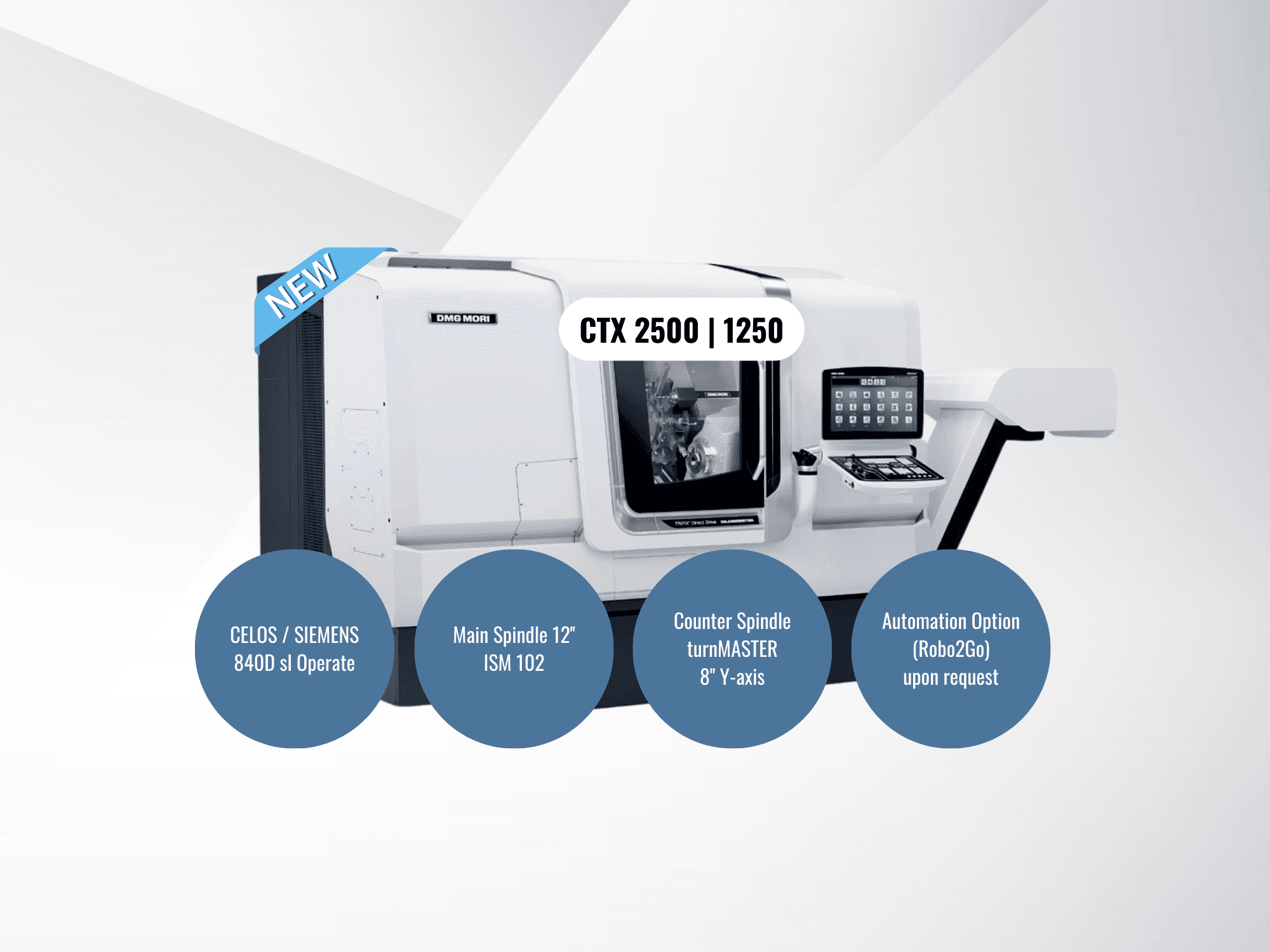

This DMG MORI CTX2500/1250 Universal Turning Centre was manufactured in 2023 and is brand new. It is available immediately in GERMANY and can be delivered right away. The machine comes with a CELOS / SIEMENS 840D sl Operate Control Unit, 12'' ISM 102 main spindle and turnMASTER 8'' Y-axis counter spindle. An automation option Robo2Go can be offered additionally upon request. See original brochure attached as PDF and video impressions of CTX2500 series in the video gallery.
Overview
- brand: DMG MORI
- year: 2023
- MODEL: CTX 2500/1250
- production hours: 0
- application type: Turning
- Location: Germany
- machine type: Lathe
- availability: Sold
- control unit brand: DMG MORI
Technical Information - DMG MORI CTX 2500/1250
Control Unit
- Brand: DMG MORI
- Model: CELOS (Siemens 840D sl Operate)
Main drive
- Tool taper: VDI40
- Number of axis: 5
Media
- Oil water separator: Yes
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Chip conveyor hinged type
- - BFU 8/80 bar frequency controlled 980l cooler
- - Mechanical oil mist extractor 1100m³/h
- - Tool measuring device for main spindle manuel, diameter 400 // Measuring System for Y-axis & for Z-axis
- - Signal lamp 4-fold coloured
- - proTIME
- - Enlarged container for sideway oil 6l
- - Fixing elements
- - Lubricating unit with electric level monitoring
- - Tool holder package Quickchange VDI40, star, WTO
Additional Information
- Technical Machine Benefits:
- - Main spindle 12 inch ism 102 // counter spindle turnmaster 8 inch y-axis
- - Dynamic two-pressure clamp, at the control main spindle & counter spindle
- - 3-jaw chuck kncs-n 400-128 make smvv // set base jaws 3 pieces 0 250/260 // set base jaws 3 pieces 9 400 // 3-jaw chuck kncs-n 225-68 make smvv
- - Tailstock function for counter spindle
- - Steady rest slide automatically positionable // quick change system for steady rest // steady rest carrier for steady rest 25-180mm // steady rest smvv k2 clamping range 25-180 mm
- - Double cartridge filter upper turret // filter element for double cartridge liner
- - Coolant supply through the main spindle & counter spindle // coolant/compressed air switchable on spindle(s) & on tool carrier // coolant spray gun
- - Minimess test point couplings for hydraulic - hydraulic filter with monitoring and pre warning - hydraulic oil ievel and temperature monitoring
- - Window rinsing or the security windows - Automatic door electrical // Electrical interface for Robo2Go // Package for tropical climate // Package for instable supply // Measure mm // Additional 8 free M-commands // Easy Tool Monitor 2.0 // DXF Reader for Siemens // Excentric turning and milling operation // Tooth system milling via gear hobbing // Alternating speed // Polygon Turning // Multi-thread cycle 2.0 // Broaching // Y-Axis Parting // autoCHUCK
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
