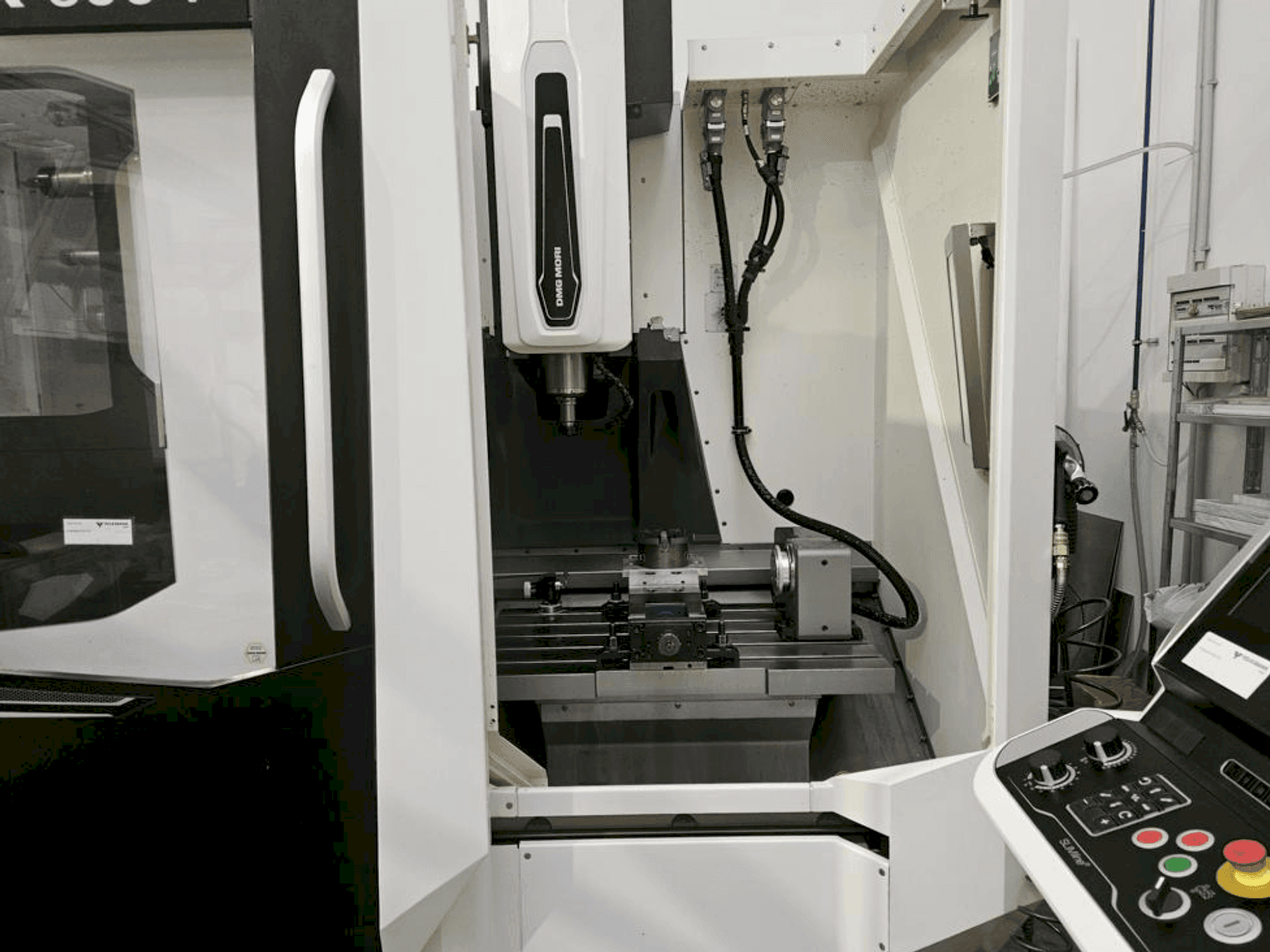

DMG MORI - CMX 600 VAT-MIL-DMG-2022-00001

Additional Equipment

• - Chip conveyor (scraper belt) // Tank capacity: 200l (left) // Chip Tray
• - Coolant spray gun
• - Signal lamp 4-color
• - Renishaw touch probe kit for SIEMENS control (PP40 touch probe with optical signal transmission)
• - Tool magazine with 30 tools with double gripper

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Nc rotary table (4th axis) lehmann with indirect measuring system
  • - Rotary table type: ea-510. L
  • - Software preparation for rotary table machining
  • - Tracyl software for machining
  • - Swivel cycle (cycle 800) // clamping torque: 800 nm // max. Speed: 80 rpm // spindle height 150 mm
  • - Rotary table for positioning along the x-axis on the right-hand side of the worktable (for siemens control system)
  • - Rapid traverse linear axis 30 m/min
  • - External coolant blowing belt switchover via m function
  • - Spindle hours: 1231h
• Qualitative Machine Benefits:
  • - Direct measurement system in x/y/z
  • - Dmg mori cad/cam system siemens nx
  • - Dmg mori connectivity pack
  • - Dmg mori planning & control - sme - pack
  • - Renishaw pp40 3d touch probe
  • - Ots measuring probe for tool measurement
  • - Calibration mandrel with tool holder
  • - Calibration ring
  • - Nc rotary table (4th axis) lehmann ea-510. L
  • - Service camera

Extra information

• - Machine will be sold WITHOUT clamping devices and tools // These systems and accessories were supplied by the factory and are fully integrated into the machine.
