DMG GILDEMEISTER ecoline CTX 510 eco V3 Lathe

Show in original language

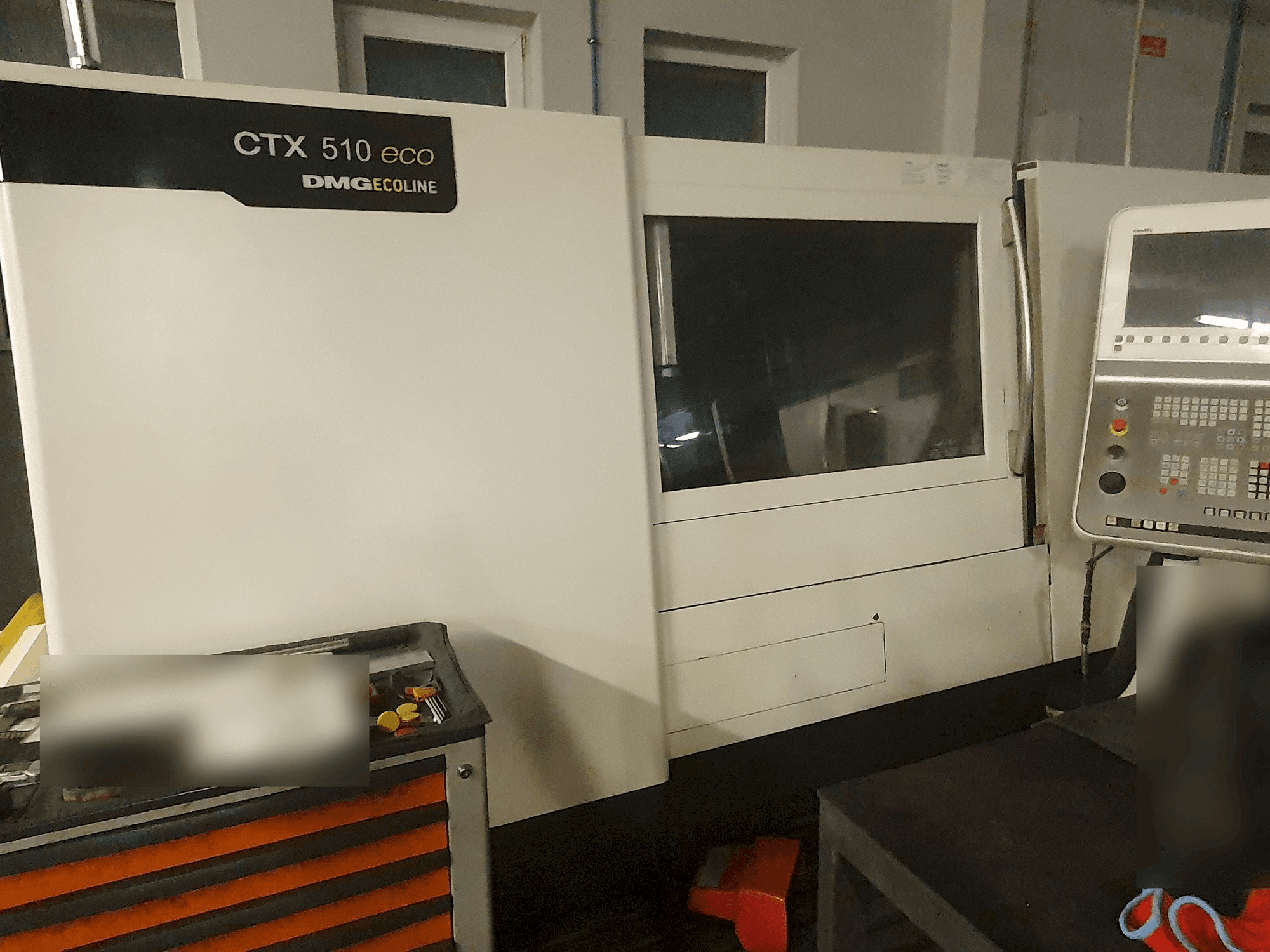

This DMG ecoline CTX 510 eco V3 Lathe was manufactured in Poland in the year 2011. It has been on for 16600 hours. This 3 axis machine is operated through a Siemens 810D ShopTurn control unit. It can work with a spindle speed up to 3250 rpm. The machine is always serviced by DMG service. Full documentation is available.

Overview

brand: DMG
year: 2011
MODEL: ecoline CTX 510 eco V3
production hours: 16600
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: Siemens

Technical Information - DMG ecoline CTX 510 eco V3

General Data

Measurements width: 5300 mm
Measurements depth: 2230 mm
Measurements height: 2010 mm
Machine weight: 7800 KG

Control Unit

Brand: Siemens
Model: 810D ShopTurn

Main drive

Spindle speed range: 3250 1/MIN
Spindle bore: 102.5 mm
Number of axis: 3

Movement

X-AXIS Movement: 300 mm
Z-AXIS Movement: 1050 mm

Turret

Number of tool slots: 12

Media

Main electronic connection: 400 V / 50-60 Hz
Power consumption: 50 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Xz + c-axis / 6 pcs driven tools
- - Max turning diameter: 465 mm
- - Max turning length: 1014 mm
- - Swing diameter: 680 mm
- - Max bar diameter: 76 mm
- - Turret head: vdi 40 din 69880
- - Max speed for driven tools: 4000 rpm
- - C-axis max. Speed: 0-100 rpm
- - C-axis torque: 420 nm
- - C-axis graduation accuracy 0. 04 grad
Qualitative Machine Benefits:
- - Range of automatic tailstock travel: 850 mm
- - Max. Axial pressure of the tailstock: 1200 dan
- - Probe included
- - Dmg smartkey
- - There are no tooling included
- - Machine in very good, working condition and ready for tests
- - Always serviced by dmg service
- - Full documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
