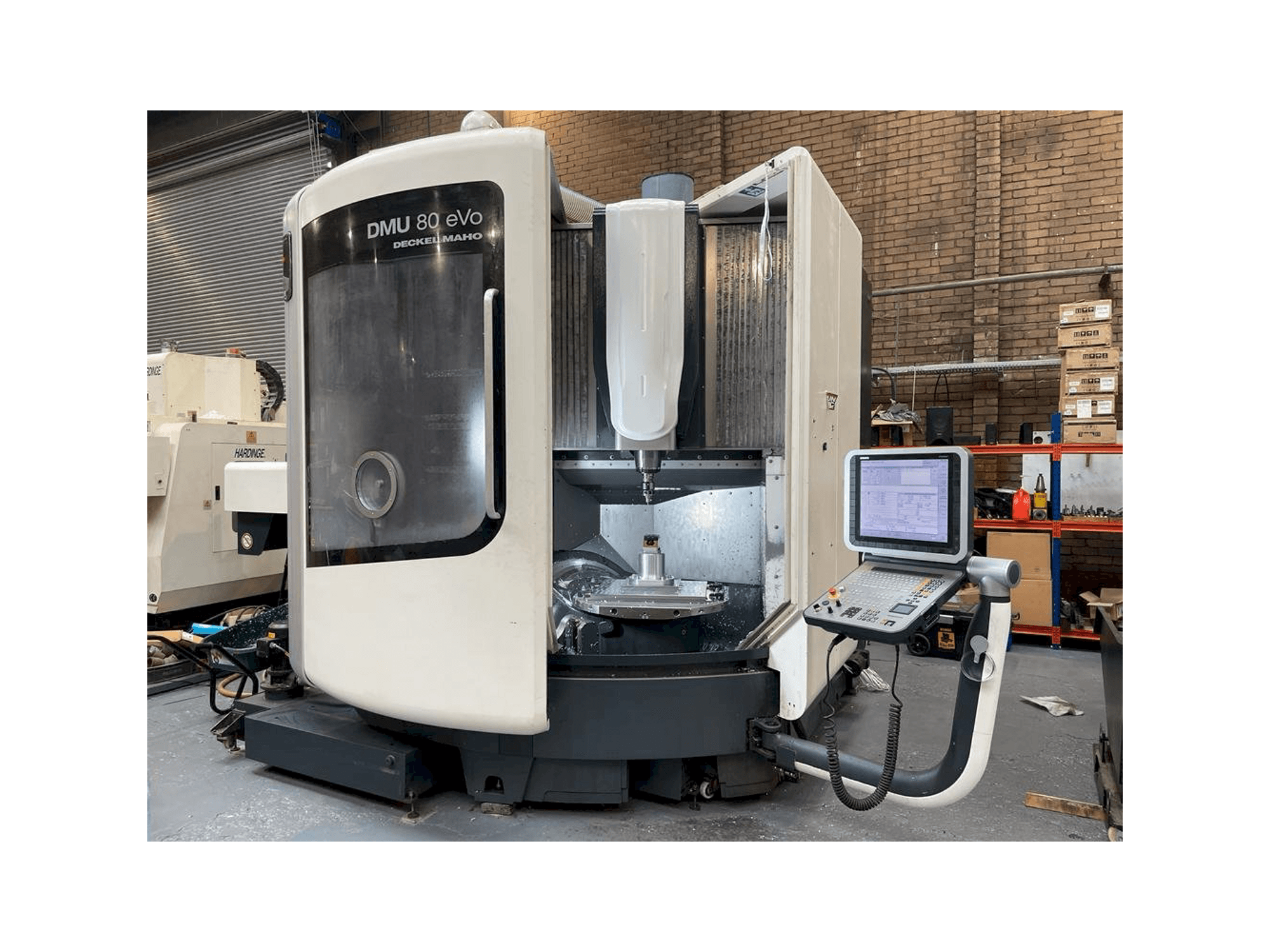

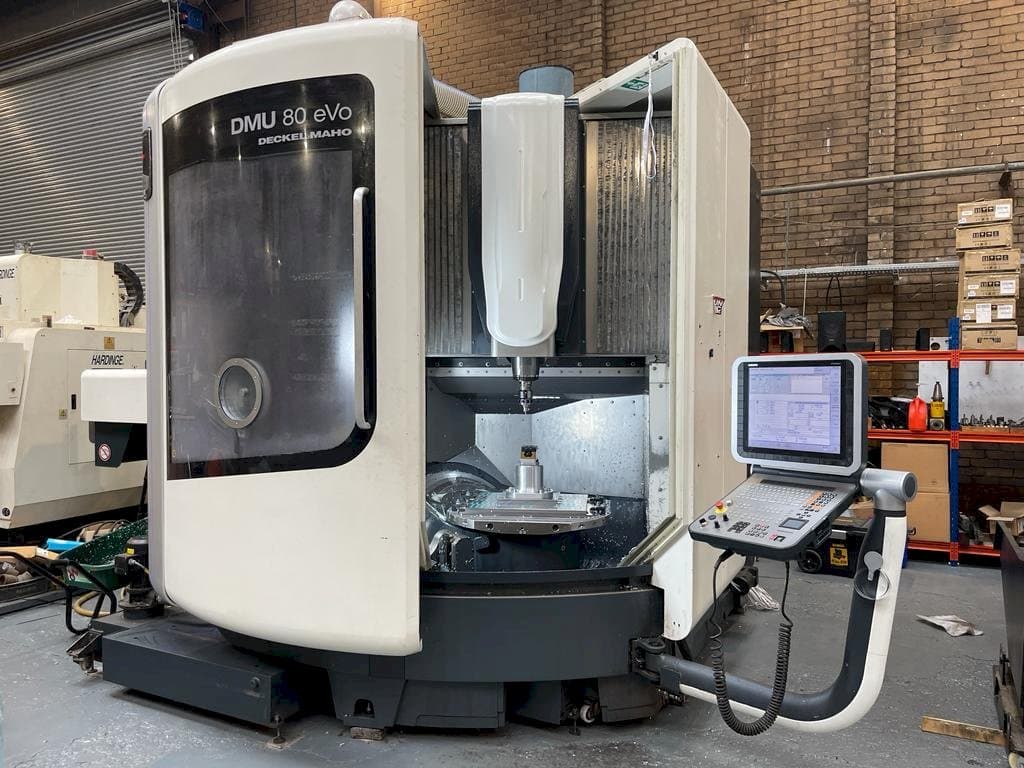

DMG DMU 80 eVo Linear Vertical Machining Center

Show in original language

This DMG DMU 80 eVo Linear Vertical Machining Center was manufactured in the year 2015 in Germany and has 43745 production hours of which 23061 are spindle hours. It is equipped with a HEIDENHAIN iTNC530 HSCI control unit and has 5 axis. The machine has a spindle speed of 18000 rpm, and is in very good condition.

Overview

brand: DMG
year: 2015
MODEL: DMU 80 eVo Linear
production hours: 43745
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG DMU 80 eVo Linear

General Data

Measurements width: 4114 mm
Measurements depth: 5151 mm
Measurements height: 2926 mm
Machine weight: 11800 kg

Control Unit

Model: iTNC530 HSCI
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Spindle motor power: 35 kw
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 550 mm

Workpiece

Workpiece drm: 830 mm
Workpiece z: 600 mm
Workpiece weight: 600 kg

Table

Outer length: 800 mm
Outer width: 700 mm

Tools

Slots in storage: 30
Type of tool holder: HSK A63

Media

Power consumption: 57 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 360. 000 degrees
- - B axis -5/+ 110 degrees
- - Rapid feedrate 80m/minute (dynamic linear option)
- - Min - max height under spindle: 150- 700 mm
- - Through spindle coolant, swarf conveyor
- - Spindle probe, tool setter
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
