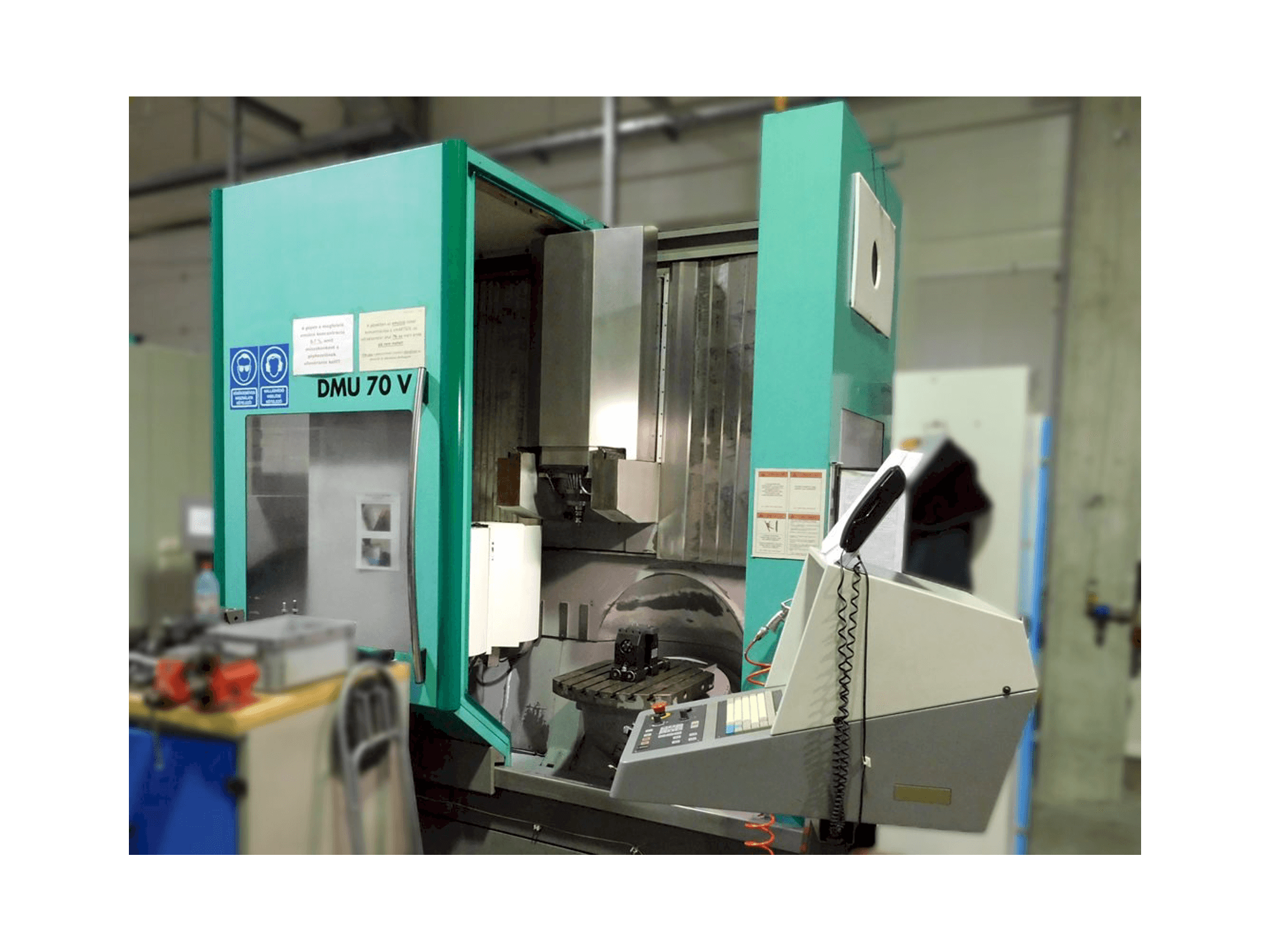

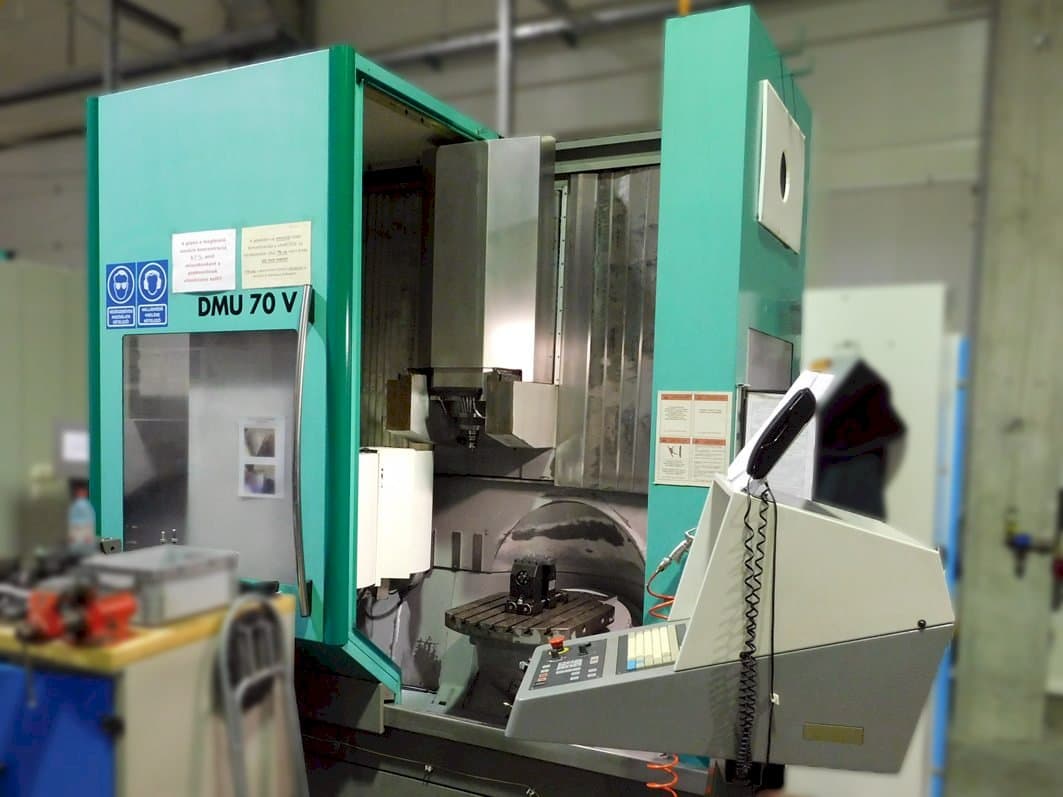

DMG DMU 70 V Milling Machine

Show in original language

This DMG DMU 70 V Milling Machine was built in Germany in the year 2000. It has been on for 83340 hours, of which 21810 are spindle power hours. It is equipped with a Heidenhain MillPlus control unit. This 5 axis machine can work with a spindle speed up to 30000 rpm. It includes chip conveyor, coolant system, hand wheel for all axes, and spindle cooler.

Overview

brand: DMG
year: 2000
MODEL: DMU 70 V
production hours: 83340
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG DMU 70 V

General Data

Measurements width: 2750 mm
Measurements depth: 2020 mm
Measurements height: 2730 mm
Machine weight: 5500 kg

Control Unit

Model: Millplus
Brand: HEIDENHAIN

Main drive

Spindle speed range: 30000 1/MIN
Spindle motor power: 20 kW
Tool taper: HSK-E50
Number of axis: 5

Movement

X-AXIS Movement: 710 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 520 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 520 mm
Z-AXIS Rapid traverse: 30 m/min

Table

Outer length: 1000 mm
Outer width: 600 mm
Height adjustment: 520 mm
Distance between: 63 mm
Table load: 350 kg

Media

Power consumption: 32 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5 axis machine with b-c axes
- - Nc rotary table
- - B – axis rotation 0-180 °
- - C - axis rotaion 0-360 °

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
