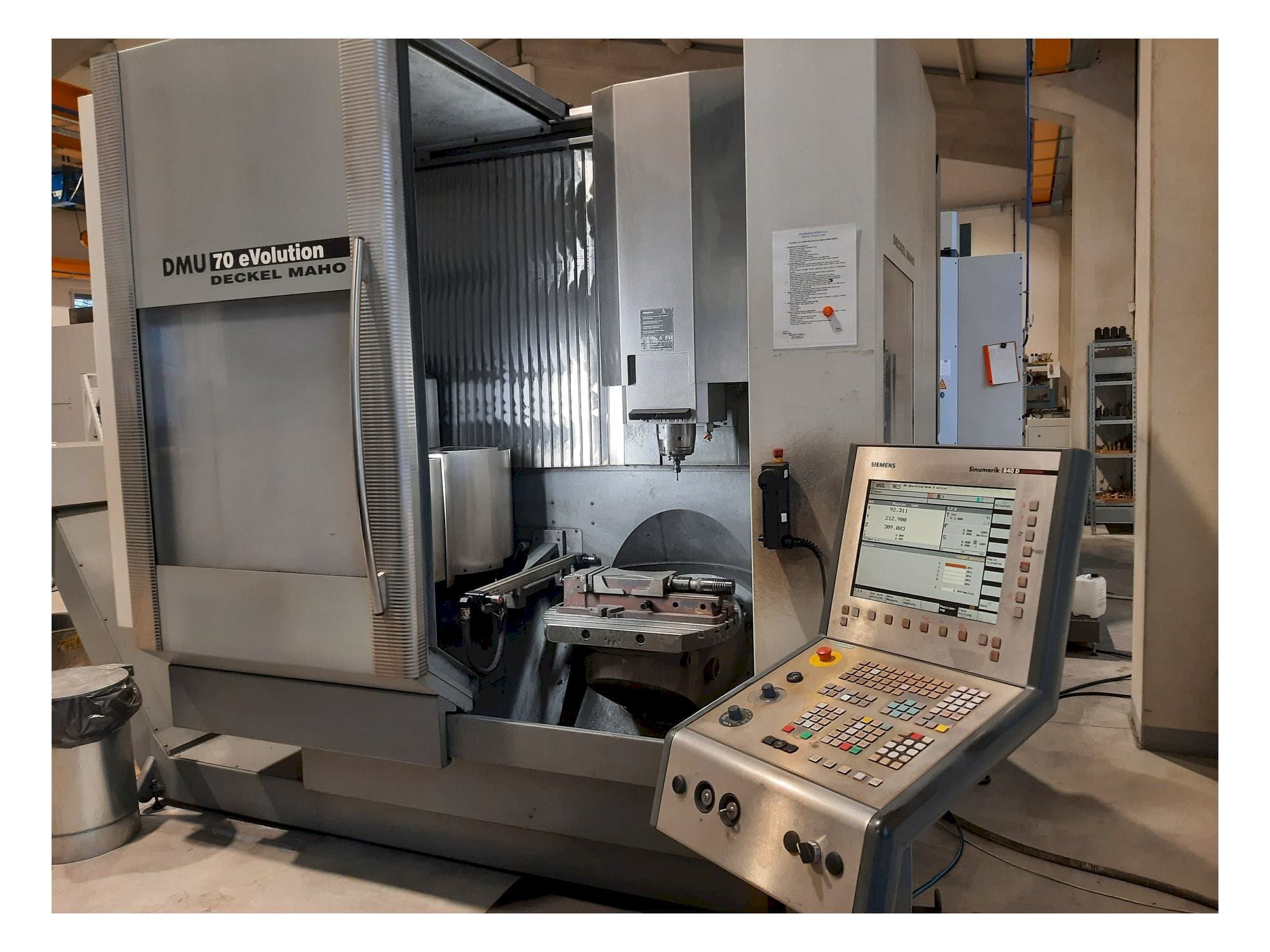

DMG DMU 70 eVolution Horizontal Machining center

Show in original language

This DMG DMU 70 eVolution Horizontal Machining center was made in 2004 and has 14040 working hours. It is equipped with a SIEMENS Sinumerik 840 D control unit and has 5 axis. The machine has a spindle speed of 20-18000 rpm.

Overview

brand: DMG
year: 2004
MODEL: DMU 70 eVolution
production hours: 14040
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG DMU 70 eVolution

General Data

Measurements width: 2550 mm
Measurements depth: 3900 mm
Measurements height: 2900 mm
Machine weight: 8600 kg

Control Unit

Model: Sinumerik 840d
Brand: SIEMENS

Main drive

Spindle speed range: 20-18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 750 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 520 mm

Table

Outer length: 700 mm
Outer width: 500 mm
Table load: 350 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle taper sk 40
- - Drive capacity - spindle motor 35 kw
- - Feed range 80. 000 / 50. 000 mm/min
- - Rapid traverse 80 / 50 m/min
- - Tool change unit 30 pos.
- - Chip conveyor
- - Chip conveyor 3400 x 1300 x 1600 mm
- - Electronic handwheel
- - Laser renishaw
Qualitative Machine Benefits:
- - Machine documents
- - The machine also comes with a measuring watch for calibrating workpieces, two vices.
- - The computer was replaced 3 months ago and still has 20 months of warranty.
- - It has an upgraded air conditioning hood for cooling the electronics.
- - The machine can be tested.
- - Mainly used for the production of electrodes and smaller workpieces - for fine processing

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
